Summary of Contents for Sea Ray 250 Select EX

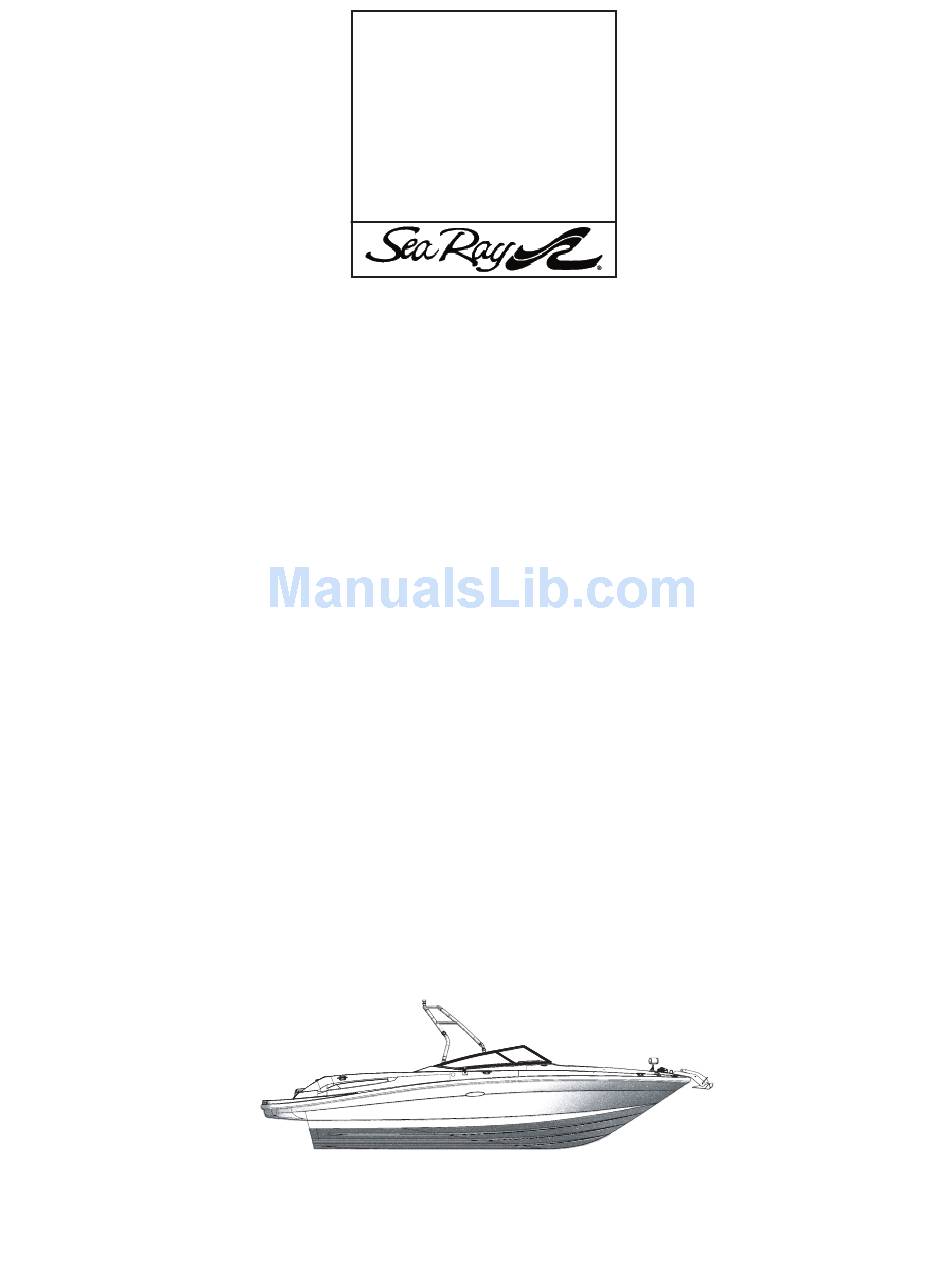

  • Page 1 Sea Ray Owner’s Manual 250 Select EX Owner’s Manual Part Number: MRP 1815873...
  • Page 3 Sea Ray, gives you important information on all engine control and steering system. Throughout the the features of your Sea Ray. For years of trouble- Owner’s Manual you will be referred to information free boating take the time to carefully review the provided by manufacturers of specifi...
  • Page 4 THIS PAGE LEFT INTENTIONALLY BLANK 250 Select EX...

  • Page 5: Ntroduction

    Contact state boating authorities or any marine dealer for registration requirements. 250 Select EX...

  • Page 6: Dealer Responsibilities

    These NUMBER are included with your Owner’s Manual Packet. Locate and read the individual warranties; then put them together for easy future reference. The Sea ® warranty is on the warranty information sheet in your packet. 250 Select EX...

  • Page 7: Manufacturer's Certifi Cation

    When your boat needs service, parts or repair, take Boat Safety Act of 1971. The Act is promulgated by it to an authorized Sea Ray® dealer. To fi nd a dealer the United States Coast Guard who has authority to...

  • Page 8: About Your Limited Warranty

    Thank you for your decision to buy a Sea Ray. The Sea Ray Limited Warranty is subject to change at any time at Sea Ray’s discretion. The information contained herein is general information about the Limited Warranty for the owner’s general knowledge, but does not alter or amend the terms of the Limited Warranty.

  • Page 9: Table Of Contents

    E. Propeller Removal and Installation ....4.5 20. Nautical Terms ..........1.15 3. Underwater Gear ..........4.6 21. Key to Symbols on Controls and Prints .... 1.16 4. Bilge Layout ............4.8 22. Warning Label Locations ......... 1.17 250 Select EX...
  • Page 10 3. Gray Water System (Option) ......... 7.4 4. Head System ............7.4 A. Requirements for Operators ......7.5 B. Portable Head with Pump-Out ....... 7.5 C. VacuFlush® Head (Option) ......7.5 D. Holding Tank Operation ........7.5 E. Vent Filter ............7.6 viii 250 Select EX...
  • Page 11 9. Canvas and Clear Vinyl ......... 9.3 10. Exterior Upholstery Fabric ........9.4 Information in this publication is based upon the latest product specifi cations available at printing. Sea Ray ® Boats, Inc. reserves the right to make changes at any time, without notice, in the colors, equipment, specifi cations, materials and prices of all models, or to discontinue models.
  • Page 12 THIS PAGE LEFT INTENTIONALLY BLANK 250 Select EX...

  • Page 13: Section 1 • Safety

    • Being aware of your passengers’ safety at all Replacement safety labels can be obtained times; and by calling your dealer or Sea Ray at 1-800- SRBOATS (International 1-314-216-3333). • Reducing speed when there is limited visibility, rough water, nearby people in the water, boats, or structures.

  • Page 14: Legally Mandated Minimum Required Equipment

    Fumes from engine, generators, and other equipment container in a dry location. and appliances using burning fuel contain carbon monoxide. Other: Your Sea Ray is equipped with the required Carbon Monoxide can kill you. navigation lights, engine exhaust and ventilation systems.
  • Page 15 BLOCKING HULL EXHAUSTS. OPERATING AT SLOW OPERATING ENGINE AND/OR GENERATOR IN SPEED OR DEAD IN THE WATER. CONFINED SPACES. LLUSTRATION LLUSTRATION USING CANVAS CURTAINS. OPERATING WITH THE BOW HIGH. LLUSTRATION LLUSTRATION WINDS BLOWING EXHAUST TOWARD GOOD VENTILATION. BOAT OCCUPANTS. LLUSTRATION LLUSTRATION 250 Select EX...

  • Page 16: Lifesaving Equipment

    . 1.4.3) Flotation Aid (Type III) – vest is designed so conscious wearers can turn face up; often de signed for comfort while engaged in sports such as skiing. 250 Select EX...

  • Page 17: Additional Recommended Equipment For Safe Operation

    - Socket set (metric or U.S. Standard as international loading standards for maximum appropriate) number of passengers plus cargo weight. - Electrical tape and duct tape - Hammer - Utility Knife 250 Select EX...

  • Page 18: International

    Passengers can fall overboard if not seated properly It is advisable to carry an extra propeller aboard in on the seats provided. case you damage the one in use. 250 Select EX...

  • Page 19: Stability

    You are responsible for damage or thrown about the boat. caused by your wake. 250 Select EX...

  • Page 20: Weather

    THE WEATHER TURNS BAD rod placed high enough over the deck to provide Your 250 Select EX is Design Category C. a protective umbrella over the hull. Depending upon the likelihood of your being in a lightning The wind speed and wave height specifi...

  • Page 21: Chart Your Course

    fi nd yourself in the vicinity of or engaging in water skiing activity. • Anyone who water skis must know how to swim. 250 Select EX...

  • Page 22: Diving

    TURN LEFT STOP • Keep the boat and skier away from navigation markers. • Stay well clear of other boats and skiers. GO FASTER GO SLOWER OK AFTER FALL SKIER IN WATER CUT MOTOR BACK TO DOCK 1.10 250 Select EX...

  • Page 23: Emergency Situations

    Stop or slow the boat and circle toward the victim. • Signal for help. • Try to approach heading into the wind or into • Grab distress signals and survival gear. Put on the waves. PFDs. Prepare to abandon ship. 1.11 250 Select EX...

  • Page 24: Flooding, Swamping And Capsizing

    Contact a state enforcement agency or the nearest Coast Guard offi ce. If you are boating outside of U.S. waters, consult the nation you are visiting for accident reporting requirements. 1.12 250 Select EX...

  • Page 25: Safety Hot Lines

    Never Further information concerning these requirements pump contaminated bilge discharge overboard. ® may be obtained from Sea Ray Customer Service: Help protect your waters. 1-800-SRBOATS. Fill tank(s) less than rated capacity. Allow for fuel expansion.

  • Page 26: Waste Disposal

    Be alert for No Wake markers. CAUTION FOR BOATS WITH VACUFLUSH ® HEADS ONLY Do not place facial tissues, paper towels or sanitary napkins in head. Such material can damage the waste disposal system and the environment. 1.14 250 Select EX...

  • Page 27: Nautical Terms

    Ground tackle – general term referring to an chors, as a result of forward motion. anchor lines, etc. Windward – toward the direction from which the Gunwale (pronounced gun’l) – meeting juncture of wind is blowing. hull and deck. 1.15 250 Select EX...

  • Page 28: Key To Symbols On Controls And Prints

    LEVER OPERAT- WITH WIDTH OF SYSTEM TRIM (THROTTLE & SHIFT) OPERATION ING DIRECTION SYMBOL) BOW DOWN LIFT POINT WARNING FIRE NO OPEN FLAME OR PROPER LIFT PROPELLER ELECTRICAL RISK NO SMOKING LOCATION OF POINT HAZARD SLING 1.16 250 Select EX...

  • Page 29: Warning Label Locations

    BOATS SOLD IN THE STATE OF CALIFORNIA IN Personal fl otation Devices (PFD’s). dizziness, or drowsiness. RUN BLOWER WHEN VESSEL IS OPERATING BELOW CRUISING SPEEDS ACCORDANCE WITH CALIFORNIA HEALTH & NW-206-05 SAFETY CODE §§ 25249.5-.13: MRP 1745122 SR-787 250 Select EX 1.17...
  • Page 30 fi sh or fi sh parts, dish- DUNNAGE, LINING AND PACKING laun dry, bath, and washbasin, wa ter, and gray water. MATERIALS THAT FLOAT and does not include drainage 12 TO 25 MILES from toilets, uri nals, hospitals, and cargo spaces. PLASTICS 250 Select EX 1.18...

  • Page 31: Section 2 • General Boat Arrangement

    Do Not use cleats for lifting. than the stern to drain the exhaust lines and to & S LEAT TERN OCATIONS . 2.1.1) BOW EYE CLEAT BOW & STERN EYE STERN CLEAT CLEAT CLEAT CLEAT STERN CLEAT CLEAT 250 Select EX...

  • Page 32: Passenger Locations

    Wear slip resistant footwear Shut off engine when persons secured to your feet and hold are in water near boat, or on on to rails or boat structure. swim platform or ladder. 250 Select EX...
  • Page 33 (C)36” (91.4 cm) KEEL (A) 26’ 6” (8.08 m) 8’ 6” (2.59 m) 250 SELECT EX SPECIFICATIONS HEIGHT DIMENSIONS (A) Overall Length (D) Keel to Top of Stern Light* .....10ft. 7½in. 3.24 m With Std. Swim Platform ..26ft. 6in.

  • Page 34: Deck Layout

    COCKPIT TABLE STEP BASE ENGINE HATCH/SUNPAD AFT BENCH SEAT (W/ STORAGE BELOW (W/ STORAGE BELOW) PORT & STBD ) FUEL FILL FRESH WATER FILL SWIM PLATFORM WASTE WATER PUMP OUT REMOVABLE STERN SWIM LADDER NAVIGATION/ ANCHOR LIGHT (STD) 250 Select EX...

  • Page 35: Helm, Gauge & Switch Layout

    . 2.5.1) CHART PLOTTER (OPT) SYSTEM TACH SPEEDOMETER SPOTLIGHT CONTROL (OPT) TRIM GAUGE WATER TEMPERATURE OIL PRESSURE FUEL GAUGE STEREO REMOTE STARBOARD SWITCH PANEL PORT SWITCH PANEL . 2.5.2) WITCH ANELS PORT SWITCH PANEL STARBOARD SWITCH PANEL 250 Select EX...
  • Page 36 HOLDING TANK WET BAR STARBOARD EXHAUST DRAIN PUMP DRAIN VENT (OPT) DRAIN DOCKING (OPT) LIGHT (OPT) ILGE HROUGH UTOUTS RANSOM HROUGH UTOUTS . 2.6.3) . 2.6.4) STERN EYE BOLTS (2 EACH PORT & STBD) GARBOARD DRAIN TRANSDUCER 250 Select EX...

  • Page 37: Propulsion System

    RPM, moving the boat faster in reverse. Do not shift into reverse too quickly. Wait for the following wake to dissipate. Shift/throttle controls are equipped with a “throttle only” mechanism which allows the shift mechanism 250 Select EX...

  • Page 38: Trim Tabs

    UP slightly. This will raise the bow of the boat slightly and increase speed. You will need to try small differences in the stern drive position to determine the trim position you prefer under various conditions. 250 Select EX...

  • Page 39: Trailer Switch

    Shut down engine immediately if gauges are not in normal ranges, or alarm sounds. FFECTS OF OWER . 2.9.1) Do not restart engine until problems are corrected. STERN DRIVE-DOWN STERN DRIVE - CENTERED STERN DRIVE - UP 250 Select EX...

  • Page 40: Important Gauges

    The tachometer indicates the revolutions per The compass must be readjusted by a qualifi ed minute (RPM) of the engine. (It does not indicate 2.10 250 Select EX...

  • Page 41: Navigation And Anchor Lights

    (Fig. 2.11.2): a white light that can be seen from all possible directions, i.e. 360 degrees. Read the “Federal Requirements and Safety Tips for Recreational Boats” provided in your kit. 2.11 250 Select EX...
  • Page 42 2 • G ECTION ENERAL RRANGEMENT THIS PAGE LEFT INTENTIONALLY BLANK 2.12 250 Select EX...

  • Page 43: Ection Sing Our Oat

    Use a trailer that can properly support the boat’s bilge area for visual and odor confi rmation that weight and shape. Get professional help in picking there are no fuel leaks. the right trailer for your boat. 250 Select EX...

  • Page 44: Fueling The Boat

    Fuel must have room for expansion. • There must be no smoking or any fl ames within 20 feet of the boat, before, during and for at least 5 minutes after fueling is completed. 250 Select EX...

  • Page 45: Boarding

    Stow gear and equipment so that it is accessible, but everything is to be stored in places to prevent • If standing, maintain a fi rm grip on handholds. it from shifting if the boat encounters rough When walking, grasp handholds. water or weather. 250 Select EX...

  • Page 46: Starting The Engine

    Section 8 and in the engine COLD ENGINE - Press manual. THROTTLE ONLY button and move shift/throttle lever forward to full open throttle, then return to about 1/4 250 Select EX...

  • Page 47: Shifting To Drive The Boat

    IF ENGINE TEMPERATURE ˚F ˚C G O E S A B OV E N O R M A L RANGE SHUT DOWN THE ENGINE IMMEDIATELY. GET TRAINED HELP TO FIND AND FIX THE PROBLEM. 250 Select EX...

  • Page 48: Stopping The Engine

    FLUID HERE RETURN INSPECTED AT LEAST TWICE A YEAR BY LINE POWER STEERING YOUR SEA RAY DEALER. See Section 8 of this PUMP manual for inspection, service and maintenance recommendations. HELM STEERING RACK The power steering pump (Fig. 3.6.4) fl uid level MUST be checked every time prior to using the boat.

  • Page 49: Bilge

    2. Reach inside and feel immediately aft and DRAIN outboard and fi nd the pin. URETHANE 3. Pull pin from actuator ram. CAULK DRAIN PLUG 4. Manually lift the hatch. Prop up hatch with a 2x4 or similar object. 250 Select EX...

  • Page 50: Bilge Pump

    (see Fig. 6.3.2) to ensure they have not blown. LOCK TAB Remove the motor module to see if the impeller FLOAT SWITCH rotates with the power on. KNOB TO MANUALLY TEST FLOAT SWITCH AND PUMP 250 Select EX...

  • Page 51: Bilge Blower

    Do not allow obstructions to interfere with bilge blower Check bilge and engine com part ment for fumes. or ventilation intake operation. Engine performance may be adversely affected. LOWER OCATION AND OUTING . 4.3.1) EXHAUST VENT BLOWER INTAKE VENT 250 Select EX...

  • Page 52: Engine And Stern Drive

    NOT operate at full throttle when using the lower the stern drive can cushion impact and lessen pitch propeller but not pulling skiers. damage from head-on impacts to the stern drive from underwater objects BUT ONLY when the boat 250 Select EX...

  • Page 53: Propeller Removal And Installation

    1. Shut off engine, remove key, shift into neutral and put tape over ignition switch key slot. WOOD BLOCK ROPELLER . 4.5.2) SECURING TABS 2. Straighten the bent securing tabs on the propeller nut retainer (Fig. 4.5.2). 250 Select EX...

  • Page 54: Underwater Gear

    100% effi cient. No 12-inch pitch blade PROPELLER will, in a single ro ta tion, advance a boat 12 inches. FRONT THRUST HUB This variance is re ferred to as slippage. FRONT FRONT PROPELLER PROPELLER SHAFT ANODE 250 Select EX...
  • Page 55 Cavitation is a normal occurrence in modern sport boats, and propeller inspection should be part of OP TI MUM PER FOR MANCE CAVITATION routine maintenance. 250 Select EX...

  • Page 56: Bilge Layout

    POWER TRIM PUMP FRESH WATER TANK BILGE PUMP FRESH WATER PUMP AUTOMATIC FIRE EXTINGUISHER (OPT) FUEL TANK HOLDING TANK VENT FILTER (OPT) BATTERIES BILGE BLOWER TRANSDUCER WASTE WATER HOLDING TANK (OPT) TRIM TABS PUMP BILGE FLOAT SWITCH 250 Select EX...

  • Page 57: Section 5 • Fuel System

    Take time to read all the fuel fumes are not present in the engine compartment related information in the Owner’s Manual. or elsewhere in the boat. The 250 Select EX standard gasoline fuel system A. E LECTRIC ALVE...

  • Page 58: Fueling Precautions

    Close all ports, windows, doors, and hatches. • Fueling should never be done at night except in well-lighted areas. • Always keep the fuel nozzle in contact with the fuel fi ll plate or the edge of the fuel tank opening 250 Select EX...

  • Page 59: Before And During Fueling Checklist

    • Fuel nozzle – in contact with fi ller pipe to prevent static sparks. • Fill level – fi ll less than rated capacity of tank; allow for fuel expansion. • Trim – fuel weight distributed equally. 250 Select EX...
  • Page 60 5 • F ECTION YSTEM THIS PAGE LEFT INTENTIONALLY BLANK 250 Select EX...

  • Page 61: Section 6 • Electrical System

    (See Fig. 6.2.1). To replace the RECOMMENDED BATTERY: cables, fi rst replace the positive cable, then the DOUGLAS BATTERY TYPE: 31DCM, ITEM NUMBER: 989 OR EQUIVALENT DIMENSIONS: 13” x 6 ” x 10 ” negative. 250 Select EX...

  • Page 62: Battery Switch

    USE jumper cables in the engine compartment. The engine compartment may accumulate dangerous GUEST explosive gasoline fumes/vapors and hydrogen gas BATTERY SWITCH LOCATED from batteries being charged. A spark produced UNDER PORT AFT SEAT CUSHION when connecting a jumper cable can cause an explosion. 250 Select EX...

  • Page 63: Fuses

    WARNING Use of higher amperage fuses or breakers is a fi re hazard. Use fuses and breakers having the same amperage rating as the original or as specifi ed. FWD SUMP BILGE PUMP STEREO AMP PUMP (OPT) 250 Select EX...

  • Page 64: Volt Accessory Receptacle

    120 Volt / 60 Hz Wiring (Standard System) CAUTION Never operate 120V shore power at less than 110 V. The 120 volt wiring installed on Sea Ray ® boats consists of three (3) color-coded wires. The black 5.

  • Page 65: Main Distribution Panel(With Shore Power Option)

    . 6.5.2) ISTRIBUTION ANEL ® The 220 volt / 50Hz wiring installed on Sea Ray boats consists of three (3) color-coded wires. The 120 VAC brown wire is the “hot” feed, light blue is the common, or neutral, and the green wire is the ground. All...

  • Page 66: Shore Power (Optional)

    120 Volt or 220 Volt Main Distribution Panel AC VOLTS (MDP): B. POWER Light ON. REVERSE POLARITY Light OFF. (If reversed polarity light is on do not turn on breakers, turn OFF MAIN and DOCK break ers. Disconnect power cords. Consult dockmaster.) 250 Select EX...

  • Page 67: Maintenance For Shore Power Cable And Shore Power Inlet

    fi eld. to resist corrosion. In salt water environment, life of the product can be increased by periodically wiping the exposed parts with fresh water, drying and spraying with a moisture repellent. 250 Select EX...

  • Page 68: Ground Fault Interrupter Receptacle (Gfi) (Optional)

    The GFI receptacle does not protect against short ATTERY HARGER ONVERTER circuits or overloads. This is the function of the . 6.8.1) circuit breaker. BATTERY GFI O CHARGER / CONVERTER UTLET . 6.8.2) 250 Select EX...

  • Page 69: Electrolytic Corrosion And Zinc Anodes

    If your boat is equipped with DO NOT PAINT BETWEEN THE ZINC AND THE trim tabs, zinc plates are installed on each of the METAL IT CONTACTS, AND DO NOT PAINT OVER trim tabs. THE ZINC. 250 Select EX...

  • Page 70: Marine Electronic Cathodic Anti-Corrosion System

    SYSTEM. we recommend that you take your boat to your authorized Sea Ray ® dealer for service. Sea Ray ® The anode and reference electrode are attached to reserves the right to change or update the electrical the electrode assembly under each stern drive unit.
  • Page 71 250 S EX E ELECT LECTRICAL CHEMATICS DC W IRING IAGRAM . 6.11.1) DRAWING NO. 09-601 (1 OF 3) 6.11 250 Select EX...
  • Page 72 250 S EX E ELECT LECTRICAL CHEMATICS ONTINUED DC W IRING IAGRAM . 6.12.1) DRAWING NO. 09-601 (2 OF 3) 6.12 250 Select EX...
  • Page 73 250 S EX E ELECT LECTRICAL CHEMATICS ONTINUED DC W IRING IAGRAM . 6.13.1) DRAWING NO. 09-601 (3 OF 3) 6.13 250 Select EX...
  • Page 74 250 S EX E ELECT LECTRICAL CHEMATICS ONTINUED TEREO YSTEM IRING IAGRAM REMIER TEREO IRING IAGRAM PTIONAL . 6.14.1) . 6.14.2) DRAWING NO. 09-607 DRAWING NO. 09-608 6.14 250 Select EX...
  • Page 75 250 S EX E ELECT LECTRICAL CHEMATICS ONTINUED INDLASS IRING IAGRAM PTIONAL OWER PEAKER YSTEM IRING IAGRAM PTIONAL . 6.15.2) . 6.15.1) DRAWING NO. 09-614 DRAWING NO. 09-609 6.15 250 Select EX...
  • Page 76 250 S EX E ELECT LECTRICAL CHEMATICS ONTINUED AC S (220VAC) AC S (120VAC) YSTEM IRING IAGRAM YSTEM IRING IAGRAM . 6.16.1) . 6.16.2) DRAWING NO. 09-630 DRAWING NO. 09-632 6.16 250 Select EX...
  • Page 77 250 S EX E ELECT LECTRICAL CHEMATICS ONTINUED ™ S MART RAFT YSTEM IAGRAM . 6.17.1) DRAWING NO. 09-713 6.17 250 Select EX...
  • Page 78 250 S EX E ELECT LECTRICAL CHEMATICS ONTINUED AVMAN YSTEM IAGRAM . 6.18.1) DRAWING NO. 09-720 6.18 250 Select EX...

  • Page 79: Section 7 • Options & Accessories

    Your marine dealer may have a water treatment additive that can be used to sanitize the system. Follow the instructions provided with the additive. 250 Select EX...

  • Page 80: Water Pump And Filter

    The fi lter should be checked and cleaned once a season or when fl ow is restricted. C. W INTERIZING THE ATER YSTEM For winterizing the water system refer to Section 8, Winterization Checklist For Boats Stored on Land, E. Water System. 250 Select EX...

  • Page 81: Fresh Water Washdown

    & FLOAT SWITCH D. F RESH ATER ASHDOWN The washdown pullout sprayer is located on the starboard transom. The system uses water from the fresh water tank. The FRESH WATER PUMP breaker must be ON to operate the system. 250 Select EX...

  • Page 82: Gray Water System (Option)

    GRAY WATER/WASTE. There is a possibility of being fi ned for hav ing an operable direct overboard discharge in some wa ters. Close waste discharge seacock and re move handle or take other measures to avoid fi ne. 250 Select EX...

  • Page 83: Requirements For Operators

    DO NOT FLUSH light will also be on. ORTABLE When these lights are ON, the holding tank must be . 7.5.1) emptied before the head can be reused. FRESH WATER & CHEMICAL TANK WASTE MATERIAL TANK 250 Select EX...

  • Page 84: Vent Filter

    Note: Do not over fi ll the holding tank as this will STEREO fl ood the vent fi lter and render it useless. Filter REMOTE replacement will then be required. See Parts Manual for correct replacement fi lter. 250 Select EX...

  • Page 85: Steering Wheel Remote Controls

    Up direction button - When pressed and released selects which system gauge display to control • In radio or satellite mode - When pressed (Port Tach, Stbd Tach, Speedo). The selected and released cycles through the preset 250 Select EX...

  • Page 86: Water Sport Tower (Optional)

    • In case of fire DO NOT open engine box or com part ment. • Shut down engine and blowers. • Continuously discharge entire contents of portable fi re extinguisher through port im me di ate ly. 250 Select EX...

  • Page 87: Extinguisher Indicator Light

    ON the charge indicator light is ON. If the unit discharges, the light will go OFF. UTOMATIC XTINGUISHER NDICATOR IGHT . 7.9.2) AUTOMATIC HALON SYSTEM 1. LIGHT ON-UNIT CHARGED 2. LIGHT OFF-UNIT DISCHARGED 3. IF SYSTEM DISCHARGES. SHUT DOWN ENGINE(S), BLOWERS AND ELECTRICAL SYSTEMS 250 Select EX...

  • Page 88: Manual Fire Extinguishing System Pull Handle

    For safety and ease of installation and removal of canvas, use at least two people. Know which canvas piece(s) that you are to install or remove. 7.10 250 Select EX...

  • Page 89: Installation Tips

    • Adjustable Support Rods: Adjustable support rods are located on the Convertible and Bimini Top. There is an outside tube and an inside tube. Push in the button to adjust for longer or shorter rod lengths. 7.11 250 Select EX...
  • Page 90 REFER TO OWNER’S MANUAL PACKET FOR INSTRUCTIONS AND WARRANTY INFORMATION. ™ E ORSA XHAUST YSTEM WITCH . 7.12.1) PORT SWITCH PANEL CORSA™ EXHAUST SYSTEM SWITCH 7.12 250 Select EX...

  • Page 91: Maintenance

    Clean Owner’s Manual p. 9.3 As Needed Controls Steering Check for proper operation To be done by Sea Ray dealer every six months Power steering oil level Engine Manual • Gear Shift & Throttle Lubricate. Include all shift Engine Manual •...

  • Page 92: Summary Guide For Inspection, Service And Maintenance

    • or missing parts Anchor rope Check rope for wear • Transmission Oil Strainer Screen Clean To be done by Sea Ray dealer annually Trim Tabs Fluid Check and add as needed Trim Tab Manual • Zincs Trim Tabs Check and replace as needed...

  • Page 93: Useful Service Information

    WARRANTY REGISTRATION DATE ENGINE MAKE & MODEL SERIAL NUMBER PART NUMBER FUEL CAPACITY WATER CAPACITY KEY NUMBER, IGNITION DOOR SELLING DEALER CITY & STATE LENGTH BEAM DRAFT VERTICAL CLEARANCE ESTIMATED WEIGHT GENERATOR SERIAL # MODEL # KILOWATTS 250 Select EX...

  • Page 94: Bilge Area

    Work on electrical wiring can create shock hazards using a bilge cleaner available from your dealer or or sparks. a marine store. Always shut off battery switch, breakers and/or pull fuses before checking electrical wiring or connectors. 250 Select EX...

  • Page 95: Topside And Supplies

    • Store on wooden pallet or thick plastic in a cool • Make certain you have enough PFDs on board dry place. Do not store on concrete. for the maximum number of persons you can carry. 250 Select EX...

  • Page 96: Fitting Out After Storage

    After the cable clamps are tightened, smear the post and clamps with vaseline or grease to exclude air and acid. Do not apply grease before attaching and tightening the terminal clamps. Examine all wiring. 250 Select EX...
  • Page 97 EFERENCE HECKLIST ® As the owner/operator of a Sea Ray boat, you are responsible for the safe operation of your boat and the safety of your passengers. Always be sure that required documents, navigational equipment and Coast Guard required safety equipment is aboard and in proper working order.

  • Page 98: Quick Reference Checklist

    Do not run the engine or generator in an enclosed area, such as a closed boat house, as there is the possibility of buildup and inhaling of carbon monoxide. *If engine fails to start, refer to the Engine Owner’s Manual for further troubleshooting pro ce dures 250 Select EX...

  • Page 99: While Underway

    1. Throttle & Gearshift Control ........Bring to IDLE and NEUTRAL positions 2. Tachometer ............. Idle the engines for fi ve (5) minutes to cool down 3. Ignition ..............Turn OFF ignition key 4. Engine Operation ............ Check idle and shift. Listen for abnormal noises 250 Select EX...

  • Page 100: Securing The Boat

    6. Check ignition switch connections TARTER OTOR ESPONDS GNITION 1. Check that fuel tank is not empty 2. Check that fuel fi lter is clean 3. Check electrical connections on engine wiring harness and ignition wiring 8.10 250 Select EX...

  • Page 101: After Market Equipment Checklist

    Any safety or operational equipment added to your boat after delivery should be checked for seaworthiness and proper working condition. Use the area below to list any equipment and the proper operating condition of that equipment before getting underway. Equipment Proper Operating Condition 8.11 250 Select EX...

  • Page 102: Maintenance Log

    Follow the recommended maintenance listed on pages 1 & 2 of this section and keep a record of this and ALL maintenance performed on your boat. You might want to copy these pages before using them to have blank ones available when these are full. Date Maintenance Description Engine Hours 8.12 250 Select EX...

  • Page 103: Section 9 • Care & Refinishing

    Check all areas of the engine room for accumulated water and dry thoroughly. Water left standing may penetrate through the gelcoated surfaces and wick into the fi berglass affecting the life of the product. 250 Select EX...

  • Page 104: Stains And Scratches

    Although gelcoat and painted surfaces are resistant NOTE: There are EPA regulations re gard ing bottom to deep stains, a need for cleaning will occasionally ® paint application. Consult your Sea Ray dealer for arise. But, the use of some common cleaning agents proper application methods.

  • Page 105: Gauge And Switch Panels

    All metal components of the canvas should be rinsed Remove fi ne scratches with fi ne automotive acrylic with fresh cold water and exposed components rubbing and polishing compounds. wiped dry to maintain appearance and working order. 250 Select EX...

  • Page 106: Exterior Upholstery Fabric

    REFER TO THE OWNER'S MANUAL PACKET FOR INSTRUCTIONS AND WARRANTY INFORMATION. NOTICE Always clean spots, stains, etc., immediately. Test an unseen area of fabric before cleaning stain, to insure that cleaning material will not cause damage. 250 Select EX...
  • Page 107 Gelcoat, Care & Cleaning ......... 9.1 Gray Water System ........... 7.4 Electrical Schematics ..........6.10 Electrical System - AC ..........6.4 GFI Receptacles ..........6.8 Main Distribution Panel ........6.5 RCCB Recepatcle ..........6.9 Shore Power ............6.5 Index i 250 Select EX...
  • Page 108 See also Layout: Helm, Gauge & Switches Oil Pressure ............2.10 Trim Tabs ..............2.8 See also Layout: Helm, Gauge & Switches Owner’s Manual Packet ..........i U.S. Coast Guard (USCG) ........1.13 Upholstery ..............9.4 Index ii 250 Select EX...
  • Page 109 Water Sports ............. 1.9 Water Sport Tower ............ 7.8 Water System ............7.1 Sanitizing ............7.1 Water Temperature ..........2.10 See also Layout: Helm, Gauge & Switches Weather ..............1.8 Winterizing ............7.2, 8.5 Zinc Anodes .............. 6.9 Index iii 250 Select EX...
  • Page 110 NDEX THIS PAGE LEFT INTENTIONALLY BLANK Index iv 250 Select EX...
