Installation, Operating and Servicing
Instructions

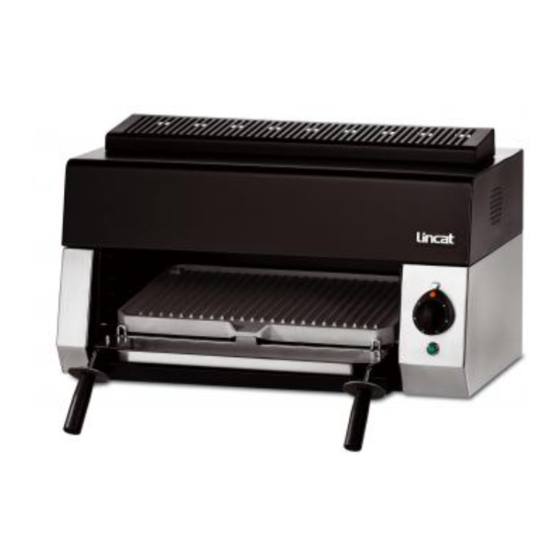

Opus 700 Electric Salamander Grill
OE7304
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 318 ECN 3607
Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Opus 700 Salamander OE7304 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lincat Opus 700 Salamander OE7304

  • Page 1 Installation, Operating and Servicing Instructions Opus 700 Electric Salamander Grill OE7304 Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 318 ECN 3607 Page 1 of 12...
  • Page 2: Table Of Contents

    WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips.
  • Page 3: Warnings And Precautions

    WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person.
  • Page 4: Installation And Commissioning

    INSTALLATION AND COMMISSIONING This appliance must be earthed. An equipotential bonding terminal is provided to allow cross bonding with other equipment. If replacing the plug connect the terminals as follows: Green and Yellow wire Earth Blue wire Neutral N Brown wire Live Install this appliance on a level surface ensuring all vents are unobstructed.
  • Page 5: Operating Instructions

    Means of isolation with at least 3mm contact separation in all poles must be incorporated into the fixed wiring of this appliance. The fixed wiring insulation must be protected by insulated sleeving having a temperature rating of at least 60 Deg C. Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57).
  • Page 6: Cleaning

    Clean all panels with warm water and mild detergent, do not use abrasive materials. Dry with a soft cloth. Stubborn deposits on the branding plate can be removed by use of a cleaner such as ‘Carbon-Off’, available from Lincat. Regularly empty and clean the drip tray. SERVICING, MAINTENANCE AND...
  • Page 7 Access to components requires removal of the hood. Remove the 2 screws on the underside of the front of the hood (Fig 3 - A). This will release the 2 retaining clips, which can be removed by pulling them into the cavity. Hinge back the hood to clear the inner flue and slide 10mm to the right to enable it to be lifted clear.
  • Page 8: Fault Finding

    Remove 2 screws in the control panel to release the energy regulator. (The control panel may be removed if required by releasing the screw at the rear of the panel and drawing sideways at the back.) Transfer the cables to the new regulator and reassemble by reversing the above procedure.
  • Page 9 OA7909 Floor stand Position floor stand and level on adjustable feet. Adjust height of stabilising brackets (Fig 4 - A). Mark and drill floor for stabilising brackets B. Fix into position. Position Salamander on top of floor stand, lining up holes in frame with pierce nuts in appliance base.
  • Page 10 Slide the appliance back until the mounting brackets hit the back face of the stand arms. Secure the brackets, fixing through the hole in the back face using 2 No.6 self- tapping screws. Drill mounting surface (hole diameter 5.0mm) to dimensions shown in Fig 5 and fix into position using 4 M4 x 20mm screws into rivenuts in the underside of the stand feet.
  • Page 11 Fix in position using 4 M8 x 16mm screws. Fig 6 IS 318 ECN 3607 Page 11 of 12...
  • Page 12: Service Information And Guarantee

    All available on serial plate Type number  Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.
