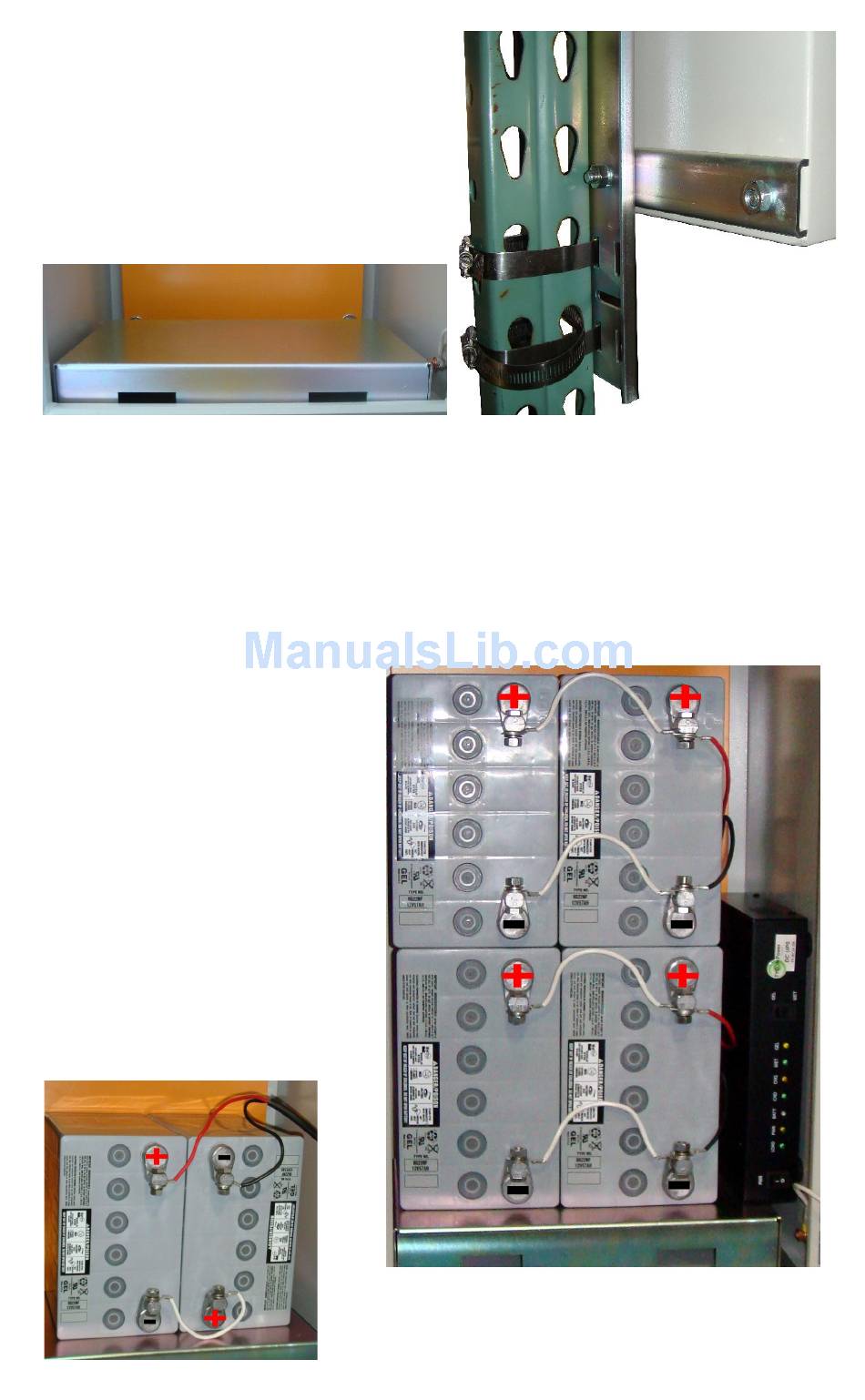

STEP 5: Insert the battery platform in
the bottom of the enclosure. The bat-
tery platform has cutouts so wires
can be routed under the battery as
needed.

STEP 6: Mount any extra equipment

that will reside inside the enclosure.
Equipment can be mounted to removable backplate or to a plate mount-
ed to the door rails.
STEP 7: Install the batteries in the enclosure. If using multiple batter-
ies, connect in parallel for 12V output or connect in series for 24V out-
put.
12V 200Ah battery configuration is shown here.
For 12V 100Ah two batteries
are connected in parallel
with Plus(+) connected to
Plus(+) and Minus(-) con-
nected to Minus(-).
For 12V 200Ah the 100Ah
configuration is doubled with
separate battery connection
wires to controller.
24V two battery and 24V
and 48V four battery con-
figurations are shown be-
low: Batteries are connect-
ed in series, with Plus(+)
connected to Minus(-).
3
