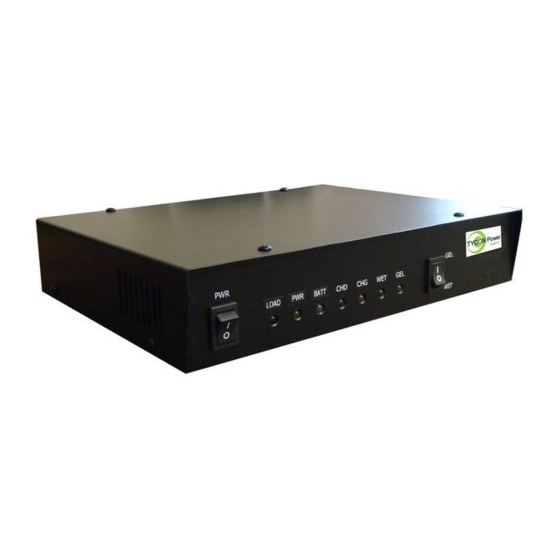

AC to DC48V UNINTERRUPTED POWER SUPPLY
Specifications and Features:
 300W Total Max.
DC power output 4A Max.
Charge current 6A Max.
 Net weight, only 4.63 lbs/2.1kg
 Dimensions 252*54*190 m/m (W*H*D)
 Over Voltage protection
 Over Current protection
 Quiet Internal Cooling Fan
 Input Voltage: Selectable AC input voltage
-115 Vac at 50/60Hz
-230 Vac at 50/60Hz
 Super Regulation:
Works with AC input from 90 to 265Vac
 Back-up Power Supply System
 Compatible with Solar and Wind Charge Controllers
TP-BC48-300

User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TP-BC48-300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tycon Power Systems TP-BC48-300

Summary of Contents for Tycon Power Systems TP-BC48-300

  • Page 1: User Manual

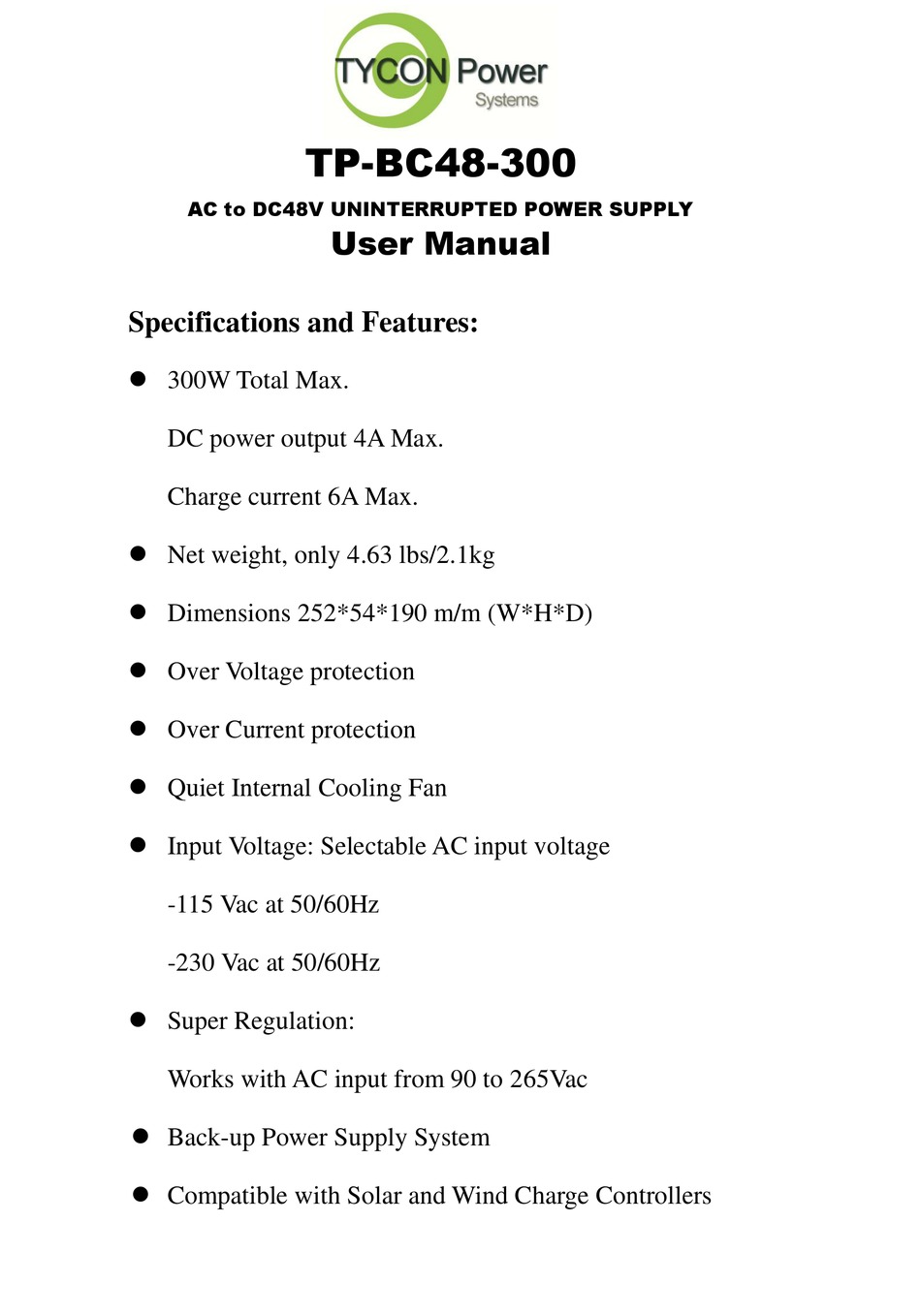

    TP-BC48-300 AC to DC48V UNINTERRUPTED POWER SUPPLY User Manual Specifications and Features:  300W Total Max. DC power output 4A Max. Charge current 6A Max.  Net weight, only 4.63 lbs/2.1kg  Dimensions 252*54*190 m/m (W*H*D)  Over Voltage protection ...
  • Page 2 PANEL DESCRIPTION Item Name Description Power Switch Control AC power On or Off, Flooded battery Battery Type Selector Gel battery LED Indicators LOAD Load Indicator Light GREEN when the LOAD is working Light YELLOW when the model with AC input and AC Power Indicator power switch is on Light GREEN when BATTERY polarity connection is...

  • Page 3: Installation

     INSTALLATION: Before plugging in the model to an AC outlet, please make sure that the proper input voltage is selected on the rear of the unit. Select 115V for 100/110/120 AC operation or 230V for 200/220/240 AC operation. The factory default setting is 230V. Then, connect your device to the LOAD terminal and connect a lead acid battery to the BATTERY terminal, make sure the polarity of battery is correctly connected, select WET for wet battery, GEL for GEL or AGM battery.
  • Page 4 If you connect a solar panel or wind turbine to the BATTERY terminal at the same time, if AC failed, when the battery voltage lower than 40V, the LOAD output will turn off, but if the output voltage of the solar panel or wind turbine is higher than the battery voltage, the battery will be charged by the solar panel or wind turbine, when the battery voltage is back to 51V, the LOAD output will recover automatically.
  • Page 5  NOTICE: 1. DON’T CONNECT THE PS TO 12V OR 24V BATTERY. The PS was designed for 48V system. Connection to the wrong battery will damage the PS. 2. THE AC SWITCH MUST BE TURNED OFF AT ANY TIME WHEN THE BATTERY IS CHANGED.
  • Page 6  PROTECTION DESCRPTION: Battery Polarity Reverse Protection: when the battery polarity is reversed, the BATT indicator light will display RED and the BATTERY and LOAD terminals will terminate output. Battery reverse will not damage the model if the AC power is off. The AC switch must be turned off at any time when the battery is changed.

This manual is also suitable for:

Tp-bc24-300
