LG L332-BN Owner's Manual page 10

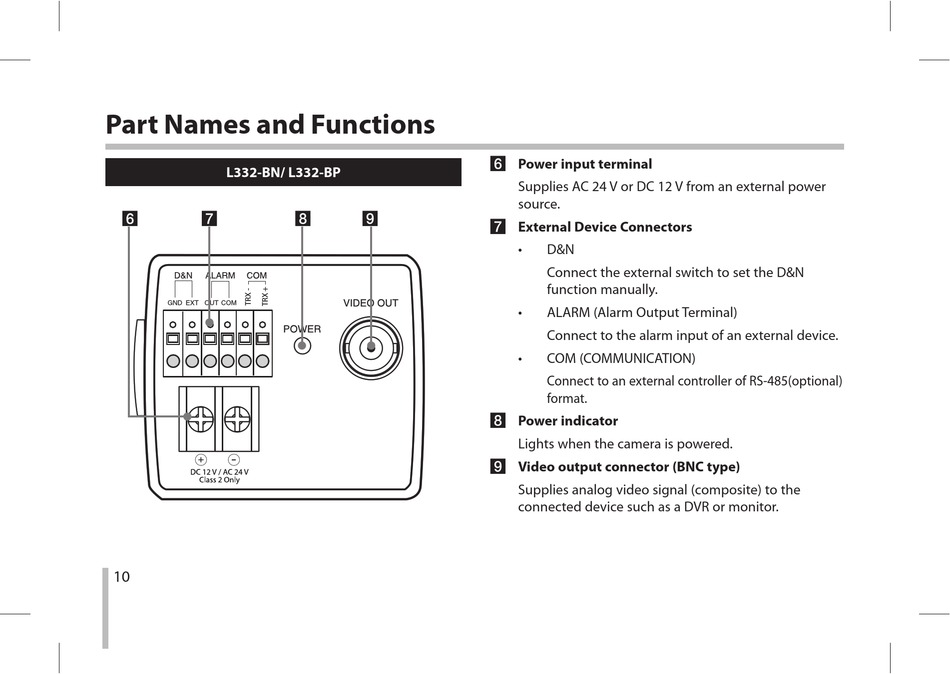

Part Names and Functions
L332-BN/ L332-BP
f g
10
h i
f Power input terminal
Supplies AC 24 V or DC 12 V from an external power
source.
g External Device Connectors
• D&N
Connect the external switch to set the D&N
function manually.
• ALARM (Alarm Output Terminal)
Connect to the alarm input of an external device.
• COM (COMMUNICATION)
Connect to an external controller of RS-485(optional)
format.
h Power indicator
Lights when the camera is powered.
i Video output connector (BNC type)
Supplies analog video signal (composite) to the
connected device such as a DVR or monitor.
