Color Video Camera

User Manual

Model:
LS521N-B1
LS521P-B1
LS521P-C
Before installing, operating or adjusting
this product, please read this instruction
booklet carefully and completely.

Advertisement

loading

  Related Manuals for LG LS521N-B1

  Summary of Contents for LG LS521N-B1

  • Page 1: User Manual

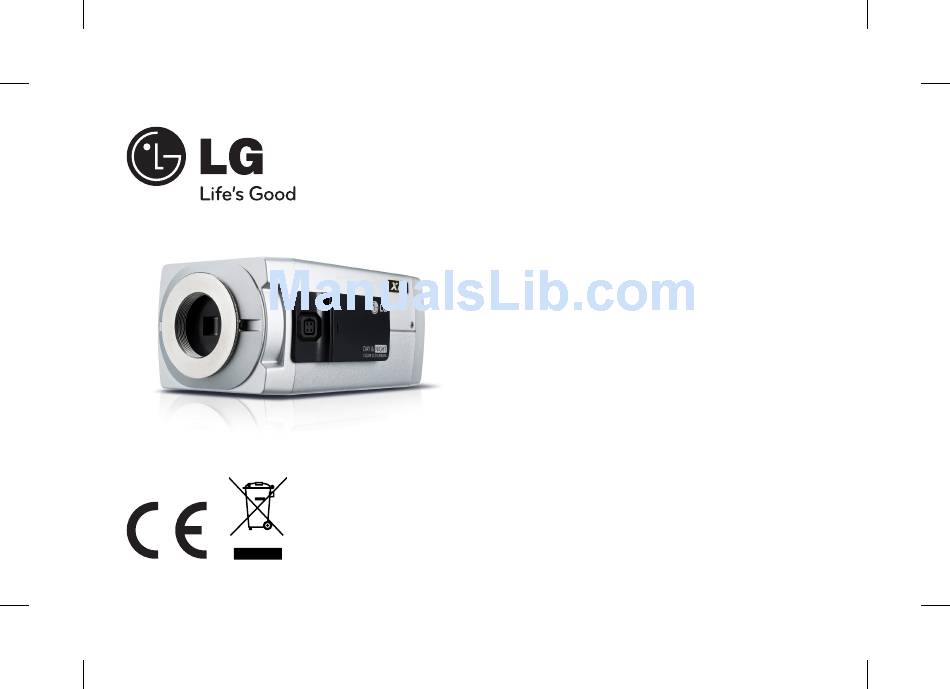

    Color Video Camera User Manual Model: LS521N-B1 LS521P-B1 LS521P-C Before installing, operating or adjusting this product, please read this instruction booklet carefully and completely.
  • Page 2 FCC WARNING: This equipment may generate or use radio CAUTION frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction RISK OF ELECTRIC SHOCK manual. The user could lose the authority to operate this DO NOT OPEN equipment if an unauthorized change or modification is made.
  • Page 3 Caution: This installation should be made by a qualified • Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent service person and should conform to all local codes. type recommended by the manufacturer. Dispose Caution: To avoid electrical shock, do not open the cabi- of used batteries according to the manufacturer’s net.
  • Page 4 When this crossed-out wheeled bin symbol is attached to a product it means European representative : the product is covered by the European LG Electronics Service Europe B.V. Directive 00/96/EC. Veluwezoom 15, 17 AE Almere, All electrical and electronic products...
  • Page 5: Important Safety Instructions

    Important Safety Instructions Read these instructions. and the point where they exit from the apparatus. Keep these instructions. 11. Only use attachments/accessories specified by the manufacturer. Heed all warnings. 1. Use only with the cart, stand, tripod, bracket, or table Follow all instructions.
  • Page 6: Cautions For Safe Operation

    Cautions for Safe Operation Power Supply use a cloth dampened with a small quantity of neutral detergent then wipe dry. LS521P-B1/LS521N-B1: • Avoid the use of volatile solvents such as thinners, alcohol, benzene and insecticides. This camera must always be operated a AC V or DC 1V They may damage the surface finish and/or impair the Certified/Listed, class  power supply only.
  • Page 7: Table Of Contents

    Contents Features ..............8 Camera Identification Settings ........ Exposure Settings ............ Part Names and Functions ........9 White Balance settings ..........7 Day/Night Setting ............8 Connections ............12 Motion Detection Setting ..........9 D-DNR Setting .............0 Precautions ..............1 Privacy Setting ...............1 Connection Overview ..........1 Special Menu Settings.......... Connecting Display device........1 Connecting Power Source .........1...
  • Page 8: Features

    Features This Color Video Camera is designed for installation in an video surveillance system. This manual contains instructions on how to install and manage the Color Video Camera in your video surveillance system. Should you require any technical assistance, please contact authorized service center.
  • Page 9: Part Names And Functions

    Part Names and Functions c Camera installation bracket a b c d e f The bracket can be fixed at the top or bottom of the camera. d Lens iris output connector (LENS) This - pin connector is used to send the Iris control signal and power supply to an auto-iris type lens.
  • Page 10 Part Names and Functions g Power input terminal LS521N-B1 / LS521P-B1 Supplies AC V or DC 1V from an external power source. g h i h GND i Power indicator Lights when the camera is powered. j Video output connector (BNC type) Supplies analog video signal (composite) to the connected device such as a DVR or monitor.
  • Page 11 Part Names and Functions g Power input cable (AC 230V) LS521P-C h GND i Power indicator g h i Lights when the camera is powered. j Video output connector (BNC type) Supplies analog video signal (composite) to the connected device such as a DVR or monitor.
  • Page 12: Connections

    Be sure to switch off the unit before installation and connection. • A qualified service person, complying with all applicable codes, should perform all required hardware installation. • Do not expose the power and connection cable to moisture, which may cause damage to the unit. Connection Overview LS521P-B1/LS521N-B1 LS521P-C...
  • Page 13: Connecting Display Device

    Connections Connecting Display device Connecting Power Source The video signal connection between the camera and the LS521P-B1/LS521N-B1 monitor. Connect power, using the method listed below: Remove the insulation on the power cable as illustrated. (a) Attach the terminal tips. (b) Connect to the DC 1 V / AC  V UL Listed, Class  Power Supply only on the unit.
  • Page 14: Mounting The Lens

    Connections Mounting the Lens LS521P-C Insert the plug of the power cord into a wall outlet. The Remove the lens mount cap from the camera. POWER indicator will light. Install the auto-iris lens. -1. CS mount type lens Carefully align the lens mount with the camera opening, then turn the lens slowly to install it.
  • Page 15 Connections lens iris output connector Pin layout for the lens iris output connector. DC type lenses VIDEO type lenses Connect the lens plug to the lens iris output Damping - Vcc (+9V) connector (LENS) on the side of the camera. Damping + Not used When using lenses from other makers, the plug shape...
  • Page 16: Concerning Auto-Iris Lenses

    Connections Concerning Auto-Iris Lenses Rewire the lens iris plug Cut off the plug of the lens cable, cut off DC type auto-iris lens approximately 8mm of the insulation, and then strip approximately mm of the ends of the cable A lens without driver circuit that operates only on a DC sheaths.
  • Page 17: Flange-Back Adjustment

    Connections Flange-back Adjustment VIDEO type auto-iris lens A lens with amplifier circuit that operates on video sig- The adjustment is required only when a lens without focus- nal and DC power source. In general, this type of lens adjusting mechanism is mounted, or when a lens with is referred to as EE amplifier type lens.
  • Page 18: Mounting The Camera

    Connections Note: If using a camera mounting bracket, select a location that is strong enough to bear the full weight of the camera and the mounting bracket for long periods, and install the camera and mounting bracket securely. Tighten the flange-back fixing screws. Note: The object may be out of focus when using a source of near-infrared light than using the visible light.
  • Page 19: Menu Operation

    Menu Operation OSD Menu control buttons BUTTON Description This camera utilizes an on-screen user MENU. To set items Used to move upper direction on the on the menu, use the following buttons. menu screen. Use this button to select an item or adjust the parameters. UP button Used to move lower direction on the menu screen.
  • Page 20: Osd Menu Overview

    Menu Operation OSD Menu Overview Main Menu Sub Menu Contents The following table shows the list of menu items and PUSH options. You can adapt the camera to your requirements by INDOOR, setting up the respective items in these menus. COLOR TEMP OUTDOOR WHITE BAL...
  • Page 21 Menu Operation Main Menu Sub Menu Contents Main Menu Sub Menu Contents ZONE NUMBER AREA1~ AREA ZONE STATE ON/OFF MASK NUMBER AREA1~AREA8 HEIGHT 1~100 DISPLAY ON/OFF WIDTH 16~100 MOTION DET MOVE Y 6~9 GRAY, WHITE, MOVE X 8~9 COLOR BLACK, SENSITIVITY 0~100 PRIVACY...
  • Page 22 Menu Operation Main Menu Sub Menu Contents Main Menu Sub Menu Contents CAMERA REBOOT ZOOM RESET FACTORY RESET D-ZOOM EXIT RET/TOP/END TILT EXIT EXIT D-EFFECT OFF/ V-FLIP/ MIRROR/ ROTATE SHARPNESS 0~68 STABILIZER OFF/ ON SPECIAL COLOR OFF/ ON SYNC INT / LL USER TITLE OFF/ ON English...
  • Page 23: General Operation

    Menu Operation General Operation • TOP: Return to the CAMERA SETTING menu screen. Press [SET] button. • END: Exit the setup menu. The setup menu screen appears on the monitor. Camera Identification Settings You can use the camera identification (CAMERA ID) to assign a number to the camera.
  • Page 24: Exposure Settings

    Menu Operation Exposure Settings You can set the exposure options using the EXPOSURE menu. Select [EXPOSURE] option on the [CAMERA SETTING] menu. Use [LEFT] or [RIGHT] button to select a mode (ALC ELC). Select [BACKLIGHT] option. Press [SET] button and the EXPOSURE menu appears. Use [LEFT] or [RIGHT] button to select a mode then press [SET].
  • Page 25 Menu Operation Brightness setting • HSBLC: Use for masking brightness of the specific area to view the subject more clearly. The HSBLC You can increase the brightness of the darkened video. If mode is automatically activated only in low you set the brightness to lower value, the image is luminance scene.
  • Page 26 Menu Operation AGC (Automatic Gain Control) setting SHUTTER (Shutter Speed) setting If the images are too dark, change the maximum [AGC] Select the desired shutter speed for camera exposure. You value to make the images brighter. can change the shutter speed to higher speed to capture fast-moving subjects, though the image becomes darker.
  • Page 27: White Balance Settings

    Menu Operation SENS-UP setting Note: If you set to one of the SHUTTER options except AUTO on If pictures are not clear due to darkness, this SENS-UP the [SHUTTER] menu or [AGC] to [OFF], the [SENS-UP] set- operation would increase the sensitivity of picture. ting is not available and [---] mark is displayed.
  • Page 28: Day/Night Setting

    Menu Operation Select [WHITE BAL] option. INDOOR: The color temperature range for the proper white balance is Use [LEFT] or [RIGHT] button to select a mode then approximately ,00°K. press [SET]. OUTDOOR: The color temperature range • ATW (Auto-Tracing White Balance): The color for the proper white balance is temperature range for the proper white balance approximately 5,100°K.
  • Page 29: Motion Detection Setting

    Menu Operation Motion Detection Setting Select [DAY/NIGHT] option. Use [LEFT] or [RIGHT] button to select mode for day/ The motion detection detects the moving objects in the night function. scene by monitoring changes in brightness level. You can • AUTO: You will be able to change the Day/Night select the level of sensitivity for motion detection to  zone.
  • Page 30: D-Dnr Setting

    Menu Operation 3D-DNR Setting Use [UP] or [DOWN] to select an option then use [LEFT] or [RIGHT] button to adjust the option. • HEIGHT: Enlarge or decrease the vertical size of the mask. • WIDTH: Enlarge or decrease the horizontal size of the mask.
  • Page 31: Privacy Setting

    Menu Operation Privacy Setting WHITE or BLACK on the COLOR option. Use [UP] or [DOWN] to select an option then use This function is aiming at the protection of personal pri- [LEFT] or [RIGHT] button to adjust the option. vacy, selecting a screen part black not to be displayed in •...
  • Page 32: Special Menu Settings

    Menu Operation Special Menu Settings This menu lets you adjust and set up D-ZOOM, D-EFFECT, SHARPNESS, STABILIZER, COLOR, SYNC, USER TITLE, LANGUAGE function by yourself in the SPECIAL menu. Select [D-ZOOM] option on the [SPECIAL] menu. Use [LEFT] or [RIGHT] button to select a [ON] then press [SET] the DIGITAL ZOOM menu appears.
  • Page 33 Menu Operation Setting the D-EFFECT (Digital effect) Setting the SHARPNESS effect You can select the digital effect. The degree to which the boundary of the two portions is clearly distinguished. Select [D-EFFECT] option on the [SPECIAL] menu. Select [SHARPNESS] option on the [SPECIAL] menu. Use [LEFT] or [RIGHT] button to select a digital effect.
  • Page 34 Menu Operation Stabilizer setting Setting the COLOR effect The image stabilizer function minimizes the appearance of You can switch the displayed picture to gray scale or color. shaky images caused by low-frequency vibration. This function is useful for outdoor surveillance. Select [STABILIZER] option and set to ON or OFF.
  • Page 35 Menu Operation Setting the SYNC (Synchronization) The SYNC function is available only with AC power source. Select [SYNC] option on the [SPECIAL] menu. Use [LEFT] or [RIGHT] button to select [INT] or [LL] (Line Lock). • INT: Selects for using the internal synchronization. -1.
  • Page 36 Menu Operation press [SET]. The USER TITLE menu appears. Language Setting Select the viewer language for the camera setup menu and OSD information display. Use [UP], [DOWN], [LEFT] or [RIGHT] button to select a character or number then press [SET] button. •...
  • Page 37: Reset Settings

    Menu Operation Reset Settings • CAMERA REBOOT: To reboot the camera system. • FACTORY RESET: To reset the camera setting to factory setting, select [FACTORY RESET] option. Press [SET] button to confirm your selection. Select [RESET] option. Press [SET] button and the RESET menu appears. Use [UP] or [DOWN] to select option.
  • Page 38: Specification

    Specification ITEM LS51N-B1 LS51P-B1 LS51P-C Signal System NTSC Total/Effective Pixels 10K / 80K Pixels 70K / 0K Pixels Pick-up Device 1/” SUPER HAD CCD II Lens C/CS Mount Lens Signal Process XDI-S Synchronization System Internal / Line Lock Scanning Frequency (H) 15.7KHz 15.65KHz Scanning Frequency (V)
  • Page 39 Specification ITEM LS51N-B1 LS51P-B1 LS51P-C Iris Control DC/VIDEO Day & Night Digital Day & Night Gain Control OFF/LOW/MIDDLE/HIGH Exposure ALC/ELC Shutter Speed 1/60 ~ 1/90,000 1/50 ~ 1/90,000 White Balance ATW/ AWC PUSH /MANUAL Power Source DC 1V / ACV AC 0V Power Consumption . W...
  • Page 40 P/NO: MFL6770...
