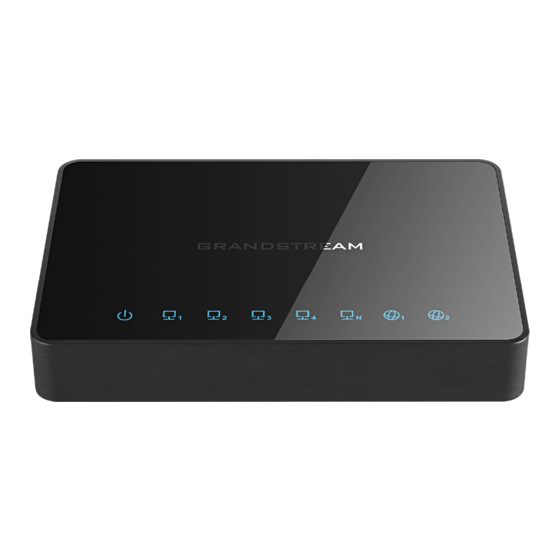

Grandstream Networks GWN7000 User Manual
Enterprise router & access point manager
Hide thumbs
Also See for GWN7000:
- User manual (155 pages) ,
- Configuration manual (23 pages) ,
- Management & provisioning (23 pages)
Related Manuals for Grandstream Networks GWN7000
Summary of Contents for Grandstream Networks GWN7000
- Page 1 Grandstream Networks, Inc. GWN7000 Enterprise Router & Access Point Manager User Manual...
- Page 2 Grandstream Networks, Inc. is not permitted. The latest electronic version of this guide is available for download here: http://www.grandstream.com/support Grandstream is a registered trademark and Grandstream logo is trademark of Grandstream Networks, Inc. in the United States, Europe and other countries. CAUTION Changes or modifications to this product not expressly approved by Grandstream, or operation of this product in any way other than as detailed by this guide, could void your manufacturer warranty.
-
Page 3: Fcc Caution
- Consult the dealer or an experienced radio/TV technician for help. CE Compliance: Hereby Grandstream declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU. P a g e GWN7000 Enterprise Router & Access Point Manager User Manual... -
Page 4: Gnu Gpl Information
GNU GPL INFORMATION GWN7000 firmware contains third-party software licensed under the GNU General Public License (GPL). Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public License (GPL) for the exact terms and conditions of the license. -
Page 5: Document Purpose
DOCUMENT PURPOSE This document describes how to configure the GWN7000 via CLI and Web GUI to fully manipulate router's features. The intended audiences of this document are Network administrators. Please visit http://www.grandstream.com/support to download the latest “GWN7000 User Manual”. This guide covers following topics:... -
Page 6: Firmware Version
CHANGE LOG This section documents significant changes from previous versions of the GWN7000 user manuals. Only major new features or major document updates are listed here. Minor updates for corrections or editing are not documented here. FIRMWARE VERSION 1.0.0.8 This is the initial version. - Page 7 User Manual, could void your manufacturer warranty. Warning: Please do not use a different power adaptor with the GWN7000 as it may cause damage to the products and void the manufacturer warranty.
-
Page 8: Product Overview
Up to 500 GWN76xx series APs Access Points Web, CLI, SNMP (pending) Management 802.3at PoE+ Power Optional Power Supply: 12V/2A Max power consumption: 16W Environmental Operation: 0°C to 40°C P a g e GWN7000 Enterprise Router & Access Point Manager User Manual... - Page 9 Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing Package Content GWN7000 Enterprise Router 12V/2A Power Adapter Quick Installation Guide GPL License FCC, CE, IC Compliance P a g e GWN7000 Enterprise Router & Access Point Manager User Manual...
-
Page 10: Installation
INSTALLATION Before deploying and configuring the GWN7000, the device needs to be properly powered up and connected to network. This section describes detailed information on installation, connection and warranty policy of the GWN7000. EQUIPMENT PACKAGING Table 2: GWN7000 Equipment Packaging... -
Page 11: Safety Compliances
2. Connect the other end of the Ethernet cable(s) into a DSL modem or router(s). 3. Connect the 12V DC power adapter into the power jack on the back of the GWN7000. Insert the main plug of the power adapter into a surge-protected power outlet. -
Page 12: Getting Started
GETTING STARTED The GWN7000 VPN Router provides an intuitive web GUI configuration interface for easy management in addition to CLI Interface via SSH to give users access to all the configurations and options for GWN7000 VPN Router setup. This section provides step-by-step instructions on how to read LED indicators, use CLI Interface and Web GUI of the GWN7000. -
Page 13: Access Web Gui
USE THE WEB GUI ACCESS WEB GUI The GWN7000 embedded Web server responds to HTTPS GET/POST requests. Embedded HTML pages allow users to configure the device through a Web browser such as Microsoft IE, Mozilla Firefox, Google Chrome and etc. -
Page 14: Web Gui Configurations
Devices: To add Access points, discover automatically and pair by one click. Clients: Shows the list of the clients connected to LAN ports of the GWN7000 and wireless clients connected to zones via GWN7610 access points. VPN: To configure VPN tunnels. - Page 15 Users can select the displayed language at the upper right of the web GUI either before or after logging in. Figure 5: GWN7000 Web GUI Language Figure 6: GWN7000 Web GUI Language P a g e GWN7000 Enterprise Router & Access Point Manager User Manual...
- Page 16 Figure 7: Save Changes Figure 8: View Changes Users need to click on that message to view changed configuration (See Figure 8), and click on "OK" button to apply changes. P a g e GWN7000 Enterprise Router & Access Point Manager User Manual...
-
Page 17: Router Configuration
Figure 9: Status Page ROUTER STATUS Beside Interface status, users can also view Device status to check MAC address, Part Number, Firmware version and Uptime for the Router. P a g e GWN7000 Enterprise Router & Access Point Manager User Manual... -
Page 18: Wan Ports
Figure 10: Router's Status WAN PORTS The GWN7000 has 2 WAN ports configured as DHCP clients by default to be connected with DSL modem or routers, Users can also set static IPv4/IPv6 address, and configure PPPoE for each WAN port. -
Page 19: Global Settings
When selected the user will have to set the PPPoE account and password, PPPoE Keep alive interval and Inter-Key Timeout in seconds. Enter the preferred DNS server address. If Preferred DNS is set, GWN7000 will Preferred DNS use it in priority. -
Page 20: User Management
LAN ports like a computer or GWN7610 access points. Please make sure that the device is configured as DHCP client so it can take an address, the GWN7000 will assign 192.168.1.x/24 address to its clients connected to its LAN ports. -
Page 21: Time And Date Settings
Figure 12: Admin and User TIME&DATE SETTINGS The GWN7000 supports configuring date and time settings format as well as configuring it with multiple NTP servers via WAN (how many ?). Connect to the GWN7000 Web GUI and go to Router->Maintenance. User can change the Date Display... -
Page 22: Configuring Ntp Server
CONFIGURING NTP SERVER Figure 13: Add an NTP server DEVICE ROLE(MASTER/SLAVE) Figure 14: Master Slave P a g e GWN7000 Enterprise Router & Access Point Manager User Manual... - Page 23 OVERVIEW Only VPN client, No Server ? VPN allows the GWN7000 to be connected to a remote VPN server using PPTP, L2TP and OpenVPN protocols, users can access VPN page from the GWN7000 Web GUI -> VPN. To add a VPN tunnel users need to click on...
- Page 24 Number of Attempts to Reconnect Set the number of attempts to reconnect to the server if it fails. If checked the tunnel will be used IPv6 addressing. Use Built-in IPv6-managment P a g e GWN7000 Enterprise Router & Access Point Manager User Manual...
-
Page 25: Upgrading And Provisioning
UPGRADING AND PROVISIONING UPGRADING FIRMWARE The GWN7000 can be upgraded to a new firmware version remotely or locally. This section describes how to upgrade your GWN7000 via network or local upload. UPGRADING VIA WEB GUI The GWN7000 can be upgraded via TFTP/HTTP/HTTPS by configuring the URL/IP Address for the TFTP/HTTP/HTTPS server and selecting a download method. -
Page 26: Provisioning And Backup
Microsoft IIS web server. PROVISIONING AND BACKUP The GWN7000 configuration can be backed up locally or via network. The backup file will be used to restore the configuration on GWN7000 when necessary. DOWNLOAD CONFIGURATION Users can download the GWN7000 configurations for restore purpose under Web GUI->Router->... -
Page 27: Configuration Server
Users can download and provision the GWN7000 by putting the config file on a TFTP/HTTP or HTTPS server, and set Config Server to the TFTP/HTTP or HTTPS server used in order for the GWN7000 to be provisioned with that config server file. - Page 28 Thank you again for purchasing Grandstream GWN7000 Enterprise Router, it will be sure to bring convenience and color to both your business and personal life P a g e GWN7000 Enterprise Router &...
- Page 29 END OF USER’S MANUAL...
