- Page 1 Instruction Manual Model 309 Digital Earth Resistance Meter 800.561.8187 information@itm.com www. .com...

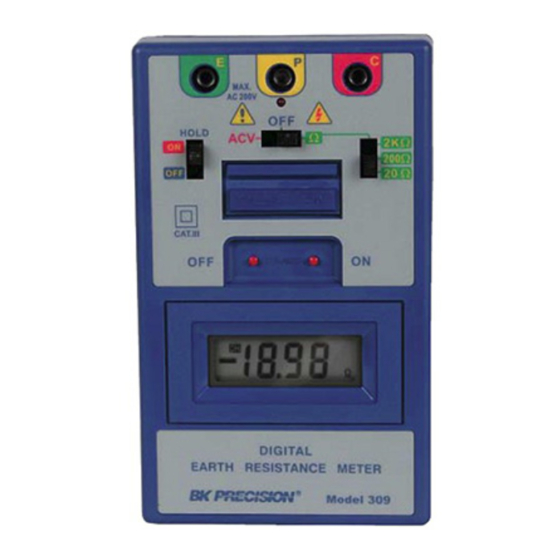

- Page 2 (10) (1) Jack For "EARTH" Lead (6) Jack For "LINE" Lead Connection Connections (2) Operation Indicator (7) Function Switch (3) Data Hold Switch (8) Ohm Range Switch (4) Timer Off Button (9) Pushbutton Operation (5) LCD Display (10)Timer On Button 800.561.8187 information@itm.com www.
- Page 3 1.INTRODUCTION NOTE This meter has been designed and tested according to IEC Publication 348, safety Requirements for Electronic Measuring Apparatus, IEC-1010 (EN 61010) and other safety standards. Follow all warnings to ensure safe operation. WARNING READ "SAFETY NOTES" ( NEXT PAGE ) BEFORE USING THE METER.
-
Page 4: Safety Notes
2.SAFETY NOTES Ÿ Read the following safety information carefully before attempting to operate or service the meter. Ÿ Use the meter only as specified in this manual. otherwise, the protection provided by this meter may be impaired. Ÿ Rated environmental conditions (1). - Page 5 3.FEATURES Ÿ Capable of measuring earth voltage. Ÿ 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test. Ÿ Battery operated. Ÿ Auto power off function. The timer operates auto- matically about 3~6 minutes when the " PUSH BUTTON SWITCH"...
-
Page 6: Specifications
4.SPECIFICATIONS Measurement system Earth resistance by constant Current inverter. 820Hz, 2mA approx. Earth voltage 0~200Vac, 40~500Hz. Earth resistance range and resolution 0~20W (0.01W). 0~200W (0.1W). 0~2000W(1W). Accuracy Earth voltage ± (1%rdg+2dgt) Earth resistance ± (2%rdg+2dgt) or ± 0.1W, which is greater. Safety standard IEC 1010-1 (EN61010-1) CAT III 200V. -
Page 7: Measuring Methods
5.MEASURING METHODS BEFORE PROCEEDING WITH MEASUREMENT, READ THE SAFETY NOTES ON PAGE 2. 1. Connection with test leads Connect green, yellow and red test leads to instru- Ment terminals E, P and C with auxiliary earth bars P1, C1 driven into earth "IN A STRAIGHT LINE". (Fig.1) 2. -
Page 8: Maintenance
6.MAINTENANCE Ÿ Battery Replacement When the symbol "B" appears on the display, replace the batteries as follows (1) Disconnect the test leads from the instrument and turn off the power. (2) Use a screwdriver to unscrew the screw on back cover then slide the cover, take out the batteries and replace with new batteries Type SUM-3. - Page 9 7.Limited One-year Warranty B&K Precision warrants to the original purchaser that its products and the component parts thereof, will be free from defects in workmanship and materials for a period of one year from date of purchase from an authorized B&K Precision distributor.
