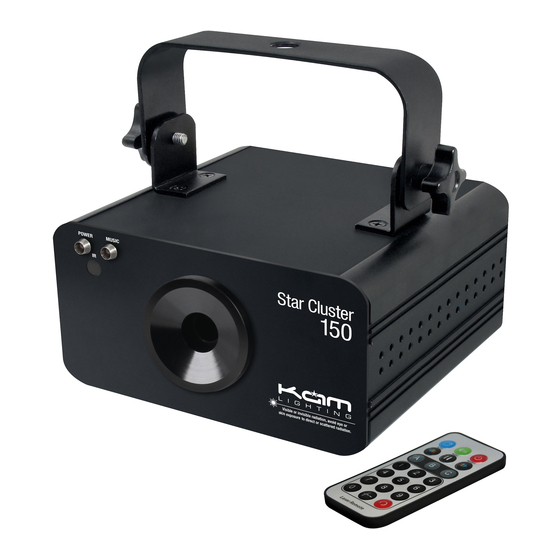

Star Cluster 150
Stunning red and green star cluster effect laser
M
A
N
U
A
L
V
E
R
S
I
O
N
1
.
0
14 - 05 - 12
Due to continuous product development, please ensure that you have downloaded
the latest instruction manual for this product from the Kam website at www.kam.co.uk
For the latest updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change.
© Copyright Lamba plc 2011. E&OE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KAM Star Cluster 150
Summary of Contents for KAM Star Cluster 150
- Page 1 For the latest updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
-
Page 2: Unpacking Instructions
Thank you for purchasing this KAM product, we are sure that it will serve you for many years to come. To optimise the performance of this product, please read these operating instructions carefully to familiarise yourself with the basic operations of this unit. After you have read the instructions, please retain them for future reference. -
Page 3: Xlr-Connection
Power Supply Cable (EU) Cable (US) International Brown Black Live Light Blue White Neutral Yellow/Green Green Earth DMX-512 connection between fixtures The fixture is equipped with 3-pin XLR sockets for DMX input and output. Thesockets are wired in parallel. Only use a shielded twisted-pair cable designed for3-pin XLR-plugs and connectors in order to connect the controller with the fixtureor one fixture with another. -
Page 4: Front Panel
Proper laser set up &usage This fixture has been designed to be hung. It is recommended for safety purposes,your lighting effect are properly mounted using a suitable hanging clamp andsafety cable. Items appropriate for safe and effective mounting are easilysourced from your lighting vendor. -
Page 5: Operation
Operating Mode When the laser is powered on, the LCD monitor on rear panel shows the current operating standalone mode, DMX address or Slave mode. With help of the LCD control panel, it is very easy to set and change the operating mode of the laser. The next time the laser is powered on it will show the last setting used before the laser was powered off. -
Page 6: Master/Slave Mode
MASTER/SLAVE MODE Press FUNC to enter the MODE selection Use the up/down buttons to select SLA for Slave mode Press ENTER to confirm the setting Now the laser is working in SLAVE MODE. Connect the MASTER laser with several SLAVE lasers using a DMX cable. The SLAVE lasers will produce exactly the same laser show as MASTER laser. - Page 7 DMX Protocol Channel DMX Value Description 000-050 Laser Black Out 051-100 Auto show Ch 1 101-150 Sound activated show 151-200 DMX mode 1 201-255 DMX mode 2 DMX Mode 1 Channel DMX Value Description 000-004 No function 005-127 Clockwise rotation (slow – fast) Ch 2 –...
- Page 8 Remote Instruction Button Function Description In REM mode, to turn ON/OFF laser. In any stand alone ON/OFF mode, except for SLA mode, pressing this button for 2 seconds will activate the REM mode. Auto Auto running Sound Activated show. The blue music LED indicator is Music flashing when sound signal is detected.
