Star Cluster 300 RGB
Stunning RGB star cluster effect laser
M A N U A L
V E R S I O N
1 . 0
2 4 / 0 4 / 1 2
Due to continuous product development, please ensure that you have downloaded
the latest instruction manual for this product from the Kam website at www.kam.co.uk
For the latest instruction manual updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change.
© Copyright Lamba plc 2010. E&OE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KAM Star Cluster 300RGB
Summary of Contents for KAM Star Cluster 300RGB
- Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
- Page 2 Thank you for purchasing this KAM product, we are sure that it will serve you for many years to come. To optimise the performance of this product, please read these operating instructions carefully to familiarise yourself with the basic operations of this unit. After you have read the instructions, please retain them for future reference.

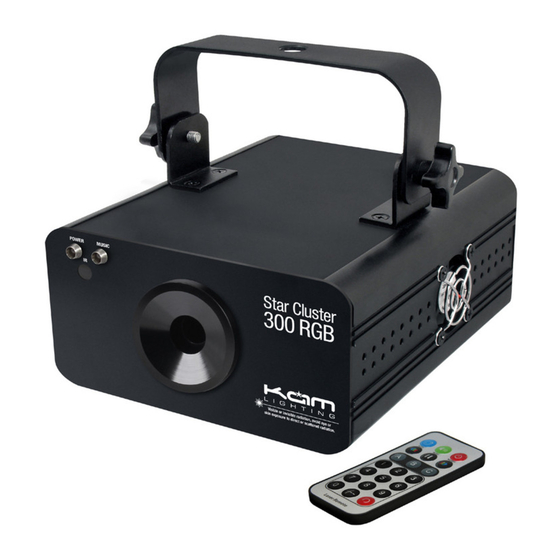

- Page 3 Front panel Rear panel 1. Laser output – Laser output aperture 8. DMX output – 3 PIN Female XLR 2. Power – Red LED is ON 9. Safety eye – Attach the safety cable 3. Music – Synchronise to detected music signal 10.
- Page 4 Use the Func button to step through the modes options available and use the enter button to select and set the mode you require. In each mode there is a sub menu or setting control that can be accessed via the up and down buttons to access the various desired settings for each mode.
- Page 5 DMX Channels CHANNEL DMX VALUE DESCRIPTION 000-050 Laser off 051-100 Auto mode CH 1 – Mode 101-150 Sound mode 151-200 DMX mode 1 201-255 DMX mode 2 DMX Mode 1 000-004 No function 005-127 Clockwise rotation (slow-fast) CH 2 - Rotation 128-133 Stop 134-255...
- Page 6 Building a serial DMX chain You can connect multiple units in a DMX chain. Connect the DMX output of the first unit in the chain to the DMX input of the next unit. Always connect one output with the input of the next unit until all units are connected. Then set the starting address for all units using the above dip switch table.
