d

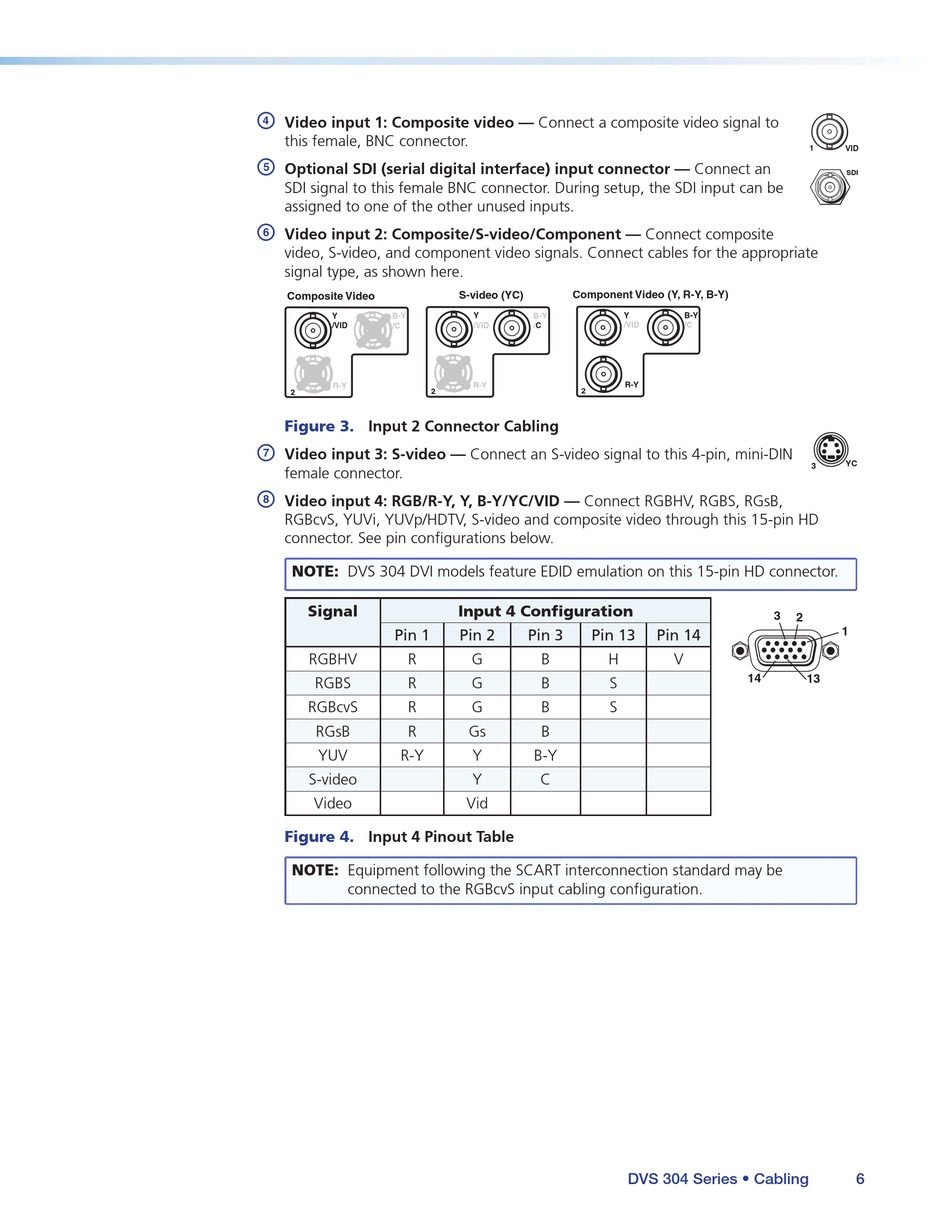

Video input 1: Composite video — Connect a composite video signal to
this female, BNC connector.
e
Optional SDI (serial digital interface) input connector — Connect an
SDI signal to this female BNC connector. During setup, the SDI input can be
assigned to one of the other unused inputs.
f
Video input 2: Composite/S-video/Component — Connect composite
video, S-video, and component video signals. Connect cables for the appropriate
signal type, as shown here.
Composite Video
Y B-Y
/VID
/C
R-Y
2
2
Figure 3. Input 2 Connector Cabling
g
Video input 3: S-video — Connect an S-video signal to this 4-pin, mini-DIN
female connector.
h
Video input 4: RGB/R-Y, Y, B-Y/YC/VID — Connect RGBHV, RGBS, RGsB,
RGBcvS, YUVi, YUVp/HDTV, S-video and composite video through this 15-pin HD
connector. See pin configurations below.
NOTE: DVS 304 DVI models feature EDID emulation on this 15-pin HD connector.
Signal
Pin 1
RGBHV R
RGBS R
RGBcvS R
RGsB R
YUV R-Y
S-video
Video
Figure 4.
Input 4 Pinout Table
NOTE: Equipment following the SCART interconnection standard may be
connected to the RGBcvS input cabling configuration.
S-video (YC) Component Video (Y, R-Y, B-Y)
Y
Y B-Y
/VID /C /VID
R-Y R-Y
2
Input 4 Configuration
Pin 2 Pin 3 Pin 13
G B H
G B S
G B S
Gs B
Y B-Y
Y C
Vid
DVS 304 Series • Cabling
1
B-Y
/C
3
3
2
Pin 14
V
14
13
VID
SDI
YC
1
6
