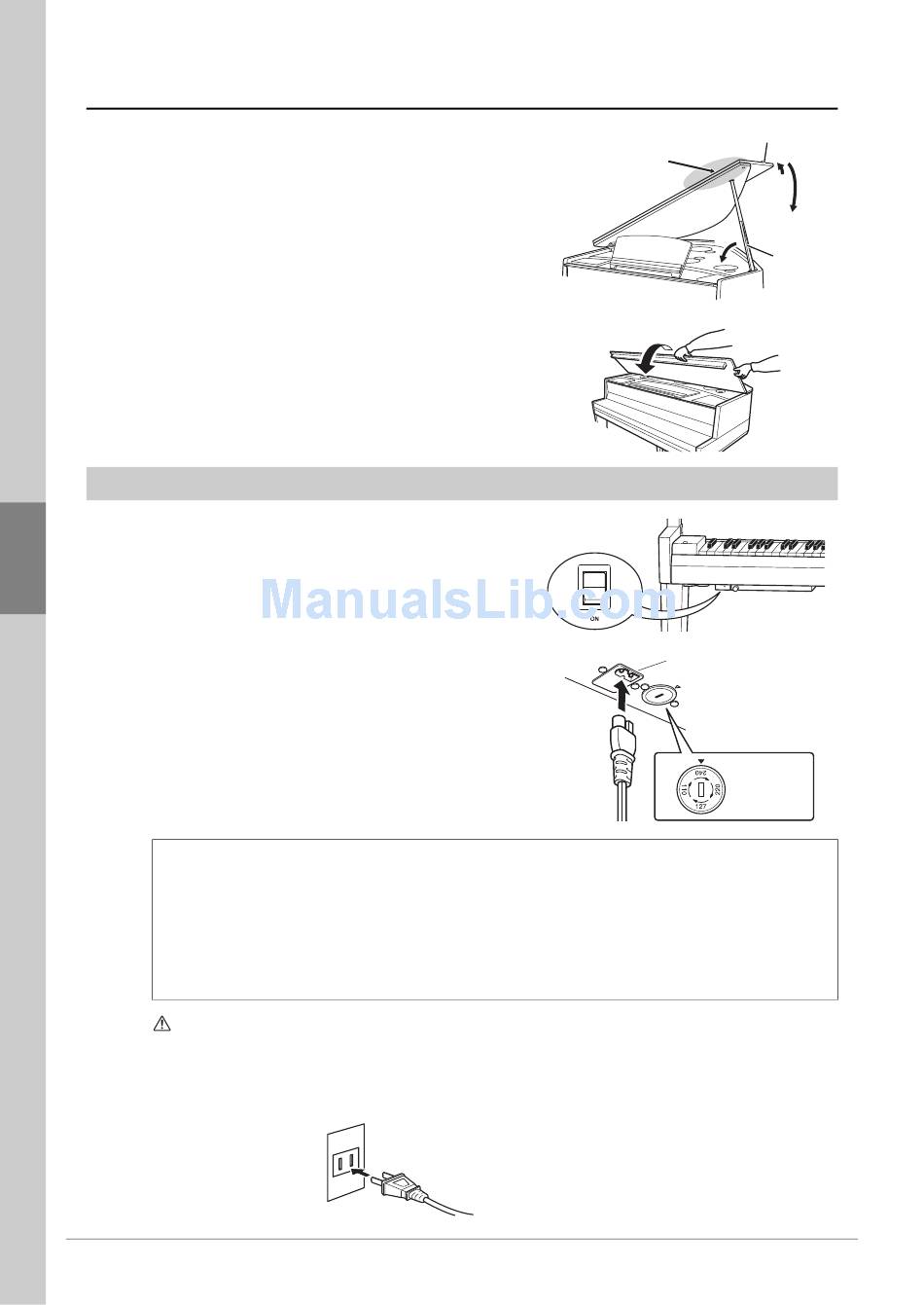

Playing the Keyboard
To close the lid
1
Hold the lid stay and carefully raise the lid.
2
Hold the lid in its raised position and lower the lid
stay.
3
Carefully lower the lid.
When using the music rest, lower the music rest (page 13)
before going on to the next step.
4
Gently close the front portion of the lid.

Power Supply

1
Make sure the power switch on the instrument is
set to the off position.
2
Connecting the power cord
2-1 Set the voltage selector and insert the power cord plug to
the [AC IN] connector. Refer to the "Panel Controls and
Terminals" on page 10 for information on the location of
the [AC IN] connector.
Voltage Selector
Before connecting the AC power cord, check the setting of the voltage selector which is provided in some
areas. To set the selector for 110V, 127V, 220V or 240V main voltages, use a "minus" screwdriver to rotate
the selector dial so that the correct voltage for your region appears next to the pointer on the panel. The volt-
age selector is set at 240V when the unit is initially shipped. After the proper voltage has been selected, con-
nect the AC power cord to the AC IN and an AC wall outlet. A plug adaptor may be also provided in some
areas to match the pin configuration of the AC wall outlets in your area.
WARNING
Make sure your instrument is rated for the AC voltage supplied in the area in which it is to be used. (The voltage rat-
ing appears on the name plate on the bottom panel). Connecting the unit to an inappropriate AC supply can seri-
ously damage the internal circuitry and may even pose a shock hazard!
2-2 Insert the plug on the other end of the power cord to a standard AC outlet.
14 • N3X
Owner's Manual
Hold here.
Power switch: off
(The shape of the plug differs depending
on the locale.)
Do not hold here.
1
3
2
Lid stay
[AC IN] connector
Voltage
Selector
