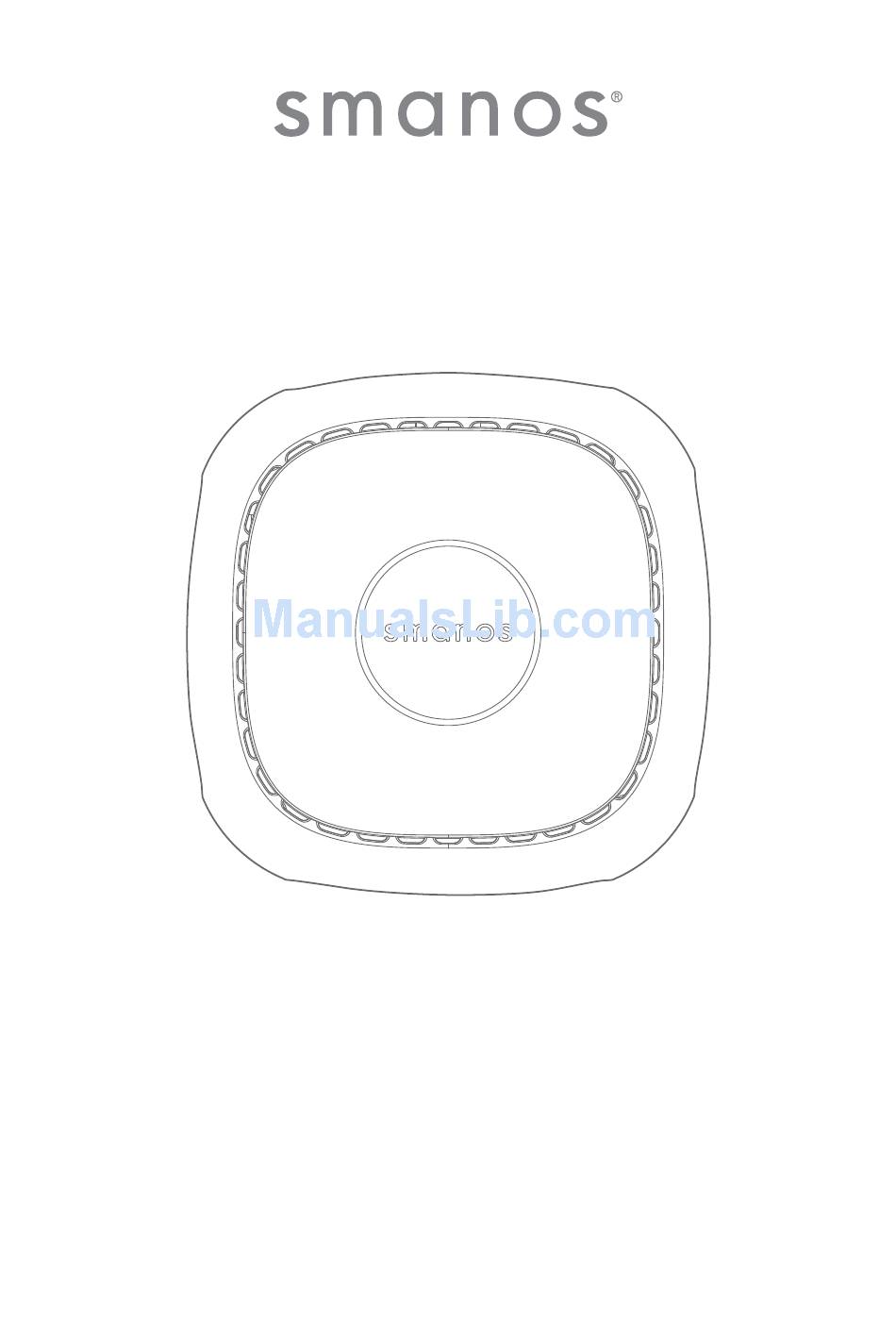

- Page 1 W120 WiFi Alarm System Instruction Manual...
- Page 2 In the Box W120 Smart Hub x 1 DS2300 Door/window Control x 2 RE2300 AC adapter x 1 AA Battery x 4 Remote Control x 1 Reset Pin x 1 User Manual x 1...
-
Page 3: Table Of Contents
Door / Window Sensor ------------------------------------------------------- 5 Tamper Switch --------------------------------------------------------------- 5 Low Battery Indication ------------------------------------------------------ 5 Getting Started ------------------------------------------------ 6-8 Download the “W120 WiFi Alarm System” App ------------------------------- 6 Sign Up/In --------------------------------------------------------------------6 Adding a Device ----------------------------------------------------------- 7-8 App Operation ------------------------------------------------ 9-20... - Page 4 App Settings ------------------------------------------------------------------ 13 My Hub ------------------------------------------------------------------ 13 Accessory Settings --------------------------------------------------------- 14 Add Accessories ---------------------------------------------------------- 16 Wireless Siren (If Purchase Separately) ------------------------------------- 17 Timed Arm / Disarm ------------------------------------------------------ 18 Delay Settings --------------------------------------------------------------- 18 Time Settings --------------------------------------------------------- 19 Others ------------------------------------------------------------------ 20 Installation ------------------------------------------------------ 21 Replacing Batteries of Accessories -------------------------------- 23 Restoring to Factory Settings ------------------------------------- 24...
-
Page 5: Things To Know Before Getting Started
Things to Know before Getting Started Thank you for choosing smanos to help you take control of your home. The smanos family of Home Alarm Systems is designed to be self-monitored and help you become more active in securing your home without a high investment. We aim to provide a safe, easy &... -
Page 6: How The W120 System Works
How the W120 System Works Through the The Hub is set to Remote Control, Armed Mode put the system in (The red indicator is Armed Mode on) by the user. The Hub receives the The H command and enters comm “Armed”... -
Page 7: Getting To Know Your Wifi Alarm System

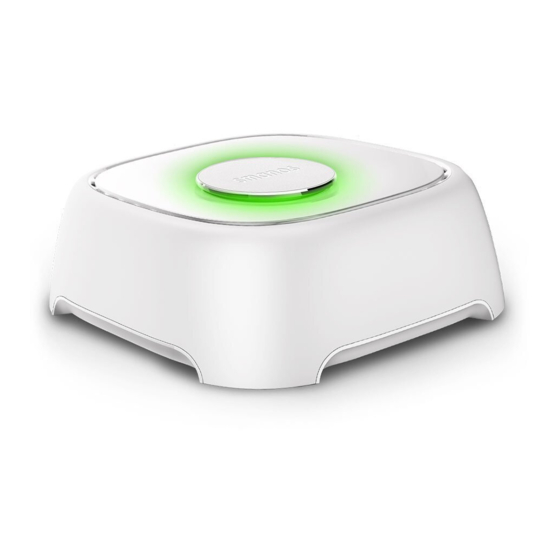

Getting to Know Your WiFi Alarm System Front Rear Battery Reset Button Status Indicator Side Adapter Jack Alternating red, green and blue lights Ready to pair with new accessory Solid light Stable WiFi connection No Connection / Disconnected from Flashes once every second the router Flashes every 3 seconds Low battery... -
Page 8: Remote Control
Remote Control LED Indicator Guide Point For The Blind Disarm Stay Metal Ring Button System Status All Sensors will be Armed. This mode is for use when the property is unoccupied. The System will be Disarmed, no Sensors will be triggered. Sensors will be Armed. -
Page 9: Door / Window Sensor
Door / Window Sensor LED Indicator Tamper Switch Transmitter Magnet Back Side Front Side protecting entry/exit points such as front and back doors and windows. When the system is armed, and a Sensor is triggered (Magnet separated from the Transmitter), registered users and the Hub Internal Siren will sound immediately. -
Page 10: Getting Started
Getting Started Download the “W120 WiFi Alarm System” App Search for “W120 Alarm” in App Store/Google Play, then download and install the App. Special Tips (For iPhone only) from “W120 Alarm”. Forbidden to receive running failure, please allow it to send alarm. -
Page 11: Adding A Device
You can operate multiple devices from a single account. If you have multiple W120 Hubs or P70 cameras; it is easy for you to manage these devices within this App. Press the [+] button on the main page. Tap on [W120 WiFi Alarm System], then Important: W120 does not support WiFi of 5GHz band, if dual-band (5GHz and 2.4GHz) - Page 12 Select your 2.4GHz WiFi network from the list, and enter the WiFi network password. The Hub will connect to the selected WiFi network. This binding process should take about one minute. Now, your W120 Hub is ready to help keep you safe & secure!
-
Page 13: App Operation
App Operation Device List Check device status after set up Integrate your W120 Hub with cameras so you can directly icon appears in the right of your device, it means integration has been completed. When the status bar is white, it means the device is ONLINE and available. -
Page 14: My Shares
By choosing “My Shares” on the menu and pressing the [+] Add Button, you can share access to your device(s) with other registered smanos accounts. Enter the email address and nickname of the account you want to share with, and then select the device(s). -
Page 15: Access Settings
Access Settings By Week Days Select the day(s) and routine you wish to share your device with others. By Dates Users you share your device with will have access during the period you choose. App Control - Main Page Arm, Disarm, Home Arm (Partial Arm) this system and trigger an emergency alarm can be done at this page. -
Page 16: History Page
conserve battery power that enables the system to still communicate with the sensors for a longer period of time. System Armed In this mode, all of the sensors are on alert; the Hubs built-in siren will sound when a sensor is triggered. You and ALL other pre-authorized users will receive push one is at home;... -
Page 17: App Settings
App Settings My Hub Device Name This setting enables you to rename your W120 WiFi Alarm System, and the new name will be shown on the Device List. Built-in Siren This setting enables you to adjust the volume level, alarm duration, and arm / disarm beep of the built-in siren in your W120 WiFi Alarm Hub. -
Page 18: Accessory Settings
Alert Tone Email Accessory Settings And if you want to delete the accessory, just press and slide the accessory to the left and then delete it. - Page 19 Zone Mode (Full Arm) or Home Arm (Part Arm) Mode. We recommend setting Window/Door Sensors to this zone because they would always be installed to the perimeter of a house in practice, like doors or windows. (Full Arm) Mode. If Home Mode (Partial Arm) is used, these Sensors are not armed and will not activate the alarm on trigger.
-
Page 20: Add Accessories
Separate the transmitter from the magnet Please note that pressing the Tamper Switch of the Sensor instead Please refer to the user manual of the new purchased accessory and then follow its steps to pair it with W120 Hub. -
Page 21: Wireless Siren (If Purchase Separately)
Wireless Siren (If Purchase Separately) smanos wireless siren will beep once or twice when system is armed or partial armed. This setting enables you to turn on/off this prompt tone. This function is switched off by default. -
Page 22: Timed Arm / Disarm
Timed Arm / Disarm The system can be programmed to automatically Arm and Disarm the Hub at 2. Choose any status you want the system to become (Arm / Disarm / Home Arm). 3. Choose the activate time of the status. 4. -
Page 23: Time Settings
19. Time Settings Synchronize Time This setting enables you to synchronize device time to your mobile, to make sure Date Format This setting enables you to change the format of the date shown on your smanos home app. -
Page 24: Others
Others Test Mode With test mode, you can check the range between accessories and your Hub without triggering any alarm, and prevent tamper switch alarm triggered while installing the accessories or replacing batteries. Once a trigger is detected during this process, the name of the triggered sensor will be displayed. -
Page 25: Installation
WHEN AN UPDATE IS TAKING PLACE, FORCED TERMINATION WILL CAUSE SERIOUS DAMAGE TO YOUR HUB. It is highly recommended that you keep your W120 Hub plugged in at all times, and DO NOT SWITCH THE DEVICE OFF BEFORE AN UPDATE IS COMPLETED. - Page 26 Door/Window Contact Make sure the contacts work properly before installation. It can be installed on doors, windows or any other objects that can be opened and closed. If it is applied to a mental door, please place spacer under the transmitter and magnet.
-
Page 27: Replacing Batteries Of Accessories
Replacing Batteries of Accessories Smart Hub W120 Open the case and change the battery Remote Control RE2300 Remove the rubber item Loose the screw Open the case and change the battery Door/Window Contact DS2300 Open the case and change the batteries... -
Page 28: Restoring To Factory Settings
Restoring to Factory Settings After that, the Hub is restored to factory settings. Troubleshooting Problems Reason/ Solution Check whether the local network is working The Hub dose not respond to app operation Make sure the Hub is powered by adapter Check if the remote control has been paired to the Hub successfully Remote control does not work... - Page 29 Power Supply DC 12V 500mA AA 1.5V LR 6 x 4pcs Battery <60 mA Standby Current <200 mA Alarm Current 95dB Internal Siren 10 remote controls, 50 sensors Expandable Accessories IEEE 802.11b/g/n WiFi 915MHz(±75 KHz) Radio Frequency PC+ABS Plastic Housing Material Temperature -10°C~+55°C Operating Condition Relative humidity <80% (non-condensing)
- Page 30 Door/ Window Contact Power Supply DC 3V (CR2032 lithium cell battery x 2) <2 uA Static Current <22 mA Alarm Current <80 m (open area/no interference) Transmitting Distance 915MHz (±75 KHz) Radio Frequency PC+ABS Plastic Housing Material Temperature 0°C~+55°C Operating Condition Relative humidity <80% (non-condensing) Transmitter Dimensions...
- Page 31 Printed in China © 2017 SMANOS HOLDING LTD. All Rights Reserved.
