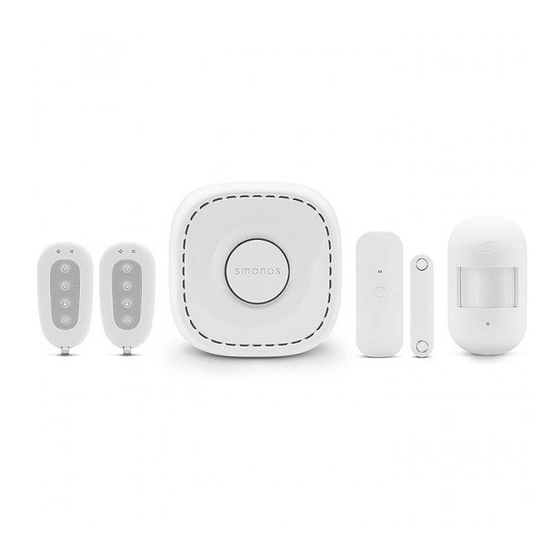

Smanos W220 - WiFi Alarm System Quick Guide

Table of Contents

Contents

1 Download the smanos One App
2 Add the Hub to the App
3 Accessories Configuration
4 Installation
5 Specification
6 Documents / Resources
- 6.1 References
- 6.2 Download manual

Download the smanos One App

Download the App from App Store or Google Play by searching the keywords "W120 Alarm".

Download the smanos One App

Add the Hub to the App

Sign up an account, and then sign in the App and follow the instructions on the App to add the Hub to your account.
Add the Hub to the App

*If you bought the bundle kit with HD WiFi Camera, you can add the camera in the App to control home security and view live video if someone breaks in your home wherever you are.

Accessories Configuration

Test the system with pre-paired accessories

Remote Control
Press any button on the remote control to test the connection.
Door/Window Contact
Set the Hub into Armed status, trigger the door/window contact by separating the magnet and transmitter to test the connection.
Motion Detector
Set the Hub into Armed status, press the Test button at the back more than twice to test the connection.

*You can also change the accessory settings and add new accessory in the App.

Installation

Install the Hub and accessories to the right places.
Installation

* Please place this unit away from load-bearing walls and operating home appliances, and elevate it along with your modem or router away from the ground, to ensure the best possible connectivity.

For more detailed Instruction Manual, please check Help in "W120 Alarm" app.

Specification

W120 Hub

Power Supply	DC 12V 500mA
Battery	AA 1.5V LR 6 x 4pcs
Standby Current	<60 mA
Alarm Current	<200 mA
Internal Siren	95dB
Expandable Accessories	10 remote controls, 50 sensors
WiFi	IEEE 802.11b/g/n
Radio Frequency	868MHz or 915MHz(±75 KHz) *Only 868MHz is available for Europe
EIRP(dBm).Max	16.29
ERP(dBm). Max	-8.27
Receiver Category	Category 2 (standard performance level of receiver)
Housing Material	PC+ABS Plastic
Operating Condition	Temperature 0°C~+50°C (32°F - 122°F) Relative humidity <90% (non-condensing)
Dismensions	117 x 118.5 x 40.5 mm (L x W x H) (4.6 x 4.7 x 1.6 inches)

Remote Control

Power Supply	DC 3V (CR2032 lithium cell battery x 1)
Transmitting Current	<10 mA
Transmitting Distance	<80 m (open area/no interference)
Radio Frequency	868MHz or 915MHz (±75 KHz) *Only 868MHz is available for Europe
ERP(dBm). Max	-10.62
Housing Material	PC + ABS plastic
Operating Condition	Temperature 0°C~+50°C (32°F - 122°F) Relative humidity <90% (non-condensing)
Dimensions	71 x 38 x 12 mm (L x W x H) (2.8 x 1.5 x 0.5 inches)

PIR Motion Detector

Power Supply	DC 3 V (AA 1.5 V alkaline battery x 2)
Standby Current	< 13 uA
Alarm Current	< 20 mA
Detection Range	8m/110°
Transmitting Distance	< 80 m (Open area/no interference)
Radio Frequency	868 MHz or 915 MHz (±75MHz) *Only 868MHz is available for Europe
ERP(dBm). Max	-9.82
Housing Material	ABS plastic
Operation Condition	Temperature: 0°C ~ +50°C Relative Humidity: < 90% (non-condensing)
Detector Dimensions	101.5 x 59 x 37.5 mm (L x W x H) (4 x 2.3 x 1.5 inches)
Bracket Dimensions	60 x 29 x 27 mm (L x W x H) (2.4 x 1.1 x 1.1 inches)

Door/ Window Contact

Power Supply	DC 3V (CR2032 lithium cell battery x 2)
Static Current	<2 uA
Alarm Current	<22 mA
Transmitting Distance	<80 m (open area/no interference)
Radio Frequency	868MHz or 915MHz (±75 KHz) *Only 868MHz is available for Europe
ERP(dBm). Max	-10.26
Housing Material	PC+ABS Plastic
Operating Condition	Temperature 0°C~+50°C (32°F - 122°F) Relative humidity <90% (non-condensing)
Transmitter Dimensions	72.5 x 28 x 10 mm (L x W x H) (2.85 x 1.1 x 0.4 inches)
Magnet Dimensions	58 x 14 x 9.5 mm (L x W x H) (2.28 x 0.55 x 0.38 inches)
