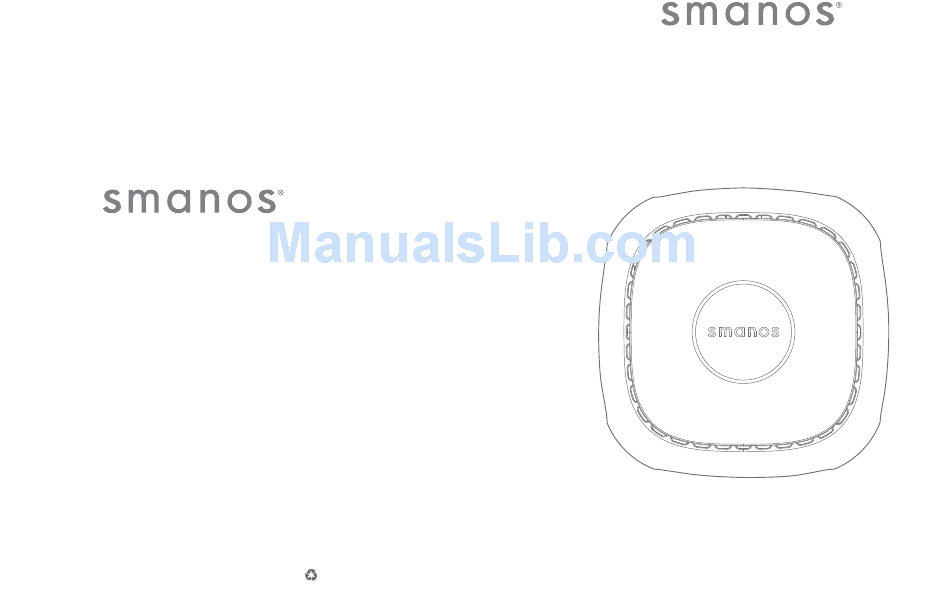

- Page 1 U S E R M A N U A L W020 WiFi Alarm System Printed in China © 2015 SMANOS HOLDING LTD. All Rights Reserved. PA: W020-UM-EN-V1.0...
-
Page 2: Table Of Contents
Reload the Batteries of Accessories ..........17 Restoring to Factory Setting ..............18 Trouble Shooting ..................19 Maintenance ..................20~21 Specifications ..................22~23 W020 Control Panel ................22 VIDEO RE2300 Remote Control ..............23 Please read this user manual carefully. DS2300 Door/Window Contact ............23 Be sure to keep this user manual handy for future reference. -
Page 3: Introduction
Introduction In the Box Congratulations in buying the W020 alarm system. This product Please check whether the package includes the following items. If is a totally D.I.Y. home security solution. It features automatic not, please contact the distributor/ retailer. connection to various accessories, putting your home under all- round protection. -
Page 4: How It Works
How It Works SA-A12 Adapter x 1 Reset Pin x 1 Paired Door/Window Contact Door or window is opened User Manual x 1 Warranty Card x 1 Managed by remote control / phone Panel sounds / Sends a push notification to users Users... -
Page 5: Overview
Overview Accessories Remote Control Front Overview LED Indicator Status Indicator Status Indicator Status Indicator Guide Point For The Blind Disarm Stay Rear Battery Reset Button Metal Ring Battery Reset Button Battery Reset Button Note: If you press any button, the LED indicator is dusky and lights off after flashing twice quickly, means the remote control battery is exhausted. -
Page 6: Zone Mode
Door/Window Contact The control panel will hoot on-site with indicator flashing, users will receive an emergency message from App. The contact contains a transmitter and a magnet, which can be mounted on a door, window or any objects that can be opened Press the [stay button, the indicator on the remote control... -
Page 7: App Operation
And this alarm system can be controlled by multiple users. Special Tips (For Iphone Only) Tap “OK” to allow receiving notifications from “W020 Alarm”.Forbidden to Step 2: Secure the contacts with double-sided tapes receive notifications may result in an application running failure, please re-... - Page 8 3. Choose manual configuration in the one-click setup interface of W020 App. 4. Input the local Wi-Fi name and its password, click [Start]. When the status LED indicator stops blinking but keeps on instead, it means the configuration is successful.
- Page 9 System settings Exit Delay Time & Entry Delay Time ③ If you don’t want to carry along remote controls, you can set the exit or entry delay. Suppose entry delay is set at 30 seconds, the system will allow you 30 seconds to disarm the system before alarming.
-
Page 10: Pairing/Deleting Accessory
Pairing/Deleting Accessory When a beep is heard from the control panel means the sensor is paired successfully. If two beeps are heard, it means the sensor has already been paired. The included accessories have been paired with the control panel Note: To pair other sensors, please refer to the related user manuals. -
Page 11: Reload The Batteries Of Accessories
Reload the Batteries of Accessories Restoring to Factory Setting RE2300 Remote Control Please read the steps below carefully before restoring to factory setting. Use the supplied reset pin to press the reset button (refer to page 5) for about 7 seconds, during the time, you will hear a beep in the first 3 seconds, do not loose it until another beep is heard. -
Page 12: Trouble Shooting
Trouble Shooting Maintenance If the alarm system cannot work properly, please first check the The alarm system features unique and brilliant design and following sheet. craftwork. Please use it with caution. The following suggestions will help prolong the service life of the system. Problems Reason/Solution 1. -
Page 13: Specifications
Therefore, you need to connect the AC adapter to a reliable power outlet. W020 Control Panel 9. Avoid placing the control panel and sirens in bedrooms or offices, so as not to disturb your rest or work. -
Page 14: Re2300 Remote Control
Disclaimer RE2300 Remote Control Power Supply DC 3V (CR2032 lithium cell battery x 1) Transmitting Current <9.5 mA Dear users, Transmitting Distance <80 m (open area/no interference) We have reviewed this manual thoroughly in order to ensure it’s clear and easy for you to operate the system. All statements, Radio Frequency 868MHz or 915MHz (±75 KHz) technical information, recommendations in this manual are... - Page 15 FCC STATEMENT FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set 1.This device complies with Part 15 of the FCC Rules. Operation is forth for an uncontrolled environment. In order to avoid the subject to the following two conditions: possibility of exceeding the FCC radio frequency exposure limits, (1)This device may not cause harmful interference.
