Hayward TriStar HCP3205C Owner's Manual

Hayward TriStar HCP3205C Owner's Manual

Tristar series

Advertisement

Quick Links

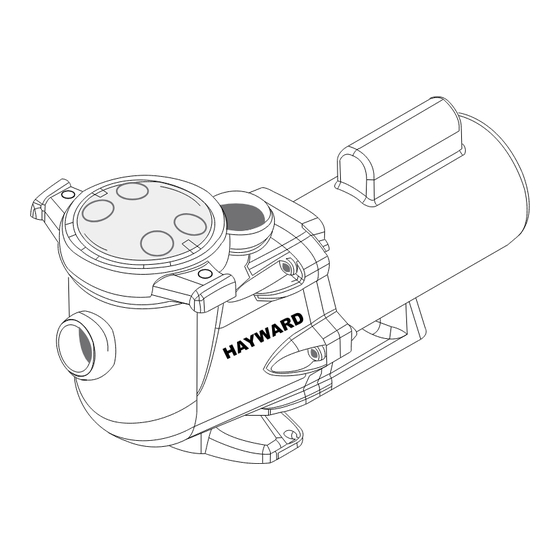

The Hayward TriStar Pump is Specifically Engineered for the demanding requirements of today's in-ground
swimming pool/spa that is equipped with large capacity filters, heaters, and pool cleaning equipment. The
TriStar is a self-priming pump that incorporates an improved seal and impeller design that will provide many
years of efficient, dependable, corrosion-free service. The advanced design provides superior performance
while reducing maintenance requirements. NOTE - To prevent potential injury and to avoid unnecessary
service calls, read this manual carefully and completely.
IMPORTANT - READ CAREFULLY
NOTE
- The TriStar is a high performance, high efficiency
pump. When replacing most existing pumps, you can use a
TriStar pump with a lower horsepower rating than the
existing pump. Required: 2" Plumbing minimum.
HAYWARD POOL PRODUCTS CANADA INC.
2880 Plymouth Drive, Oakville, ON L6H 5R4
TEL: 1-888-238-7665
WWW.HAYWARD-POOL.CA
OWNER'S MANUAL
INSTALLATION, OPERATION, & PARTS
TriStar Pump Series
SAVE THIS INSTRUCTION MANUAL
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
P/N-IS3200-HC-12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TriStar HCP3205C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hayward TriStar HCP3205C

  • Page 1 TriStar Pump Series ™ The Hayward TriStar Pump is Specifically Engineered for the demanding requirements of today’s in-ground swimming pool/spa that is equipped with large capacity filters, heaters, and pool cleaning equipment. The TriStar is a self-priming pump that incorporates an improved seal and impeller design that will provide many years of efficient, dependable, corrosion-free service.
  • Page 2: Important Safety Instructions

    CAUTION -- A Licensed electrician MUST complete, in full, all electrical installations noted in this manual. Use of non-Hayward replacement parts voids warranty. ATTENTION INSTALLER - THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE INSTALLATION, OPERATION, AND SAFE USE OF THIS PUMP THAT MUST BE FURNISHED TO THE END USER OF THIS PRODUCT.
  • Page 3 - In addition to two or more suction outlets per pump installed in accordance with the latest IAF (formerly NSPI) standards and CPSC guidelines, follow all national, state, and local codes applicable. - Installation of a vacuum release or vent system, which relieves entrapping suction, is recommended. WWW.HAYWARD-POOL.CA USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 4: Product Specifications

    10” 3” [90] 160 [600] 15” NOTE - It is recommended that a minimum length of piping, equivalent to 10 pipe diameters, be used between the pump suction inlet and any plumbing fittings. WWW.HAYWARD-POOL.CA USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 5 2.50 / 0.31 (1.86 / 0.23) 208 - 230 12.4 - 11.2 ¹, ², ³ Low Speed Amps: (¹ 2.8 - 3.0) (² 3.2 - 3.4) (³ 3.8 - 4.1) Three-Phase (3Φ) Pump - motor starter required WWW.HAYWARD-POOL.CA USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 6 HCP3207C 1.39 (1.04) 0.75 (0.56) 1.85 575 V HCP3210C 1.9 (1.42) 1 (0.75) HCP3215C 2.4 (1.79) 1.5 (1.12) HCP3220C 2.8 (2.09) 2 (1.49) HCP3230C 3.6 (2.68) 3 (2.24) HCP3250C 5 (3.73) 5 (3.73) WWW.HAYWARD-POOL.CA USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 7: Replacement Parts

    Strainer Cover Kit (Includes Strainer Lexan Cover, Lock Ring, O-Ring) SPX3200S Strainer Cover O-Ring SPX3200M Strainer Basket SPX3200Z8 Diffuser Screw SPX4000Z1 Diffuser O-Ring SPX3200B3 Diffuser, 3 HP SPX3200Z1 Impeller Screw SPX3021R Impeller Ring WWW.HAYWARD-POOL.CA USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 8 SPX3220Z2BE SPX3220C 575 VAC Commercial Pumps Model No. Motor P/N Impeller P/N HCP3205C HCXP3205Z1DC SPX3205C HCP3207C HCXP3207Z1DC SPX3207C HCP3210C HCXP3210Z1DC SPX3210C HCP3215C HCXP3215Z1DC SPX3215C HCP3220C HCXP3220Z1DC SPX3220C HCP3230C HCXP3230Z1DC SPX3230C HCP3250C HCPX3250Z1DC SPX3230C5 WWW.HAYWARD-POOL.CA USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...

This manual is also suitable for:

Tristar hcp3207cTristar hcp3210cTristar hcp3215cTristar hcp3230cTristar hcp3220cTristar hcp3250c
