Gossen MetraWatt METRAport 40S Operating Instructions Manual

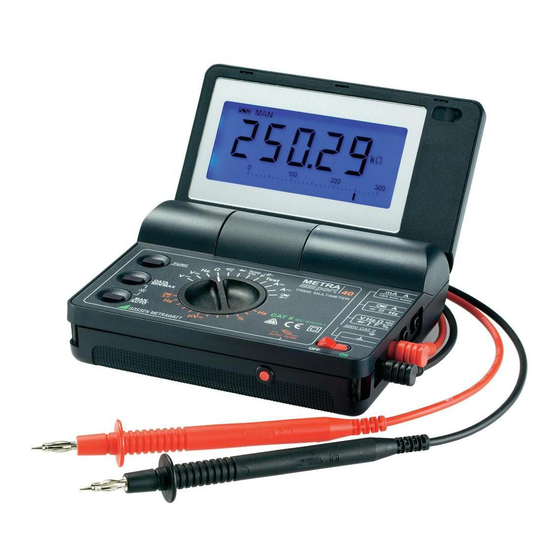

Digital multimeter
Hide thumbs Also See for METRAport 40S:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
METRAport40S
3-349-412-02
Digital Multimeter
6/10.14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the METRAport 40S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gossen MetraWatt METRAport 40S

Summary of Contents for Gossen MetraWatt METRAport 40S

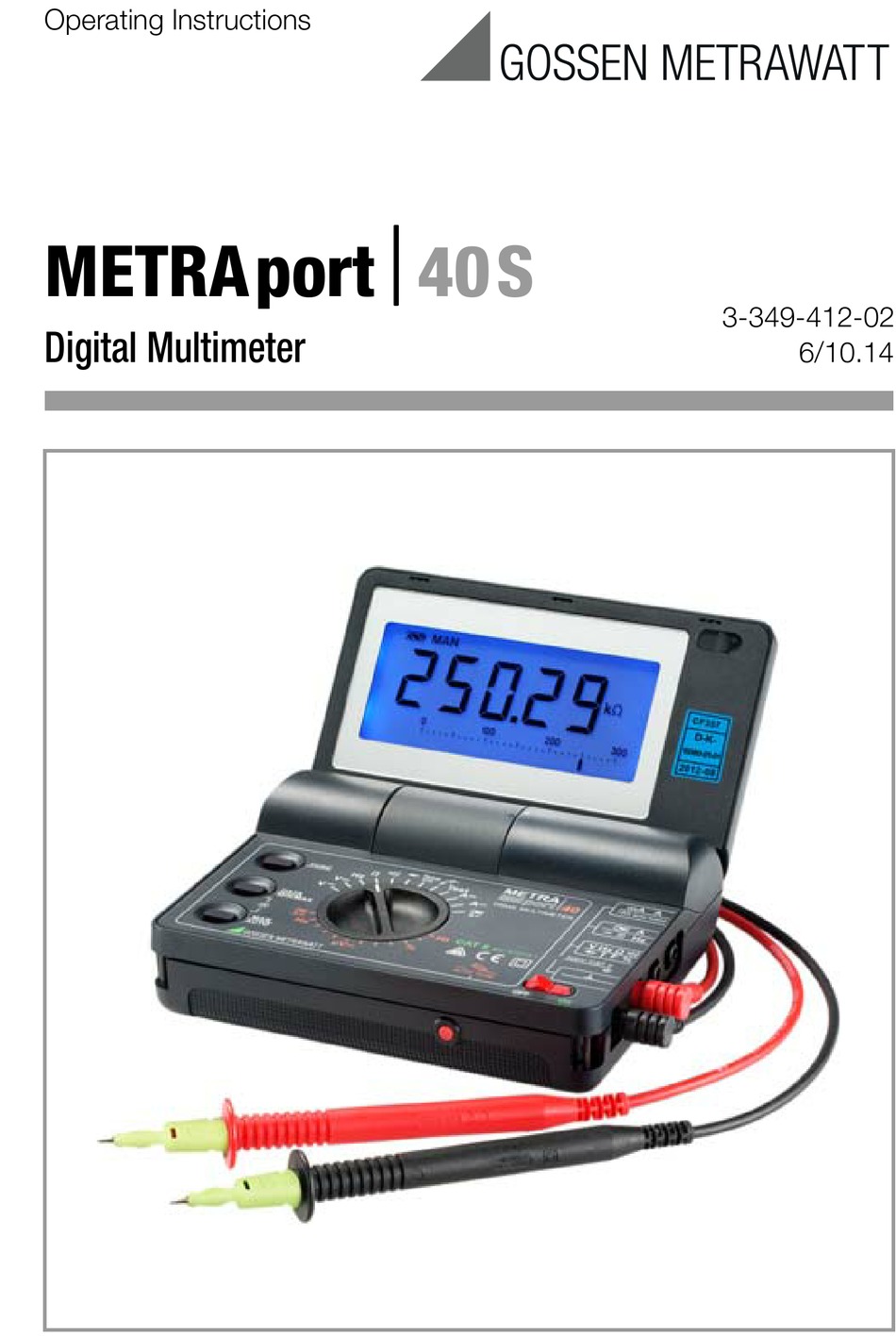

  • Page 1 Operating Instructions METRAport40S 3-349-412-02 Digital Multimeter 6/10.14...
  • Page 2 Control Elements 1 LCD 2 Battery compartment cover 3 mA, A connector jack for direct measurement of current to “max. 10 A” A connector jack for current clamp measurement to “max. 30 V” 5 Connector jack for all measuring ranges except current measuring ranges 6 “”connector jack for all measuring ranges 7 OFF/ON: ON/OFF switch 8 Resettable miniature circuit breaker (AUTO FUSE)
  • Page 3 Digital Display Symbols 1 Continuous operation 2 Battery voltage display 3 Digital display with indication of decimal place and polarity 4 Manual measuring range selection 5 Display memory, “freeze measured value” 6 MIN-MAX storage 7 ZERO: zero balancing active 8 Selected current type, DC or DCAC ( ) 9 USB Interface display (when communication is active ...

  • Page 4: Table Of Contents

    Contents......................... Page Safety Features and Precautions ................5 Initial Start-Up ......................7 Selecting Measuring Functions and Measuring Ranges .........8 Automatic Measuring Range Selection ................8 Manual Measuring Range Selection – MAN/AUTO Key ..........8 Quick Measurements ....................9 Display (LCD) ......................9 Display Illumination ....................9 Digital Display ......................9 Analog Display ......................9 Measured Value Storage –...

  • Page 5: Safety Features And Precautions

    Safety Features and Precautions You have selected an instrument which provides you with a high level of safety. This instrument fulfills the requirements of the applicable European and national EC guidelines. We confirm this with the CE marking. The relevant declaration of conformity can be obtained from GMC-I Messtechnik GmbH.
  • Page 6 • Be absolutely certain that the measuring ranges are not overloaded beyond their allowable capacities. Limit values can be found in the “Measuring Ranges” table in chapter 15, “Characteristic Values”. Meaning of symbols on the instrument Warning concerning a point of danger (Attention: observe documentation!) Earth Continuous doubled or reinforced insulation...

  • Page 7: Initial Start-Up

    Initial Start-Up Installing Batteries Attention! Disconnect the instrument from the measuring circuit at all poles before opening the battery compartment! ➭ Fold the instrument closed. ➭ Insert a coin or a similar object into the slot between the housing and the battery compartment cover and press down until the battery compartment cover snaps open.

  • Page 8: Selecting Measuring Functions And Measuring Ranges

    Disabling Automatic Shutdown The instrument can be switched to “CONTINUOUS ON”. ➭ Press the FUNC key while switching the instrument on with the toggle switch until an acoustic signal is generated. The “CONTINUOUS ON” function is indicated at the display with the symbol.

  • Page 9: Quick Measurements

    Quick Measurements If you wish to perform quicker measurements than those possible with the auto- matic measuring range selection function, make sure to establish the appropriate measuring range: • by manual measuring range selection, i. e. by selecting the measuring range with the best resolution, see chapter 3.2.

  • Page 10: Measured Value Storage - Data / Min-Max Key

    Measured Value Storage – DATA / MIN-MAX Key DATA (hold / compare) Measured values can be automatically frozen at the display with the DATA (hold) function. This is especially useful when full attention is required for contacting the measuring point. After the measured value has been applied to the multimeter and the “condition”...

  • Page 11: Storage Of Minimum And Maximum Values "Min/Max" With Time Stamp

    Storage of Minimum and Maximum Values “MIN/MAX” with Time Stamp Minimum and maximum measured values which occur at the input of the mea- suring instrument after the MIN/MAX function has been activated can be saved to memory. The most important application for this function is the determination of minimum and maximum values during long-term observation of measured quantities (same function as the slave pointer at an analog display).

  • Page 12: Voltage And Frequency Measurement

    Voltage and Frequency Measurement ➭ Set the rotary switch to either V (TRMS) or V , depending upon the voltage to be measured. ➭ You can switch back and forth between voltage and frequency measurement in the V switch position by pressing the FUNC key. Connect the measurement cables as shown.

  • Page 13: Transient Overvoltages

    Transient Overvoltages The multimeter is protected against transient voltages of up to 4 kV with front and half times of up to 1.2 and 50 s respectively. Due to the fact that powerful overvoltages must be reckoned with during measurement, for example in power systems, at transformers or motors, we recommend the use of our KS30 mea- suring adapter in such cases.
  • Page 14 Notes Concerning Current Measurement: • The instrument may only be used in power installations if the electrical circuit is pro- tected with a fuse or a circuit breaker with a rating of up to 20 A, and if nominal voltage at the system does not exceed 240 V~ (AC) or 50 V (DC).

  • Page 15: Current Measurement With Current (Clamp) Sensors With Voltage Output

    Current Measurement with Current (Clamp) Sensors with Voltage Output If a current sensor is connected to the multimeter, all current values are displayed correctly in consideration of the transformer ratio. This presupposes that the cur- rent sensor is equipped with the required sensitivity, and that the appropriate ratio is selected before measurement is performed.

  • Page 16: Resistance Measurement

    Resistance Measurement Set the rotary switch to the  ➭ position. Overload is indicated if no device under test has been connected: “0. L M”. ➭ Before connecting the device under test, make sure that it is voltage- free. Interference voltages distort measurement results! Perform a voltage test first if required.

  • Page 17: Diode Testing

    Diode Testing ➭ Turn the selector switch to the position. Overload is indicated if no device under test has been connected: “. 0 L V”. ➭ Make sure that the device under test is voltage-free. Interference voltages distort measurement results! Perform a voltage test first if required. ➭...

  • Page 18: Capacitance Measurment

    Capacitance Measurment ➭ Make sure that the device under test is voltage-free. Interference voltages distort measurement results! ➭ Turn the rotary switch to the “F” position. – ➭ Connect the (discharged!) device under test to the  and V jacks with the measurement cables.

  • Page 19: Temperature Measurement With Pt100 And Pt1000

    Temperature Measurement with Pt100 and Pt1000 ➭ Set the rotary switch to “Temp RTD”. ➭ Connect the P sensor to the  and V jacks. The instrument automatically recognizes type of connected sensor (Pt100 or Pt1000), and displays measured temperature in the selected unit of measure.

  • Page 20: Characteristic Values

    Characteristic Values Resolution at MUL Input Impedance Measuring Measuring Range Function 30 000 3 000 V DC 10 V 30 mV 50 k — 10 V 300 mV > 11 M 11 M // < 50 pF 100 V 11 M 11 M...
  • Page 21 Intrinsic Uncertainty under Reference Conditions Overload Capacity Measuring ( % rdg. +  d) ( % rdg. +  d) Range 2) 6) Value Duration 30 mV 1 + 5 — 600 V 4) 7 300 mV 0.2 + 5 1 + 30 (DC) 0.2 + 3...
  • Page 22 Influence Quantities and Influence Error Influence Sphere Measured Quantity / Influence Error ( % +  d) / 10 K Quantity of Influence Measuring Range 0.2 + 10 0.4 + 10 300 A  300 mA 0.5 + 10 0 C  3 A / 10 A 1 + 10 +21 C...
  • Page 23 Influence Sphere of Measured Quantity / Influence Error Quantity Influence Measuring Range 1  2  1% rdg. Crest > 2 4  5% rdg. factor V ~, A ~ > 4 5  7% rdg. Allowable crest factor CF for the periodic quantity to be measured Measured depends upon the displayed value:...
  • Page 24 Response Time (after manual range selection) Measured Quantity / Digital Display Measured Quantity Measuring Range Response Time Jump Function , V ~, from 0 to 80% 1.5 s of the measuring range upper limit , A ~ 30   3 M 30 M...
  • Page 25 Service Life with alkaline-manganese batteries: approx. 100 hours Battery Test Battery capacity display with battery symbol in 4 segments: “ ” Battery Saving Circuit The instrument is switched off automatically – if the measured value remains unchanged for a period of approximately 10 minutes, and if none of the control elements are operated during this period.

  • Page 26: Maintenance

    Maintenance Attention! Disconnect the instrument from the measuring circuit before opening to replace batteries or fuses! 16.1 Batteries Make sure that no battery leakage has occurred before placing your instrument into service for the first time, or after long periods of storage. Repeat this inspection on a regular basis thereafter.

  • Page 27: Housing / Opening Of Equipment / Repair

    Attention! Inspect the measuring circuit and eliminate the cause of overload before activating the reset button at the miniature circuit breaker. The fuse link connected in series to the auto-fuse may only be replaced by authorized service personnel. 16.3 Housing / Opening of Equipment / Repair No special maintenance is required for the housing.

  • Page 28: Repair And Replacement Parts Service Calibration Center And Rental Instrument Service

    Repair and Replacement Parts Service Calibration Center* and Rental Instrument Service When you need service, please contact: GMC-I Service GmbH Service-Center Thomas-Mann-Str. 20 90471 Nürnberg • Germany Phone +49 911 817718-0 +49 911 817718-253 E-Mail service@gossenmetrawatt.com www.gmci-service.com This address is only valid in Germany. Please contact our representatives or subsidiaries for service in other countries.
