- Page 1 CP 30 35 GermanCp 41_CP C Operating Instructions METRACLIP 41 METRACLIP 410 3-349-589-37 1/03.10 AC/DC Current Clamp Meter 1.800.561.8187 information@itm.com www. .com...
- Page 2 Order Reference Order No. METRACLIP 41 M320A METRACLIP 410 M320B Battery is included. Thank you for buying this product. For safety reasons and optimum use of this instrument read through the operating instructions very carefully. Table of Contents SAFETY ..........3 INTRODUCTION .......
- Page 3 1. SAFETY The following symbols appear on the products: Do not dispose of this product as unsorted municipal waste. Contact a qualified recycler for disposal. Attention! Refer to Manual Double/Reinforced Insulation Application around and removal from HAZARDOUS LIVE conductors is permissible Complies with the relevant European Complies...

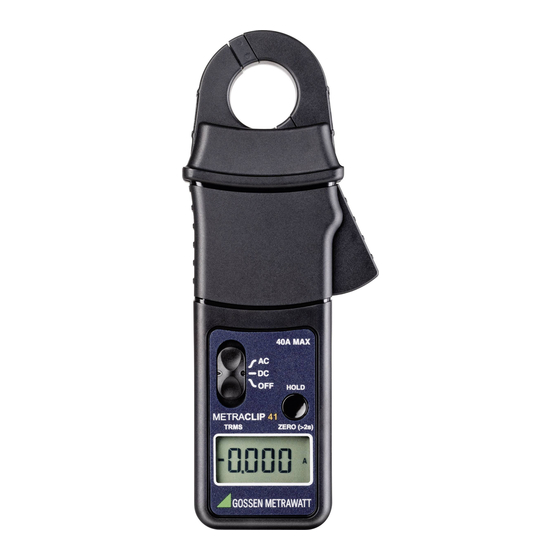

- Page 4 2. INTRODUCTION The METRACLIP 41 / METRACLIP 410 current clamp meters have been designed for reliable and accurate, non-intrusive measurement of AC, DC and complex waveform currents. Using advanced Hall Effect technology METRACLIP 41 / METRACLIP 410 can measure currents...
- Page 5 Battery life…………………….15 hours (Metraclip 41) …………………………………50 hours Display……………………… 4000 count Conductor size……………….25 mm diameter Weight……………………… 235 g FIG 1 Jaws Conventional current direction Tactile Barrier Battery cover Battery cover screw Jaw trigger ON/OFF switch Auto zero button LCD Display 1.800.561.8187 information@itm.com...
- Page 6 4. OPERATING INSTRUCTIONS 4.1 Switch On Move the switch from OFF position to either DC or AC to select the required mode of operation. 4.2 Auto Zero When in DC mode the display zero may change due to thermal shifts and other environmental conditions. To null the display reading depress the Auto Zero button.
- Page 7 Unclamp the clamp meter from the conductor, turn it off using the On - Off switch. Loosen the captive screw which secures the battery cover. Lift the cover through 30° and pull it clea r of the body as shown in Fig 1. Replace the battery and re-fit the battery cover and fasten the screw .
- Page 8 6. WARRANTY Your Metraclip is guaranteed for two years from the date of purchase against defective material or workmanship. If the unit fails during the warranty period, we shall at our discretion, repair or replace it with a new or reconditioned unit provided we are satisfied that the failure is due to defective material or workmanship.
