User Guide
FS24X HART Module
Distributed by:
Relevant Solutions | 888-858-3647 | relevantsolutions.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS24X and is the answer not in the manual?

Questions and answers

Related Manuals for Honeywell FS24X

Summary of Contents for Honeywell FS24X

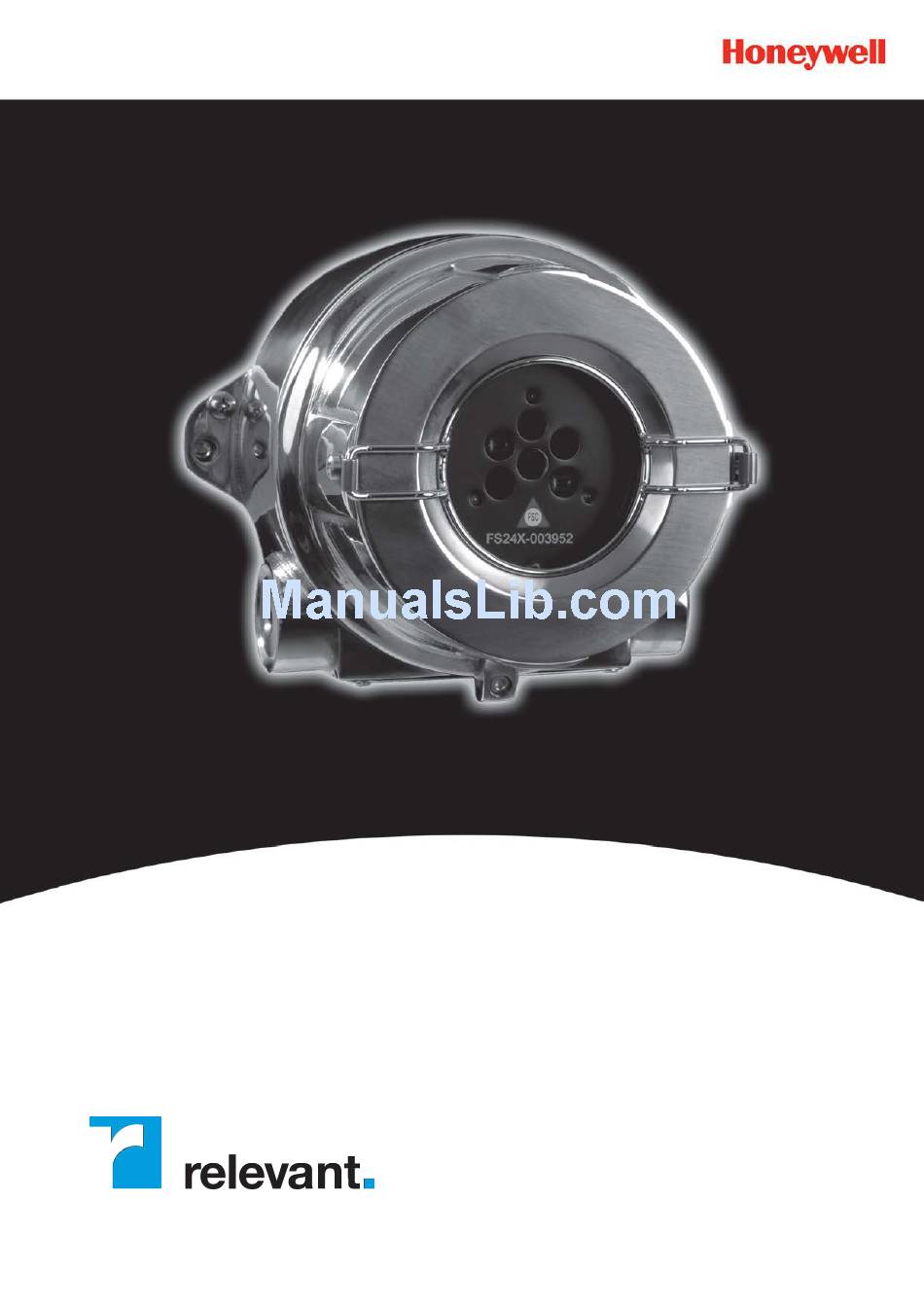

  • Page 1 User Guide FS24X HART Module Distributed by: Relevant Solutions | 888-858-3647 | relevantsolutions.com...

  • Page 2: Table Of Contents

    Honeywell Analytics Fire Sentry Corporation 6349-001 TABLE OF CONTENTS 1. Introduction ..........................4 1.1 Scope ..........................4 1.2 Purpose ........................... 4 1.3 Who should use this document? ..................4 1.4 Abbreviations and definitions ..................4 1.5 References ........................4 2. Device Identification ........................5 3.
  • Page 3 Honeywell Analytics Fire Sentry Corporation 6349-001 12. Performance ..........................12 12.1 Sampling Rates ......................12 12.2 Power-Up ........................12 12.3 Self-Test ........................13 12.4 Command Response Times ....................13 12.5 Busy and Delayed-Response ..................14 12.6 Long Messages ......................14 12.7 Non-Volatile Memory ....................14 12.8 Modes ..........................14 12.9 Write Protection ......................14...

  • Page 4: Introduction

    1. INTRODUCTION 1.1 Scope The Fire Sentry FS24X Flame Detector with HART® complies with HART® Protocol Revision 7.0. This document specifies device features and HART® protocol implementation details. The functionality of this Field Device is described sufficiently to allow its proper application in a process and its complete support in HART-capable Host Applications.

  • Page 5: Device Identification

    The FS24X is designed to detect fire in a hazardous area. This device should be mounted so as to avoid areas that contain non-fire radiant energy sources (such as radiant heaters, high intensity lamps, etc.) in close proximity to the detector’s field of view.

  • Page 6: Local Interfaces, Jumpers And Switches

    The indication of a detected malfunction is shown by reducing the loop current output to 1 mA. The FS24X Flame Detector uses three (3) separate, bright LED’s to indicate the Detector’s status. The Blue or Green LED blinks (flashes) once every ten (10) seconds to indicate a Normal, safe operational condition (i.e.

  • Page 7: Connection Summary

    Honeywell Analytics Fire Sentry Corporation 6349-001 There are no jumpers or switches on the HART® module. Refer to the FS24X Installation Manual for information relating to switch selections on the detector.Write Protection Not Supported. 4.3.3 Connection Summary The diagrams below provide connection detail. The first shows how the FS24X Flame Detector plus the HART module connect to the outside world.

  • Page 8: Device Variables

    Honeywell Analytics Fire Sentry Corporation 6349-001 5. DEVICE VARIABLES This Field Device does not expose any Device Variables. Revision 1.2, Release Date: 15 February 2013 Page 8 of 16...

  • Page 9: Dynamic Variables

    Honeywell Analytics Fire Sentry Corporation 6349-001 6. DYNAMIC VARIABLES Only one Dynamic Variable is implemented. Meaning Units Loop Current 7. STATUS INFORMATION 7.1 Device Status Bit 7 ("Device Malfunction") is set when ever device reports any fault. Refer user manual for description of fault conditions.

  • Page 10: Additional Device Status (Command #48)

    Honeywell Analytics Fire Sentry Corporation 6349-001 7.3 Additional Device Status (Command #48) Command #48 returns nine bytes of data, with status information available in bytes #6 and #8, as indicated in the following table: Byte Meaning Condition 0 to 7...

  • Page 11: Universal Commands

    Honeywell Analytics Fire Sentry Corporation 6349-001 8. UNIVERSAL COMMANDS Command #3 returns PV, units, and Loop Current. The first (PV) and the last (Loop Current) variables are same. Command #14 contains serial number of the device (3 bytes), followed by measurement units (1 byte) and 3 floating point variables for max, min, and span loop current in mA.

  • Page 12: Tables

    Honeywell Analytics Fire Sentry Corporation 6349-001 11. TABLES 11.1 Engineering Unit Type Codes Code Description Note milliamperes Electrostatic Unit of Current 11.2 Loop Current Operating Modes Mode Description Loop Current in mA Loop Current in mA (Point to Point )

  • Page 13: Self-Test

    6349-001 12.3 Self-Test The FS24X executes a self-test sequence every three seconds. All optical sensor channels and the related processing of sensor data are evaluated to ensure that analog circuits, processors, and memory are functional. Depending on the particular function, tests are repeated a number of times to confirm device status prior to declaring a fault.

  • Page 14: Busy And Delayed-Response

    Honeywell Analytics Fire Sentry Corporation 6349-001 12.5 Busy and Delayed-Response The transmitter may respond with "busy" status if a further command is received while self- test is underway. Delayed-response is not used. 12.6 Long Messages The largest data field used is in the response to Command 21: 34 bytes including the two status bytes.

  • Page 15: Annex A. Capability Checklist

    Honeywell Analytics Fire Sentry Corporation 6349-001 ANNEX A. CAPABILITY CHECKLIST Manufacturer, model and revision Honeywell Analytics, FS24X , rev. 1 Device type Detector and Transmitter HART revision Device Description available Number and type of sensors 1 (one external) Number and type of actuators...

  • Page 16: Annex B. Default Configuration

    Honeywell Analytics Fire Sentry Corporation 6349-001 ANNEX B. DEFAULT CONFIGURATION Parameter Default value Lower Range Value Upper Range Value PV Units Sensor type Analytical Number of wires Damping time constant Fault-indication jumper Not Supported Write-protect jumper Not Supported Number of response preambles Revision 1.2, Release Date: 15 February 2013...
  • Page 17 Asia Pacific guidelines. This publication is not intended to form the basis of a contract. Honeywell Analytics Asia Pacific #701, Kolon Science Valley (I) 43 Digital-Ro 34-Gil Guro-Gu Seoul, 152-729...
