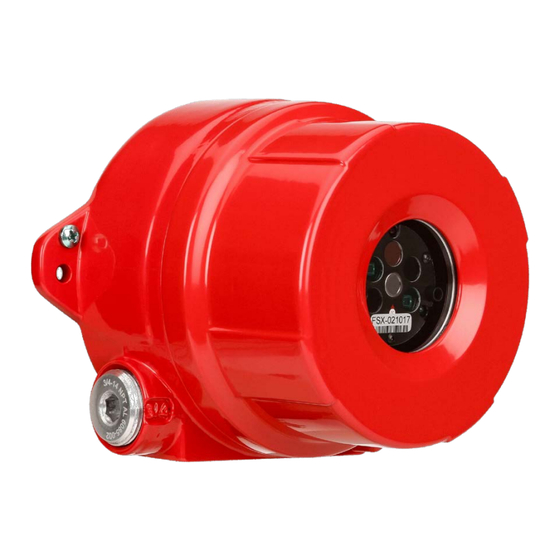

FSX™ Fire and Flame Detectors

Model FS24X™

FS24X QuadBand Triple IR™

User Manual

Multi-Spectrum Infrared Electro-Optical Multi-Spectral Digital WideBand IR Sensor

Radiant Energy Fire and Flame Detector

Table of Contents

Need help?

Do you have a question about the FS24X and is the answer not in the manual?

Questions and answers

Summary of Contents for Honeywell FS24X

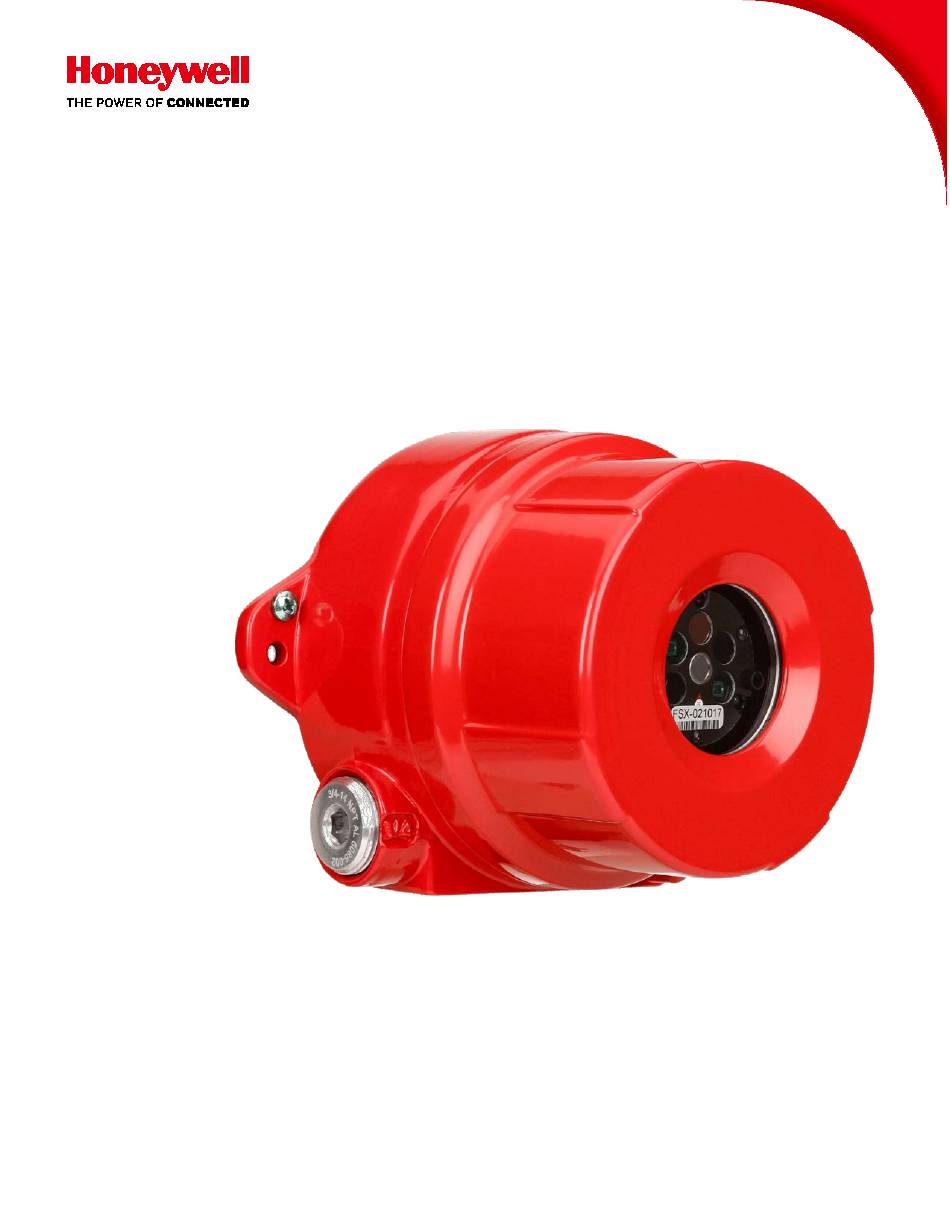

Page 1 FSX™ Fire and Flame Detectors Model FS24X™ FS24X QuadBand Triple IR™ User Manual Multi-Spectrum Infrared Electro-Optical Multi-Spectral Digital WideBand IR Sensor Radiant Energy Fire and Flame Detector...
Page 2 This manual is subject to change without notice. © 2015-2018 by Honeywell International Inc. While this information is presented in good faith and believed to be accurate, Honeywell disclaims the implied warranties of merchantability and fitness for a particular purpose and makes no express warranties except as may be stated in its written agreement with and for its customers.
Page 3: Table Of Contents
Drawings ................................30 4.7.1 Outline and Dimensions ..........................30 4.7.2 Wiring and Terminal Connections ......................31 4.7.3 Detector Markings ............................33 WEEE Directive disposal chart......................... 34 Restricted Materials Chart China RoHS ......................35 INDEX ..................................... 36 Contact Honeywell Analytics ............................37 Honeywell...
Page 4 User Manual Honeywell...
Page 5: Section 1: Introduction
The WideBand IR spectral radiant energy wavelengths sensed by the Quad (4) sensors span from approximately 0.4 to 5.0 microns for the FS24X. The Model FS24X Multi-Spectrum Fire and Flame Detectors are designed and Factory Mutual approved for use in Class Div.
Page 6: Detector Technical Specifications
1.2.3 Environmental Specifications Operating Temperature, Standard: -40° F to +185° F (-40° C to +85° C) for FS24X-2 (110° FoV) Operating Temperature, Standard: -76° F to +185° F (-60° C to +85° C) for FS24X-9 (90° FoV)
Page 7: Features And Benefits
• FSC Windows® based PC Interface User can perform remote FSX Detector diagnostics, real-time status, Real-Time Graphing (RTG), SnapShot data recording, and downloading FirePic’s with Honeywell Analytics’ exclusive FSIM-2 ® USB Interface Unit and easy to use Windows based PC Software.
Page 8: Applications
Rail and Truck Loading/Unloading Terminals Engine Test Cells General Warehouses Gasoline Loading Terminals Power Plants Aerosol Filling Facilities Product Storage Terminals Marine Terminals Paint and Solvent Storage Crude & Product Tank Farms Cold Storage Warehouses Marine Engine Rooms Gas Compressor Buildings Honeywell...
Page 9: Section 2: Installation
Detector’s field of view. 2. The installation shall take into account that the FS24X orientation should be with the base horizontal (see Figure 2-1) as the view angle in this direction is 90°. The vertical angle is 90°.
Page 10 3. There are no serviceable parts inside the Detector puck. If the puck is opened up or tampered with, all warranties are voided. CAUTION: Follow static protection procedures while handling the connectors and the wiring of the Module puck to the Detector. Use a wrist strap connected to earth ground. Honeywell...
Page 11: Opening The Detector
It is necessary to remove the Detector Module puck from the enclosure to access the field connections. CAUTION: Disconnect power before unscrewing the Housing Lid. 1. Loosen the set screw on the enclosure lid (see Figure 2-6). Figure 2-6 2. Turn counterclockwise (CCW) to unscrew the enclosure lid (see Figure 2-7). Figure 2-7 Honeywell...
Page 12 User Manual Opening the Detector (continued) 3. Loosen the three captive screws on the Detector Module puck (see Figure 2-8). Figure 2-8 4. Slide the Detector Module puck out of the enclosure base (see Figure 2-9). Figure 2-9 Honeywell...
Page 13: Detector Connections
Alarm COM 4-20mA Sink Figure 2-10 Fault NO Detector Puck, ( rear view Fault COM +24 VDC DC Return Contacts shown with no power applied Note: Do not attempt to open the Detector Module puck as this voids all warranties. Honeywell...
Page 14 User Manual Figure 2-11. Recommended Wiring Configurations Honeywell...
Page 15 (continued) Figure 2-12 Terminals Note: For EN54 units (FS24X-6 suffix), the outer circuit board must be removed to set the user configurations and then placed back onto the module after making the adjustments ATTENTION: FSX Power-Up – After the application of 24 VDC input power or resetting the Detector, wait a mimimum of (thirty) 30 seconds to allow the Detector’s sensors to normalize to...
Page 16: Installation Practices
6. To ensure optimum performance, shield the detector face from intense bright light sources when first energized. The Detector is now ready for Power-Up. o n Power-Up, the Fault Relay will change status if the Factory Default Setting is used (Section 3.2). Honeywell...
Page 17: Start-Up And Commissioning
Detectors.. Additionally, do not use these Test Lamps to activate other Honeywell Analytics Detectors (nor any other conventional fire and flame detectors). Do not use other Honeywell Analytics Test Lamps or non-Honeywell Analytics Test Lamps to test the FSX Detectors.
Page 18 Remember to disable the outputs, as a full functional test includes activating the ALARM outputs. A Honeywell Analytics Test Lamp must be used for this test (Section 4.4). Point the Test Lamp directly at the front of the Detector (on axis as much as possible, within a distance of about 1 to 25 feet). Activate the Test Lamp by pressing and holding its pushbutton.
Page 19: Section 3: Operation
WideBand IR regions from approximately 1.1 to 3.0 microns and 3.0 to 5.0 microns. This allows the FS24X Detectors to sense over 85% of the total radiant “Blackbody Energy” emitted by a fire. Honeywell Analytics’ Detectors sense and measure the radiant energy generated by a fire at the speed of light.
Page 20: Caution - Warning
SW2-5 No Verify Time 5 Sec Verify Time 10 Sec Verify Time 20 Sec Verify During a fire, model FS24X-911-24-5 Time detectors will alarm in non-latching mode and will unlatch when the fire EOL Resistor SW2-6 decreases. If the condition persists...
Page 21: Led Status Indicators
User Manual LED Status Indicators The Model FS24X Detector uses three (3) separate, bright LED’s to indicate the Detector’s status. • The Green LED blinks (flashes) once every ten (10) seconds to indicate a Normal, safe operational condition (i.e. no Faults and no Alarms). The Green LED is OFF when no external 24 VDC input power is applied to the Detector.
Page 22: Fault Conditions
Dirty Window Lens (Yellow LED flashes, the Yellow LED is ON [solid] for all other Faults). Maintenance After the FS24X Detector is installed and commissioned, there is little maintenance required. However, a complete “end-to-end” test of the entire fire detection system should be performed periodically depending on the application.
Page 23: Section 4: Appendices
Honeywell Analytics warrants its Products against defects in material and workmanship under normal use and service for a period of three years from the date of shipment as described herein. Honeywell Analytics, at its option, will repair or replace, at no charge, such products found to be defective during the warranty period provided that they are returned in accordance with the terms of this warranty.
Page 24: Product Variations
4.2.2 Ordering Examples FS24X-912-21-1: QuadBand Triple IR Detector, 90° Field of View, General Applications (-40°C to +85°C) with Fault, Alarm, and Auxiliary Relays, HART over 4-20mA, Aluminum Enclosure with two ¾ inch NPT Conduit Entries, Approvals: FM, cFM, ATEX, IECEx.
Page 25 FSX flame Detectors is 100 ft. to a 1 sq. ft. n-heptane pan fire and for SS4 Detectors it is 45 ft. to a 1 sq. ft. pan n-heptane fire. All other Honeywell Flame Detectors have fixed sensitivity settings that cannot be changed in the field. It is important to note that Flame Detectors do not have a distance limitation for detection of fires, if the detector has an unobstructed line of sight to the fire.
Page 26 Factory. All other aspects are unchanged between the standard and dash five versions. The current version of the dash five FS24X is available with a 90° field of view and not a 110° field of view. Also, we would recommend 90° Field of View Flame Detectors in any high background IR or flare energy applications rather than the wider 110°...
Page 27: Digital Communication Options
TL-2055 Test Lamp is as follows. If the FS24X set at Highest Sensitivity alarms to a fully charged TL-2055 Test Lamp at a distance between 1 and 25 feet, then the FS24X is in normal operating condition.
Page 28: Field Of View Restrictor
EN54-10 standard. Additional Performance Specifications 4.6.1 Flame Response Sensitivity The following table provides FS24X typical INDOOR response times and distance to various fuels: FS24X QuadBand (Very High [4] Sensitivity) Typical Fuel Fire Size...
Page 29: False Alarm Immunity
Source at 3 feet / 91.44 centimeters Pelican Flashlight 1 foot / 30.48 centimeters Fire at 200 feet / 60.96 meters Source at 3 feet / 91.44 centimeters Incandescent Lamp 1 foot / 30.48 centimeters Fire at 200 feet / 60.96 meters Honeywell...
Page 30: Drawings
User Manual Drawings 4.7.1 Outline and Dimensions Figure 4-3 Outline & Dimesional Drawing for FS24X Figure 4-4 Outline & Dimesional Drawing for SM4 Honeywell...
Page 31: Wiring And Terminal Connections
1. Cable shield must be grounded at one end only, at the Control Panel. Coil and tape cable shield at the Detector end. 2. Set SW3 (rotary switch) to position one (1) for Source current wiring. 3. Set SW3 (rotary switch) to position zero (0) for Sink current wiring. Honeywell...
Page 32 3. Fault relay contacts shown with no power applied. During normal operation and with no Fault, this relay will De-Energize and the N.O. (normally open) contacts will close. 4. EOL (End-Of-Line) device shall be installed as required and supplied by the Fire Alarm Panel. Honeywell...
Page 33: 4.7.3 Detector Markings
Type Number dcolor Color CPR Number FS24X-2 FS24X-2 FS24X-2 FS24X-2 FS24X-2 FS24X-2 FS24X-2 FS24X-2 FS24X-2 FS24X-2 FS24X-2 FS24X-2 Label, FS24X- 0.020” 316 QuadBand 1175a/02 -60ºC -60ºC -60ºC 9, ss, with Stainless Triple IRTM FM/Canada/U Steel +110ºC +75ºC +60ºC FS24X-9 0832-CPR-...
Page 34: Weee Directive Disposal Chart
Entsorgungsanlagen gegeben werden. RAEE. Per ulteriori informazioni sullo Um weitere Informationen zum Recycling smaltimento di questo prodotto dieses Produkts zu erhalten wenden Sie contattare l’ente locale preposto, il sich an Ihre Kommunalbehörde, Ihren distributore o il produttore. Lieferanten oder den Hersteller. Honeywell...
Page 35: Restricted Materials Chart China Rohs
User Manual Restricted Materials Chart China RoHS Honeywell...
Page 36: Index
Sensitivity, 4-6, 7, 13, 17, 22, 23, 24 Start-Up and Commissioning, 14 Hazardous Locations, 4, 5, 8, 14 Temperature, 19 Test Lamp, 14, 19, 22 Installation Practices, 13 Trouble, 19 Warranty, 20 LEDs weatherproof, 13 green, 7, 18 red, 7, 18 Honeywell...
Page 37: Contact Honeywell Analytics
Honeywell Analytics Asia Pacific Co., Ltd. #701 Kolon Science Valley (1) 43 Digital-Ro 34-Gil, Guro-Gu Seoul, 152-729 Korea Email: analytics.ap@honeywell.com Internet These Honeywell websites may be of interest to Industry Solution customers. Honeywell Organization Corporate www.honeywell.com Honeywell Analytics www.honeywellanalytics.com Telephone Contact us by telephone at these numbers.
