AGP SCS7 Instruction Manual

Stone cutting circular saw
Hide thumbs Also See for SCS7:
Table of Contents

Advertisement

Quick Links

Download this manual

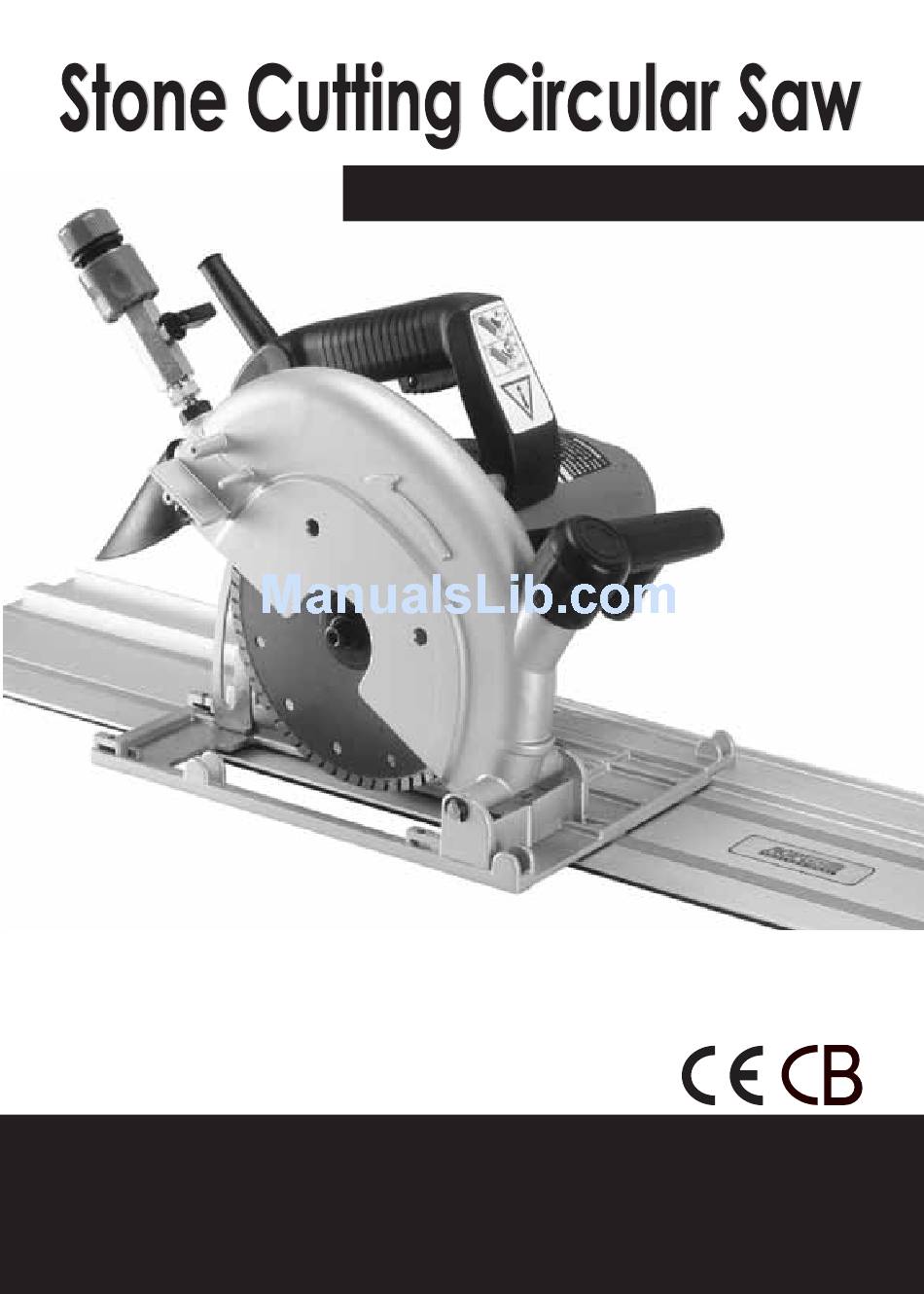

INSTRUCTION MANUAL
ORIGINAL INSTRUCTIONS
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
CAUTION:
For tools equipped with overload protection, when the motor shuts off due to overload,
always run the machine with no load for at least 3 minutes to reduce temperature before
returning to operation to avoid burn-out of the motor.
1
Version:20140122

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCS7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGP SCS7

Summary of Contents for AGP SCS7

  • Page 1 INSTRUCTION MANUAL ORIGINAL INSTRUCTIONS For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. CAUTION: For tools equipped with overload protection, when the motor shuts off due to overload, always run the machine with no load for at least 3 minutes to reduce temperature before returning to operation to avoid burn-out of the motor.

  • Page 2: Specifications

    SPECIFICATIONS See machine nameplate Voltage Power 110V:1680W 220V:1800W No Load min 5800 Arbor 22.23mm (7/8") Max. Blade Diameter 180mm Max. Cutting Depth 55mm Weight 6.7kg (14.74Lbs) Quick-release water hose coupling Main handle Vacuum Port Cap Water Valve Secondary handle Spindle Lock Arbor Bolt Sighting notches On/Off trigger switch...

  • Page 3: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS When operating a power tool outdoors, use an extension cord suitable for outdoor use. WARNING! Read all safety warnings and Use of a cord suitable for outdoor use reduces all instructions. Failure to follow the the risk of electric shock. I f o p e rat i n g a p owe r to o l i n a d a m p warnings and instructions may result in location is unavoidable, use an ear th...
  • Page 4 ensure these are connected and properly used. 5) SERVICE Use of dust collection can reduce dust-related Have your power tool serviced by a qualified hazards. repair person using only identical replacement parts. This will ensure that the safety of the power 4) POWER TOOL USE AND CARE tool is maintained.

  • Page 5: Specific Safety Rules

    SPECIFIC SAFETY RULES 14. Important: After completing the cut, release power switch and wait for coasting Keep hands away from cutting area and blade to stop completely before putting the blade at all times! Keep your second hand saw down on an auxiliary handle.

  • Page 6: Electrical Connection

    dust absorption system and wear a suitable Total Extension Cord Size (AWG) dust protection mask and remove deposited Cord Length (feet) dust with a vacuum cleaner. ELECTRICAL CONNECTION The network voltage must conform to the voltage indicated on the tool name plate. Under no circumstances should the tool be used when the UNPACKING power supply cable is damaged.
  • Page 7 INSTALLING THE DIAMOND BLADE TO ADJUST DEPTH OF CUT- DISCONNECT -ENSURE THAT TOOL IS DISCONNECTED FROM TOOL FROM POWER SOURCE. POWER SOURCE. TO ADJUST THE DEPTH OF CUT TO INSTALL THE BLADE Loosen the Depth Stop Lever by pushing it Remove any accumulated debris in the forwards and adjust the depth of cut to the desired guards and around the arbor.

  • Page 8: Water Feed System

    VACUUM DUST COLLECTION WARNING: Check all connections of the water feed system to ensure there are no leaks. Inspect hoses and other critical parts which There is a vacuum port provided on the blade could deteriorate. cover to collect dust when operating. Simply attach the vacuum cleaner hose to the WARNING: If you detect a leak in any part of the vacuum port.

  • Page 9: Electronic Overload Protection

    distance from the edge. Then the trigger switch will be free to be pressed to start the machine. To mount, insert the Parallel Guide into the slot in the Base Plate and tighten the Thumb Knobs at the To switch off: desired position.

  • Page 10: Operation

    OPERATION S H A R P E N I N G D U L L D I A M O N D BLADES 1. Adjust the depth of cut. 2. Draw a cutting line before beginning cutting so If a lot of sparks are seen while cutting, this is a sign it is easy to make straight cuts.
  • Page 11 See fig.9. To replace: simply remove the brush caps (47) and withdraw the old brushes (46). Replace with new brushes (always replace as a pair) ensuring that they align properly and slide freely. Then replace the brush caps. See fig.10. Brush Cap Fig.10 If the replacement of the power supply...
  • Page 13 WIRING...

  • Page 14: Exploded View

    EXPLODED VIEW...

  • Page 15: Parts List

    PARTS LIST Parts Name Q'TY Parts Name Q'TY ARBOR BOLT M8 × 20 WAVE SPRING WASHER FLAT WASHER Ø8 × Ø20 × 3 STATOR SCREW M5 × 60 OUTER FLANGE STATOR INNER FLANGE Ø21.9 MOTOR HOUSING INNER FLANGE Ø22.2 FLAT WASHER Ø5 × Ø12 × 1 FLAT HEAD SCREW M4 ×...
