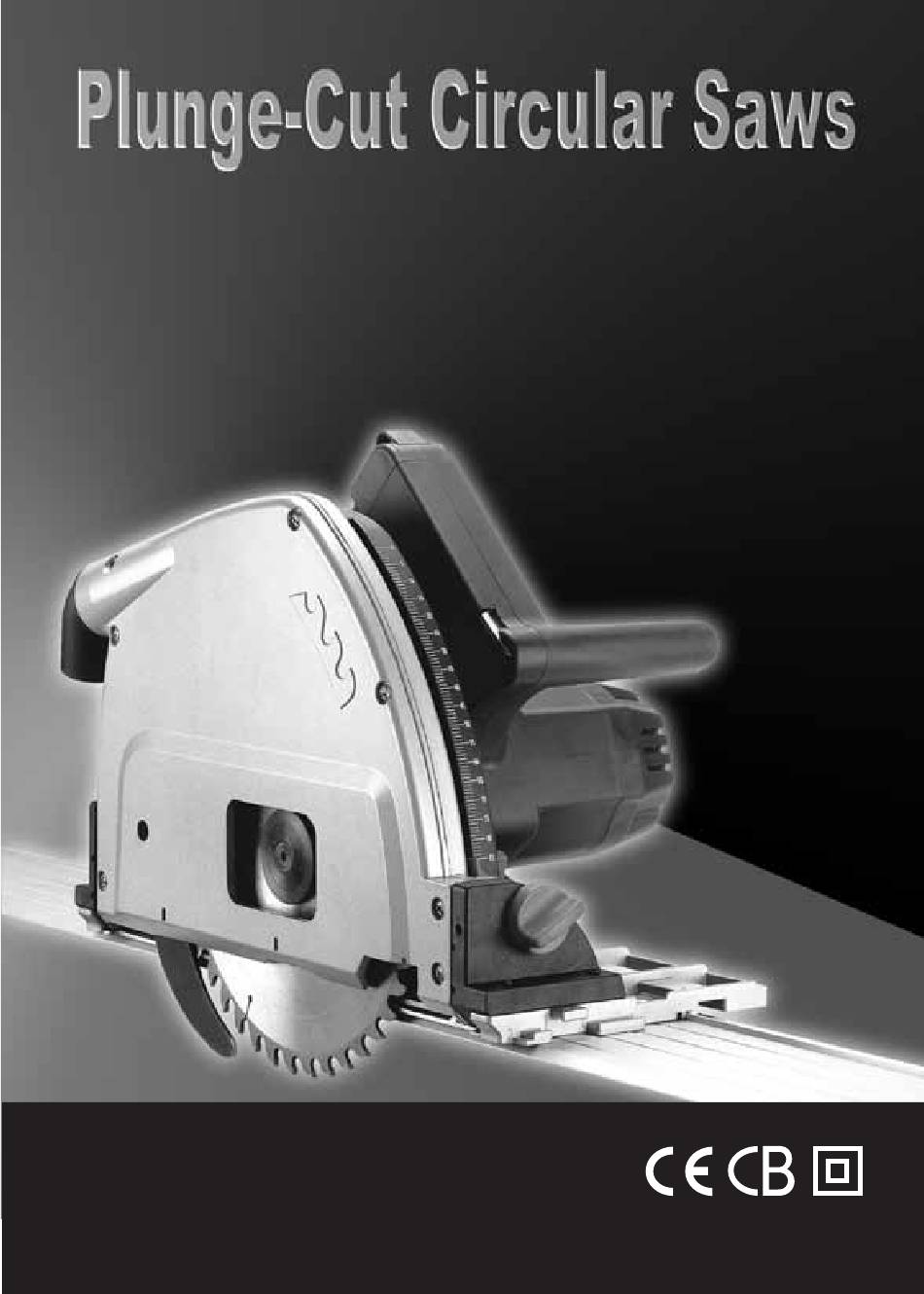

AGP DS2300 Original Instructions Manual

Plunge-cut circular saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

ORIGINAL INSTRUCTIONS
For your personal safety,
READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
Warning:
For tools equipped with over load protection, when motor
has shut down off due to over load, always run machine
with no load for at least 3 minutes to reduce temperature
before returning to operation to avoid burn out of the motor.
Version:20130826

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS2300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGP DS2300

Summary of Contents for AGP DS2300

  • Page 1 ORIGINAL INSTRUCTIONS For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Warning: For tools equipped with over load protection, when motor has shut down off due to over load, always run machine with no load for at least 3 minutes to reduce temperature before returning to operation to avoid burn out of the motor.

  • Page 2: Specifications

    SPECIFICATIONS Model 1600W Model 1150W Model Voltage See machine nameplate No load min 5000 5500 Power input 1600W 1150W Bevel capability 0~45 deg. 0~45 deg. Max blade diameter 230mm (9 in.) 160mm (6-1/4 in.) Available arbor hole diameters* 30mm, 25.4mm (1 in.), 20mm 20mm 90 deg.

  • Page 3: Personal Safety

    3) PERSONAL SAFETY a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 4: Specific Safety Rules

    Symbols used in this manual V……..volts read these instructions A……..amperes Hz……..hertz do not dispose of electric tools, accessories and W……..watt packaging together with household waste ~………..alternating current material ………..no load speed ……...revolutions or reciprocation per minute ………..class II tool SPECIFIC SAFETY RULES DANGER: Keep hands away from cutting area and blade.
  • Page 5 the work or pull the saw backward while the blade is in motion or KICKBACK may occur.Investigate and take corrective actions to eliminate the cause of blade binding. C).When restarting a saw in the workpiece, center the saw blade in the kerf and check that teeth are not engaged into the material.

  • Page 6: Functional Description

    matter. 16. Check the blade for cracks or other damage before operation. Replace cracked or damaged blade immediately. 17. Never start the tool with the workpiece against the blade. 18. Allow the motor to achieve full speed before cutting. 19. Important: After completing the cut, release power switch and wait for coasting blade to stop completely before putting the saw down.

  • Page 7: Carton Contents

    CAUTION: Do not overheat the blade tips. Use of undue force will not speed up the cutting operation. Allow the tool to determine the best feed rate. CAUTION: When sawing plastics, avoid melting the plastic. 2. Electrical connection The network voltage must conform to the voltage indicated on the tool name plate. Under no circumstances should the tool be used when the power supply cable is damaged.
  • Page 8 ● INSTALLING THE BLADE - ENSURE THAT TOOL IS DISCONNECTED FROM POWER SOURCE. Whenever the blade is to be changed or the riving knife is to be adjusted, The machine must first be locked into its BLADE CHANGE POSITION. To do this: Thumb release carriage lock Reach in and engage the plunge lock lever by pulling it...

  • Page 9: Riving Knife

    ● TO ADJUST DEPTH OF CUT-DISCONNECT TOOL Depth scale FROM POWER SOURCE. Adjust the depth of cut as desired. A depth scale is provided. To adjust the depth of cut: Loosen the depth lock knob about 1-1/2 turns. While pushing in slightly, slide the depth stop up or down as desired and retighten.

  • Page 10: Trigger Switch

    ● HOW TO USE THE SIGHTING NOTCH To aid in free-hand cutting, a 0 degree sighting notch is located at the front of the base. See fig 9 Align the cutting line on the workpiece with the sighting notch. Additionally, the blade is visible through small gaps in the cover for aligning the blade perfectly with the intended line of cut.
  • Page 11 ● HOW TO USE THE TOOL Effective control of this powerful saw requires two-handed operation for maximum protection. Do not use this tool continuously over 30 minutes. Support the work properly and to hold the saw firmly WITH BOTH HANDS to prevent loss of control which could cause personal injury. Always hold the side handle with the left hand and the rear handle with the right hand for proper hand support of the saw.
  • Page 12 The rubber sighting strip: The sighting / anti-splinter strip must be cut to size along its full length before the first use. The rubber strip must be backed by a wood workpiece when it is cut for the first time. CAUTION: Failure to use wood backing on the first cut may result in the rubber strip being torn or damaged by the blade Once it is cut to size, it will perfectly correspond to the cutting edge and will also help to protect the wood from...
  • Page 13 WIRING...
  • Page 14 EXPLODED VIEW 1600W Model...
  • Page 15 PARTS LIST 1600W Model Parts Name Q'TY Parts Name Q'TY PAN HEAD SCREW M4 x 15 PLUNGE SPRING ø2 x ø19.5 x ø23.5 x 15T x 150L OUTER SAFETY COVER PLUNGE SPRING GUIDE ARBOR BOLT M8 x 25 SET SCREW M4 x 12 OUTER FLANGE CIRCLIP S-14...
  • Page 16 EXPLODED VIEW 1150W Model...
  • Page 17 PARTS LIST 1150W Model Parts Name Q'TY Parts Name Q'TY PAN HEAD SCREW M4 x 15 44~45 OUTER SAFETY COVER BEARING 608 zz ARBOR BOLT M8 x 25 PLUNGE LOCK SPRING Ø1 x Ø8.2 x Ø10.2 x 9.5T x 25L OUTER FLANGE SCREW M5 x 37 SAWBLADE...

This manual is also suitable for:

Ds1600
