AGP CS200 Original Instructions Manual

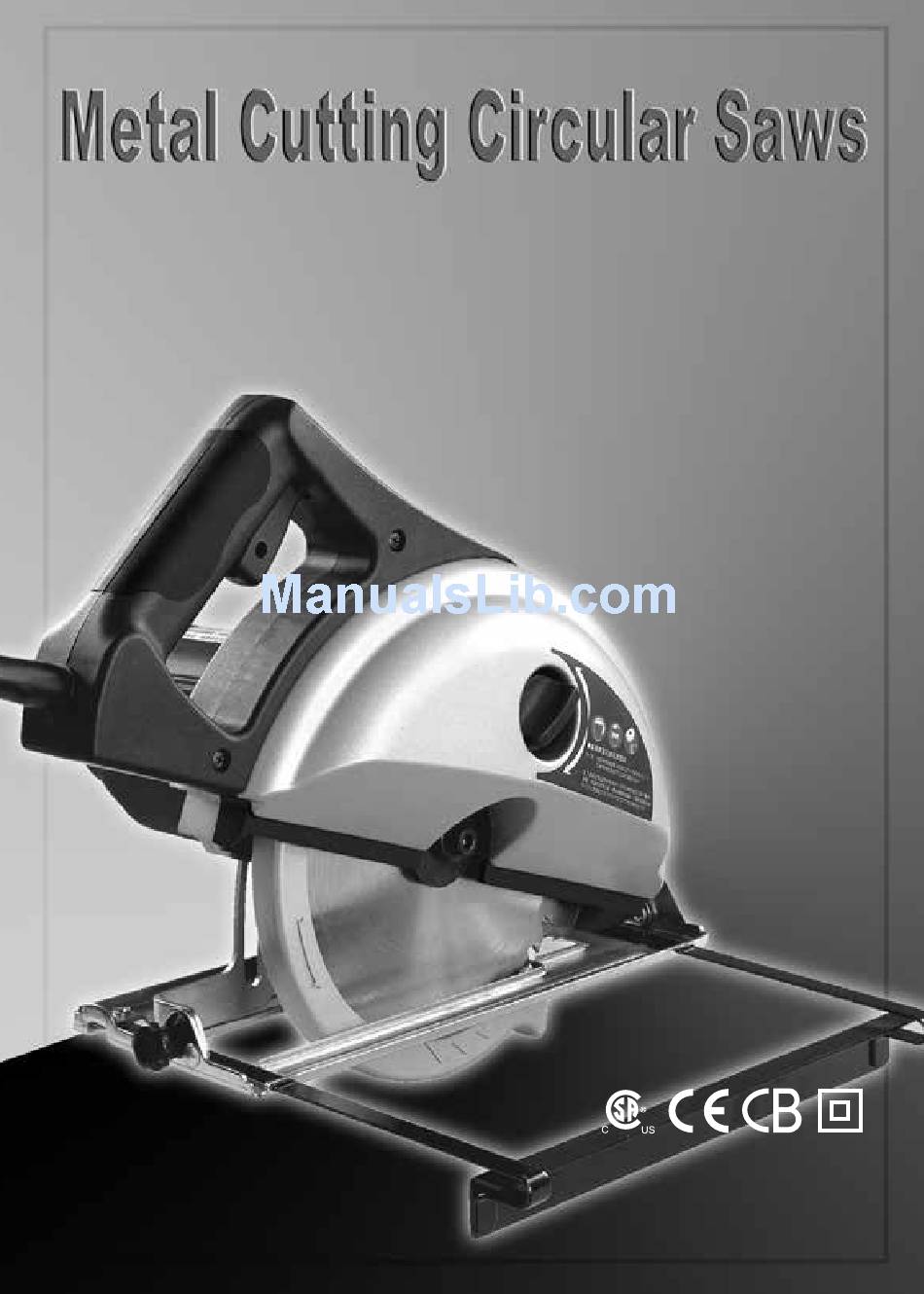

Metal cutting circular saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Warning:
Only tools equipped with over load protection, when motor has been cut off due to over
load, always switch on machine with no load for at least 3 minutes to reduce temperature
before switch on again to avoid burn out to the motor.
ORIGINAL INSTRUCTIONS
For your personal safety, READ and
UNDERSTAND before
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
using.
Version:20130603

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS200 and is the answer not in the manual?

Questions and answers

Related Manuals for AGP CS200

Summary of Contents for AGP CS200

  • Page 1 ORIGINAL INSTRUCTIONS For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Warning: Only tools equipped with over load protection, when motor has been cut off due to over load, always switch on machine with no load for at least 3 minutes to reduce temperature before switch on again to avoid burn out to the motor.
  • Page 2 SPECIFICATIONS Model 200mm 230mm N Voltage 110-120V~ 50-60Hz, 220-240V~ 50-60Hz No load min 3700 2200 Power input 1700W 1700W Blade 200mm (8 in.) 230mm (9 in.) Bevel 0~45 deg. 0~45 deg. Arbor 30mm, 25.4mm (1 in.), 30mm, 25.4mm (1 in.), Straight: 67mm (2-5/8 in.) Straight: 80mm (3- 1/4 in) Max cutting depth...

  • Page 3: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 4 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

  • Page 5: Specific Safety Rules

    ..Warning of general danger .…class II tool ..read these instructions ..Always wear eye protection ..Always wear a dust mask..Always wear hearing protection ..Wear safety-approved hard hat ..DANGER! Keep hands away from cutting area and the blade. do not dispose of electric tools, accessories and packaging together with household waste material SPECIFIC SAFETY RULES DANGER: Keep hands away from cutting area and blade.
  • Page 6 uncontrolled saw to lift up and out of the workpiece toward the operator; when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the • motor reaction drives the unit rapidly back toward the operator; if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can •...

  • Page 7: Intended Use

    movement and pinching as the cut nears completion. 14. Allow the blade to come to a complete stop before removing or securing workpiece, or changing workpiece angle. 15. Check the inside surfaces of the arbor flanges as well as the sides of the blade for freedom from any foreign matter.

  • Page 8: Carton Contents

    4. Saw Blades Only use saw blades with a diameter in accordance with the markings on the tool name plate: Only use saw blades with blade set (cutting width) of 1.8 mm to 3.6 mm and blade core thickness of minimum 1.5mm to maximum 3.0mm.

  • Page 9: Installing The Blade

    INSTALLING THE BLADE- Ensure That Tool Is Disconnected From Power Source Remove any accumulated debris in the guards and around the arbor. Check the lower retracting blade guard (6) to ensure that it is in working order. Clean the inner arbor flange(3). Orient the flange so that the correct bore size faces the blade and place the new blade on the arbor, making sure that the teeth point forwards.
  • Page 10 HOW TO USE THE SIGHTING NOTCH Sighting notch Fig.6 To aid in free-hand cutting, a sighting notch is located at the front of the base (15). See fig. 6 Align the cutting line on the workpiece with the sighting notch. Make the cut. Use the right-hand notch (between the two marking dots) for straight cuts and the left- Straight cut 45 Degree...

  • Page 11: How To Use The Tool

    If blade guard movement is sluggish or if binding exists, return the saw to your nearest AUTHORIZED SERVICE CENTER for repair. THE VARIABLE SPEED CONTROL / SOFT START UNIT (Optional) See fig.10 Some types of material cut better and/or the blade will last longer at a slower speed.

  • Page 12: Maintenance

    workpiece. Increase feed pressure as the blade cuts through the thicker cross-sections (to maintain minimum “sparking”). Decrease the feed pressure as the blade cuts through the thinner cross sections (to maintain motor speed and avoid overloading the machine). After completing the cut, release the power switch and wait for the coasting blade to stop completely before putting the saw down.
  • Page 13 WIRING...
  • Page 14 200mm EXPLODED VIEW...
  • Page 15 200mm PARTS LIST Parts Name Q'TY Parts Name Q'TY ARBOR BOLT M8 x 16 BUMP STOP OUTER ARBOR FLANGE MAIN BODY CASTING INNER FLANGE Ø20, Ø30, 25.4, 5/8 SCREW M4 x 8 FLAT WASHER M8 x 20 x 3 BALL BEARING 6201 2RS BEARING COVER PLATE MOTOR CABLE COVER PLATE LOWER RETRACTING BLADE GUARD...
  • Page 16 230mm N EXPLODED VIEW...
  • Page 17 230mm N PARTS LIST Parts Name Q'TY Parts Name Q'TY ARBOR BOLT M8 x 16 MOTOR CABLE COVER PLATE OUTER ARBOR FLANGE BLADE LOCK COVER INNER FLANGE 20/30mm FAN SHROUD INNER FLANGE 20/25.4mm SIDE HANDLE INNER FLANGE 5/8" ARMATURE FLAT WASHER Ø8 x Ø20 x 3 BALL BEARING 6200-LLU BEARING COVER PLATE PAN HEAD SCREW W / SPRING WASHER M5 x 60...
