AGP 0.75KW240V Original Instructions Manual

Wet tile saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

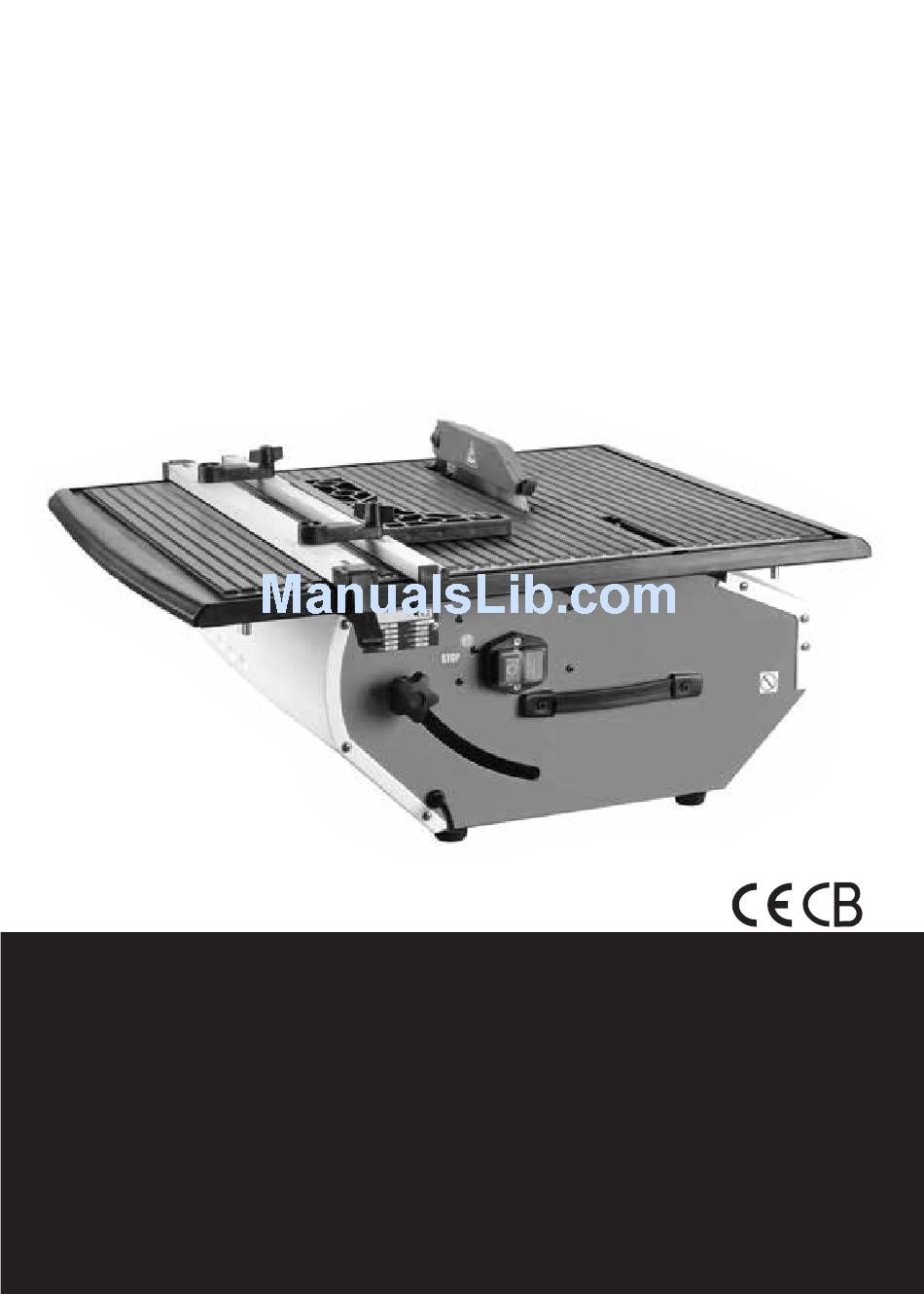

ORIGINAL INSTRUCTIONS
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
WET TILE SAW
Warning:
On tools equipped with over load protection, when motor has been cut off due to over load,
always switch on machine with no load for at least 3 minutes to reduce temperature before
returning to operation to avoid burn out of the motor.
Version:20160225

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0.75KW240V and is the answer not in the manual?

Questions and answers

Related Manuals for AGP 0.75KW240V

Summary of Contents for AGP 0.75KW240V

  • Page 1 ORIGINAL INSTRUCTIONS For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. WET TILE SAW Warning: On tools equipped with over load protection, when motor has been cut off due to over load, always switch on machine with no load for at least 3 minutes to reduce temperature before returning to operation to avoid burn out of the motor.
  • Page 2 SPECIFICATIONS Motor Type Single Phase AC Induction Power Output 800W Voltage See machine nameplate No Load/min-1 3000 (50Hz), 3600 (60Hz) Max. Blade Diameter 230mm (9") Blade Bore 25.4mm (1") Bevel Capability 0-45 deg. Max. Cutting Depth-straight 48mm (1-7/8") Max. Cutting Depth- at 45 deg. 37mm (1-7/16") Table Cutting Width -Left 305mm (12")
  • Page 3 GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 4 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
  • Page 5 ..DANGER! Risk of Getting Cut by Sawblade Operate Carefully ..Warning of general danger ..read these instructions ..Always wear eye protection ..Always wear a dust mask..Always wear hearing protection ..Wear safety-approved hard hat ..DANGER! Keep hands away from cutting area and the blade. ..do not dispose of electric tools, accessories and packaging together with household waste material ELECTRICAL CONNECTION...

  • Page 6: Additional Safety Rules

    ADDITIONAL SAFETY RULES WARNING: Never operate a damaged machine. Always tag a damaged machine and take it out of service until repairs can be made. WARNING: Do not attempt to groove or rabbet (rebate) with this machine. This machine is for cutting only.

  • Page 7: Diamond Blades

    DIAMOND BLADES Allowed types of blades This machine may use continuous rim diamond blades only. NOTE: Segmented diamond blades may not be used on this machine. • Only diamond blades of 230mm (9”) may be used. • Blade bore must be 25.4mm (1”) • Blade thickness must be at least 1.5mm and no greater than 2.2mm ABOUT DIAMOND BLADES Diamond blades consist of a steel core with diamond segments added to its periphery. Diamond blades are available for different hardnesses of materials; natural stone, ceramic, porcelain, glass, etc.

  • Page 8: Mounting The Blade

    MOUNTING THE BLADE First make sure that the machine is unplugged. Remove the blade guard by loosening the butterfly screw and Locking pin lift away. Reach under the edge of the table and pull each of the 4 locking pins against the spring and rotate 90 degrees, this will allow the table to be lifted away.
  • Page 9 the butterfly screw and adjust so that it is parallel and as close as possible to the surface of the tile to be cut. Then retighten the Blade Guard screw. Readjust whenever cutting a different thickness tile. Keeping the blade guard as close as possible is safer and prevents excessive loss of water.

  • Page 10: Bevel Cuts

    BEVEL CUTS The motor assembly may be tilted up to 45 degrees for performing Bevel angle knob bevel cuts. To adjust the bevel angle, loosen the two hand knobs on the right and left sides of the machine, adjust to the desired angle, and then retighten the knobs.

  • Page 11: Maintenance And Cleaning

    Pressure Level Vibration Level Lwa(dB)ISO 3744 Lpa(dB) ISO4871 G en NF ENV 25349 0.75KW240V 0.09 0.75KW115V 0.07 If the replacement of the power supply cord is necessary, this has to be done by the manufacturer or their agent in order to avoid a safety hazard.
  • Page 12 WIRING...
  • Page 14 EXPLODED VIEW...
  • Page 15 PARTS LIST Parts Name Q'TY Parts Name Q'TY BLADE GUARD WIRE LEAD NUT M6 POWER SUPPLY CORD BUTTERFLY BOLT HAND KNOB TABLE LOCKING PIN FLAT WASHER Ø13 xØ24 x 2.5 SPRING Ø1 x Ø8.1 x 5T x 25.7L REAR STRUT-LONG ROLL PIN Ø3.5 x 10 REAR STRUT-SHORT EXTERNAL CIRCLIP S-8...

This manual is also suitable for:

0.75kw115v
