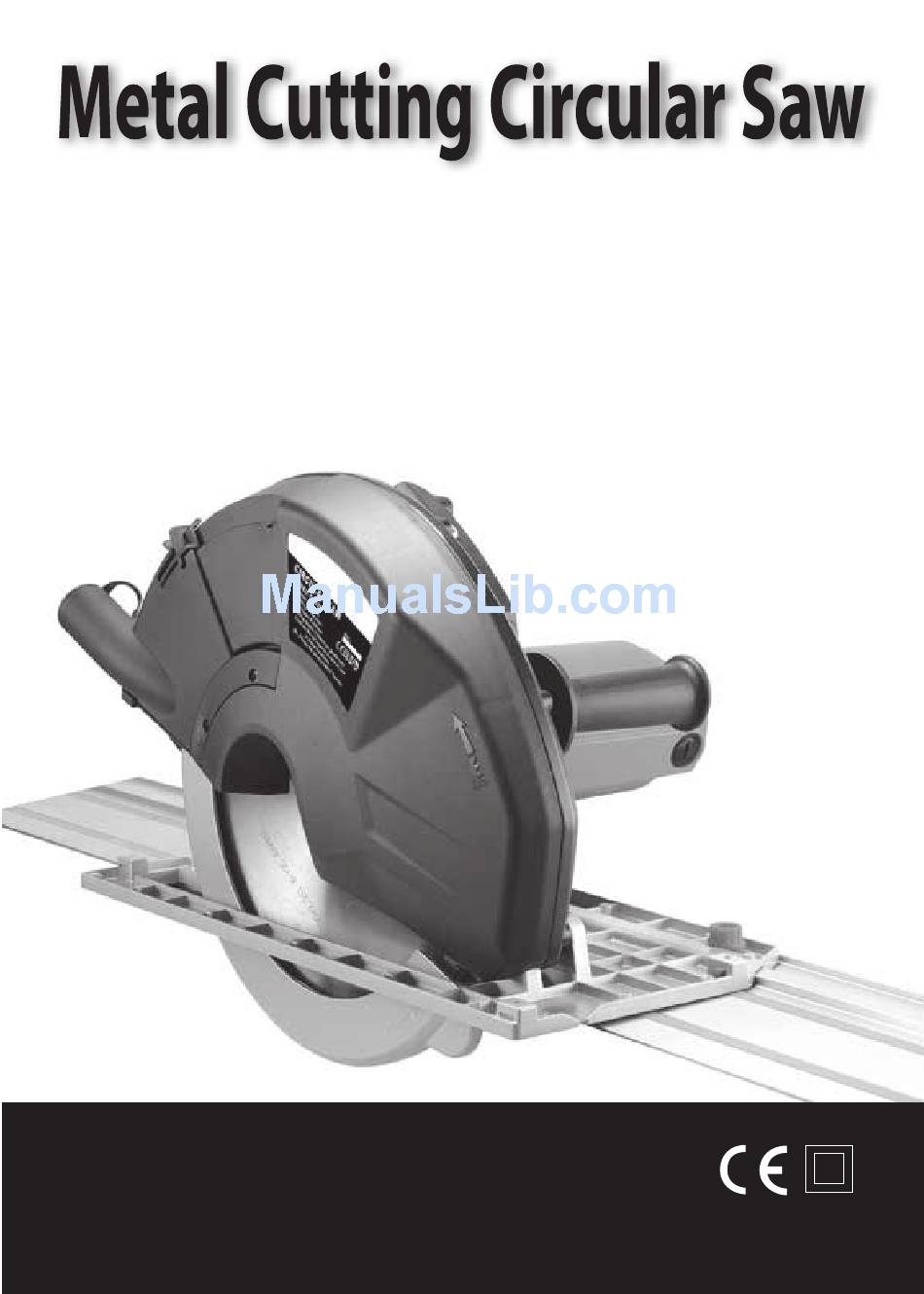

ORIGINAL INSTRUCTIONS
For your personal safety,
READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
Warning:
For tools equipped with over load protection, when motor has shut
down off due to over load, always run machine with no load for at least
3 minutes to reduce temperature before returning to operation to avoid
burn out of the motor.
Version:20130909
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AGP CS320
Summary of Contents for AGP CS320
- Page 1 ORIGINAL INSTRUCTIONS For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Warning: For tools equipped with over load protection, when motor has shut down off due to over load, always run machine with no load for at least 3 minutes to reduce temperature before returning to operation to avoid burn out of the motor.
-
Page 2: Functional Description
SPECIFICATIONS Voltage 110-120V~ 50-60Hz , 220-240V~ 50-60Hz No load min 1700 Power input 110-120V: 1700W, 220-240V: 1800W Max blade diameter 320mm Arbor hole diameter * 25.4mm (1 inch) Max cutting depth 121mm (on guide rail) Net weight 8 kg (17.6 lbs.) *Flanges supplied vary with different markets. - Page 3 GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.
- Page 4 your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach.
-
Page 5: Specific Safety Rules
W……..watt ~………..alternating current ………..no load speed …..revolutions or reciprocation per minute .…...class II tool ..read these instructions ..Always wear eye protection ..Always wear a dust mask..Always wear hearing protection do not dispose of electric tools, accessories and packaging together with household waste material SPECIFIC SAFETY RULES DANGER: Keep hands away from cutting area and blade. - Page 6 kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an • uncontrolled saw to lift up and out of the workpiece toward the operator; when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the •...
- Page 7 Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris. Lower guard may be retracted manually only for special cuts such as "plunge cuts"...
- Page 8 CAUTION: Do not overheat the blade tips. Use of undue force will not speed up the cutting operation. Allow the tool to determine the best feed rate. 2. Electrical connection The network voltage must conform to the voltage indicated on the tool name plate. Under no circumstances should the tool be used when the power supply cable is damaged.
-
Page 9: Installing The Blade
INSTALLING THE BLADE ENSURE THAT TOOL IS DISCONNECTED FROM POWER SOURCE. To install the blade: Remove any accumulated debris in the guards and around the arbor. Clean the inner arbor flange(3). Orient the flange so that the Inner Arbor correct side faces the blade and place the new blade on the arbor, Flange making sure that the teeth point forwards. - Page 10 TO ADJUST DEPTH OF CUT -DISCONNECT TOOL FROM POWER SOURCE. Adjust the depth of cut as desired. A depth scale is provided. To adjust the depth of cut: Loosen the depth lock lever and set the depth to the desired Depth Lock Lever level.
-
Page 11: Dust Collection System
of the left hand without removing one's hand from the side handle. After it begins, allow the guard to function automatically Lower Blade Guard as usual. See fig 6, 6-1 DUST COLLECTION SYSTEM Fig.6-1 Dust collection should always be used to minimise dust. Attach an appropriate hose and vacuum cleaner system to the dust extractor port on the machine. -
Page 12: How To Use The Tool
ELECTRONIC OVERLOAD PROTECTION AND LOAD INDICATOR LIGHT This machine is equipped with a load indicator light that will inform the operator of load conditions. Whenever the switch is turned on and load conditons are normal, the indicator light will be a solid green color. See fig. 9 If load is approaching overload conditions, the indicator light will flash red. -
Page 13: Clamp The Workpiece
Plunge cuts: • Set the depth stop to the maximum cutting depth and manually open the lower blade guard just enough so that the blade touches the workpiece. • When the machine plunges, the circular saw must be held very securely, otherwise there is the danger of a kickback! • Switch the machine on, allow it to reach full speed and plunge the saw. • Once it is fully in the cut, begin to push the machine in the forward direction. • Switch the machine off once cutting is completed and allow it to come to a full stop before removing • from the workpiece. CLAMP THE WORKPIECE Secure the workpiece properly. -
Page 14: Maintenance
CAUTION: Failure to use a backing workpiece on the first cut may result in the rubber strip being torn or damaged by the blade Once it is cut to size, it will perfectly correspond to the cutting edge and will also help to protect the material from splintering. - Page 15 WIRING...
-
Page 16: Exploded View
EXPLODED VIEW... -
Page 17: Parts List
PARTS LIST Parts Name Q'TY Parts Name Q'TY POWER SUPPLY CORD SCREW M6 x 12 CORD ARMOR BUMP STOP LED INDICATOR LIGHT UPPER BLADE COVER 590g CORD CLIP PAN HEAD SCREW M4 x 25 SCREW M4 x 14 SIDE HANDLE SPRING GEAR CASE 460g LOCK RELEASE PLUNGER...
