Quick Start Guide

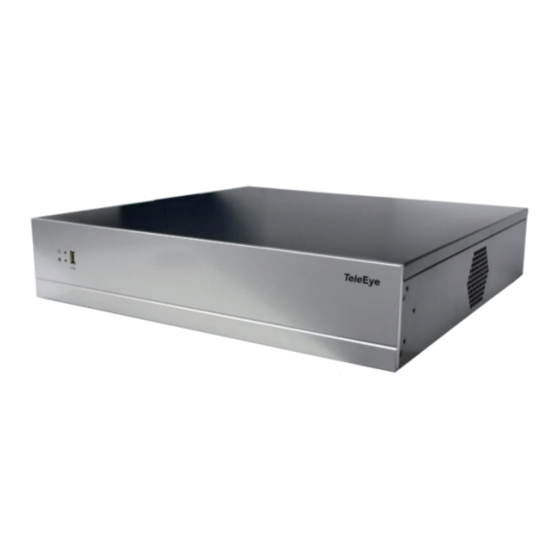

HD Digital Video Recorder GN6608 / GN6516 / GN6916
This quick start guide will guide you how to install and configure TeleEye HD
Digital Video Recorder GN6608/GN6516/GN6916.
1.Hard Disk Installation
* For HDD recommendation list, please visit
http://www.teleeye.com/, [Products]
GN6608 /GN6516
Step 1: Loosen the screws that hold the cover.
Step 2: Pull off the cover and put HDD into bottom case. Ensure the screw holds
are aligned.
Step 3: Mount the HDD on the bottom case with attached screws.
Step 4: Connect the SATA and power cable to the HDD.
Step 2
Step 3
[GN Series]
[HDD Recommendation List]
step 4
1
Advertisement
Table of Contents
Related Manuals for TeleEye GN6608
Summary of Contents for TeleEye GN6608
- Page 1 Quick Start Guide HD Digital Video Recorder GN6608 / GN6516 / GN6916 This quick start guide will guide you how to install and configure TeleEye HD Digital Video Recorder GN6608/GN6516/GN6916. 1.Hard Disk Installation * For HDD recommendation list, please visit http://www.teleeye.com/, [Products]...
- Page 2 Step 3: Mount the HDD on the hard disk holder with attached screws. Maximum 8HDD can be install. Step 4: Mount the hard disk holder to Teleeye GN. Step 5: Connect the SATA and power cable to the HDD. Step 3...
- Page 3 2.Setup for Local and Remote Monitoring Dedicated Video Network GN6608 GN6916 Shared IP Network GN6515 GN6916...
- Page 4 Step 1: Follow above to install cameras to the video ports of TeleEye GN. Step 2: Power on TeleEye GN. A startup screen will appear on the connected monitor. 3.Adding New Camera Dedicated Video Network Cameras will be search automatically after install camera to the video ports of TeleEye GN6608.
- Page 5 (Whatever the type of cameras you selected, you are requested to enter the username and password.) (For TeleEye MQ / MP, the default user name is “admin” and the password is “123456”.) 4.Setup for LAN Connection GN6608 GN6515 GN6916...
- Page 6 Step 1: Connect cameras to the video ports of TeleEye GN. (GN6608 ONLY) Step 2: Connect TeleEye GN to the network switch. Step 3: Install TeleEye IP Setup Utility in PC. Step 4: Find the TeleEye GN according to the serial number provided.
- Page 7 Step 1: Configure the network settings of TeleEye GN through PC with LAN connection. Step 2: Run IP Setup Utility. Find the TeleEye GN according to the serial number provided. Step 3: An alternative method, open a web browser and type the IP address or sureLINK address in a web browser.
- Page 8 10. Customer shall be responsible for backing up the data contained in the disk products. 11. TeleEye shall have no responsibility arising out of any damage to, or loss of the data contained in the disk products. 12. All the above determinations are up to the sole discretion of TeleEye.
