Technical Specifications - BSS Audio Soundweb London BLU-DA Installation Manual

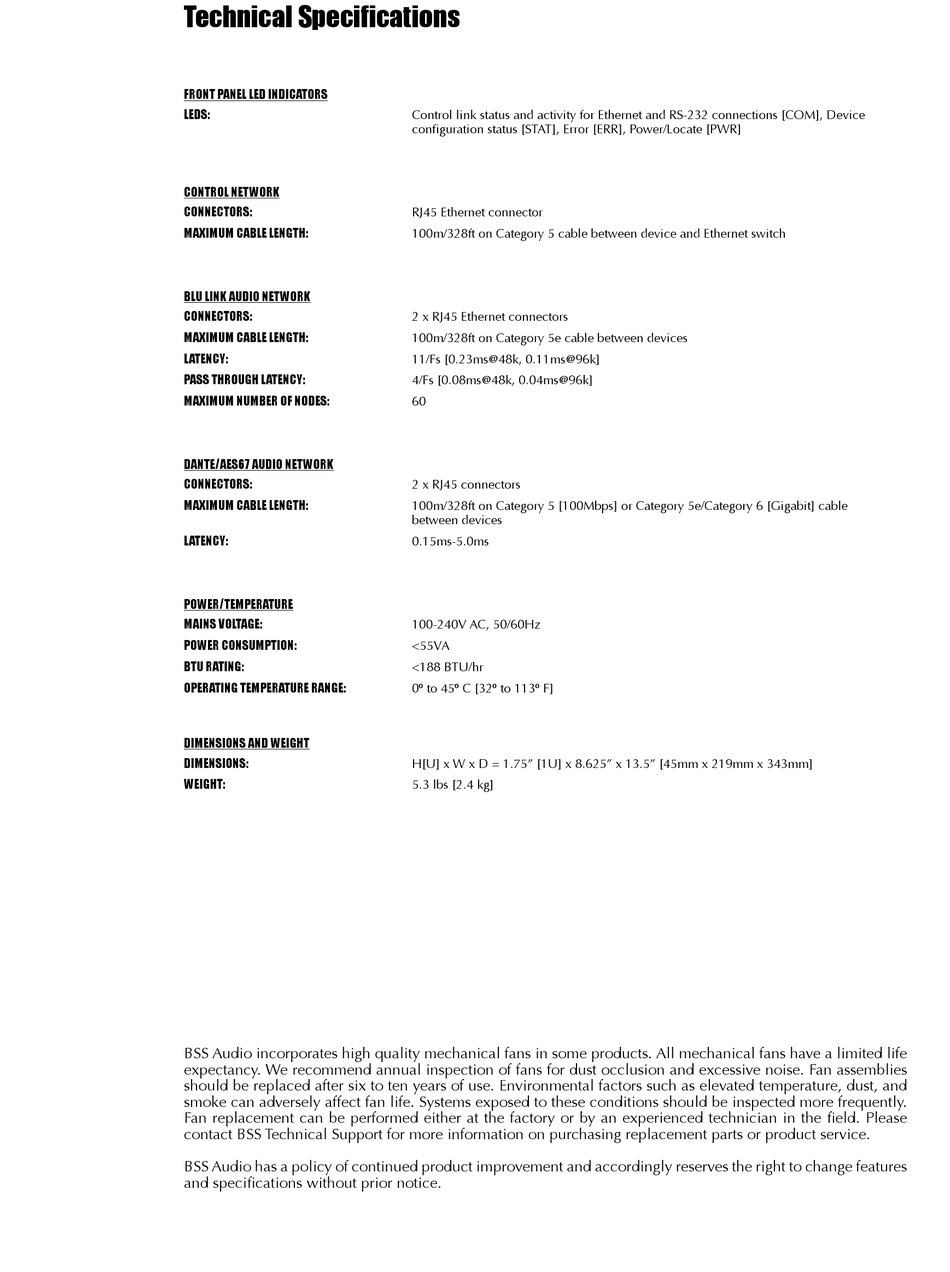

Technical Specifications

FRONT PANEL LED INDICATORS
LEDS:
CONTROL NETWORK
CONNECTORS:
MAXIMUM CABLE LENGTH:
BLU LINK AUDIO NETWORK
CONNECTORS:
MAXIMUM CABLE LENGTH:
LATENCY:
PASS THROUGH LATENCY:
MAXIMUM NUMBER OF NODES:
DANTE/AES67 AUDIO NETWORK
CONNECTORS:
MAXIMUM CABLE LENGTH:
LATENCY:
POWER/TEMPERATURE
MAINS VOLTAGE:
POWER CONSUMPTION:
BTU RATING:
OPERATING TEMPERATURE RANGE:
DIMENSIONS AND WEIGHT
DIMENSIONS:
WEIGHT:
BSS Audio incorporates high quality mechanical fans in some products� All mechanical fans have a limited life
expectancy. We recommend annual inspection of fans for dust occlusion and excessive noise. Fan assemblies
should be replaced after six to ten years of use. Environmental factors such as elevated temperature, dust, and
smoke can adversely affect fan life. Systems exposed to these conditions should be inspected more frequently.
Fan replacement can be performed either at the factory or by an experienced technician in the field. Please
contact BSS Technical Support for more information on purchasing replacement parts or product service�
BSS Audio has a policy of continued product improvement and accordingly reserves the right to change features
and specifications without prior notice.
Control link status and activity for Ethernet and RS-232 connections [COM], Device
configuration status [STAT], Error [ERR], Power/Locate [PWR]
RJ45 Ethernet connector
100m/328ft on Category 5 cable between device and Ethernet switch
2 x RJ45 Ethernet connectors
100m/328ft on Category 5e cable between devices
11/Fs [0�23ms@48k, 0�11ms@96k]
4/Fs [0�08ms@48k, 0�04ms@96k]
60
2 x RJ45 connectors
100m/328ft on Category 5 [100Mbps] or Category 5e/Category 6 [Gigabit] cable
between devices
0�15ms-5�0ms
100-240V AC, 50/60Hz
<55VA
<188 BTU/hr
0º to 45º C [32º to 113º F]
H[U] x W x D = 1.75" [1U] x 8.625" x 13.5" [45mm x 219mm x 343mm]
5�3 lbs [2�4 kg]
