Outdoor Unit - Sharp AY-X36RU Service Manual

AY-X36RU
AE-X36RU
PROCEDURE

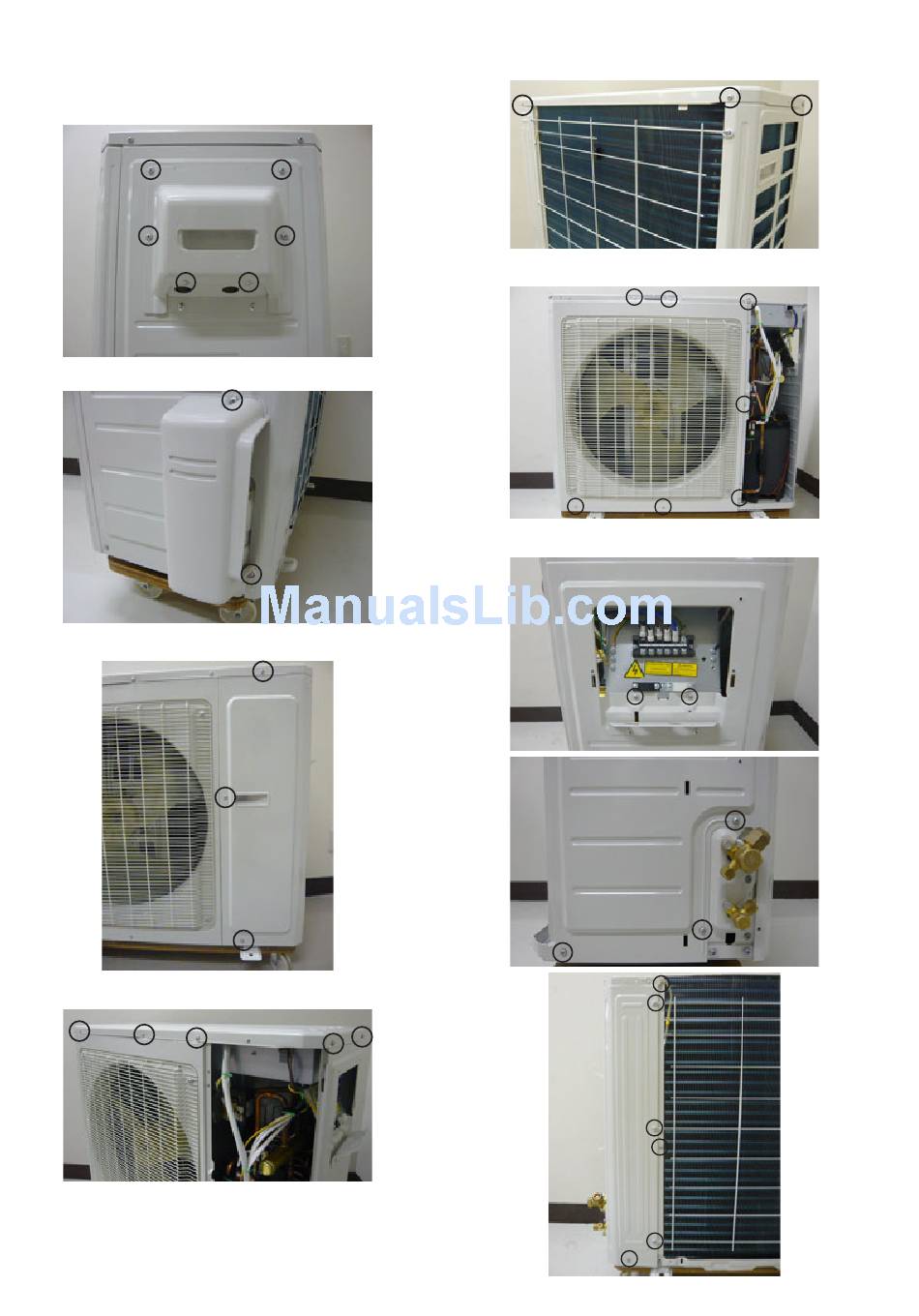

1. Remove the six (6) screws fixing the terminal cover.
2. Remove the two (2) screws fixing the pipe cover.
3. Remove the three (3) screws fixing the Front Side Plate
4. Remove the eight (8) screws fixing the top plate.

[2] OUTDOOR UNIT

5. Remove the seven (7) screws fixing the front panel.
6. Remove the eleven (11) screws fixing the right side panel.
