Magic C
Z-3100

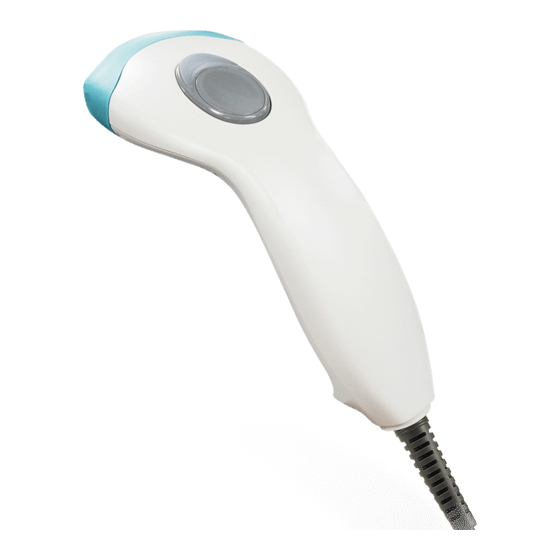

Advanced Handheld CCD Scanner
Standard Device
Optional Stand Selections
Holder
Stand
Magic C Z-3100 Buyer's Guide
Copyright ©2010. All Rights Reserved
ZEBEX INDUSTRIAL INC.
883-00HL00-001
883-00ST00-000
883-00ST00-001
883-00ST00-0NB
883-00ST00-0N1
32 Bit
Ultrascan Decoding Technology
PIN-OUT CONFIGURATION
RJ 1.
RTS_TTL
RJ 2.
KB Data
RJ 3.
PC Clock
RJ 4.
GND
RJ 5.
CTS_TTL
Holder
Z-300X series rubber holder
Stand
Z-300X series stand in white housing
Stand(B)
Z-300X series stand in black housing
Z-300X series stand in white housing w/o
Stand
ZEBEX logo
Z-300X series stand in black housing w/o
Stand(B)
ZEBEX logo
RJ 6. RX_TTL
RJ 7. KB Clock
RJ 8. +5V
RJ 9. PC Data
RJ10. TX_TTL
