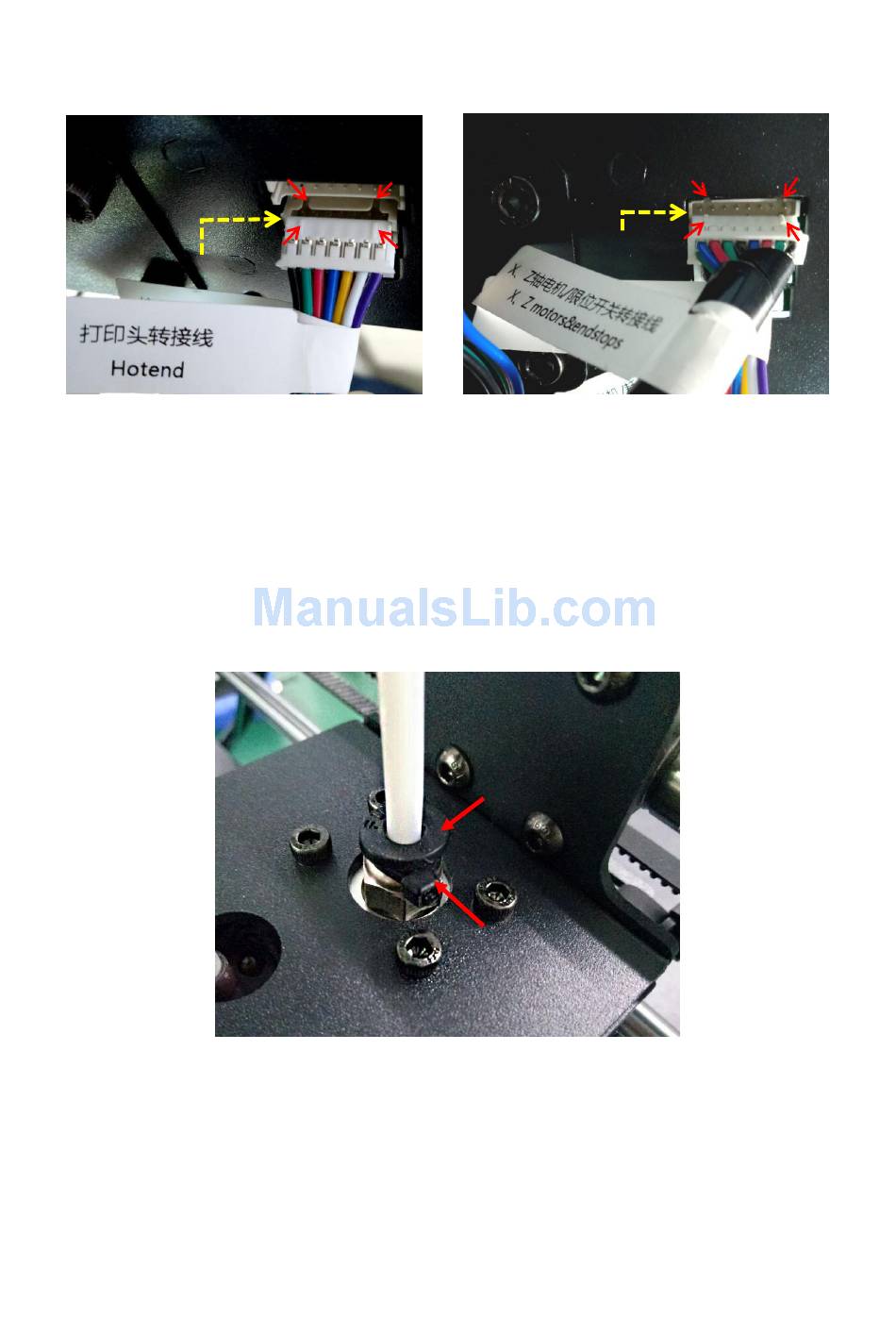

(3) Fig.4, insert "Hotend" connector to the middle port (14 pins).
(4) Fig.5, insert "X/Z motors&endstops" connector to the upper port (16 pins).
Middle port
(Figure 4)
(5) Fig. 6, customers may notice there is a piece of zip tie attached just below the plastic ring
of the quick connector.
a malfunction hotend, because it needs to push down the plastic ring and pull out the
Teflon tubing.
4. Spool holder and filament sensor
(1) As shown in Fig. 7, assemble the spool holder and tighten 4 pairs of screw and nuts at
the lower corner.
pircture)
Gap
Convex line
Do not cut it off.
(The color and shape of the spool holder might be slightly different from this
Upper port
Only cut this zip tie when swapping or repairing
Plastic ring
Zip tie
Do not cut
7
Gap
Convex line
(Figure 5)
(Figure 6)
