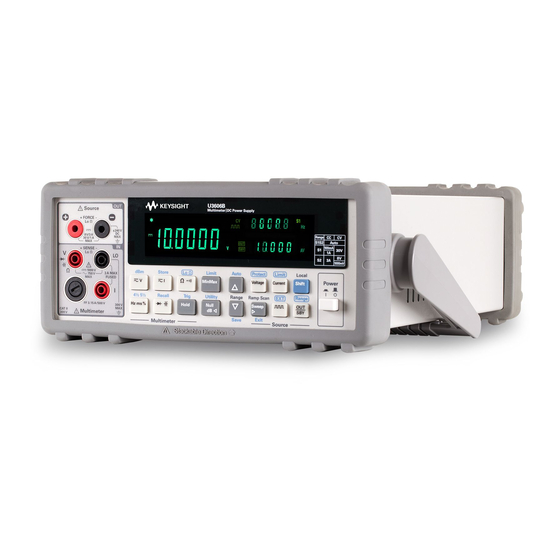

Keysight U3606B
Multimeter|DC Power Supply
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U3606B and is the answer not in the manual?

Questions and answers

Related Manuals for Keysight U3606B

Summary of Contents for Keysight U3606B

  • Page 1 Keysight U3606B Multimeter|DC Power Supply User’s Guide...

  • Page 2: Copyright Notice

    Declaration of Conformity. and the DFARS and are set forth specifically in writing elsewhere in the WARNING EULA. Keysight shall be under no obligation to update, revise or A WARNING notice denotes a hazard. It otherwise modify the Software. With...

  • Page 3: Safety Symbols

    Warning or Caution information) Earth (ground) terminal Out position of a bi-stable push control Frame or chassis terminal In position of a bi-stable push control CAT II Category II 300 V over-voltage protection 300 V Keysight U3606B User’s Guide...

  • Page 4: Safety Considerations

    Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards for design, manufacture, and intended use of the instrument. Keysight Technologies assumes no liability for the customer’s failure to comply with these requirements.
  • Page 5 – Always use dry cloth to clean the device. Do not use ethyl alcohol or any other volatile liquid to clean the device. – Do not permit any blockage of the ventilation holes of the device. The U3606B complies with the following safety and EMC compliances: NOTE Safety compliance –...

  • Page 6: Environmental Conditions

    Storage condition – –40 °C to 70 °C Operating condition – Up to 80% RH at 40°C (non-condensing) Humidity Storage condition – Up to 95% RH at 40°C (non-condensing) Altitude Up to 2000 m Pollution degree Keysight U3606B User’s Guide...

  • Page 7: Regulatory Markings

    The CSA mark is a registered trademark substance elements are expected to leak of the Canadian Standards Association. or deteriorate during normal use. Forty years is the expected useful life of the product. Keysight U3606B User’s Guide...

  • Page 8: Waste Electrical And Electronic Equipment (Weee) Directive 2002/96/Ec

    To return this unwanted instrument, contact your nearest Keysight Service Center, or visit http://about.keysight.com/en/companyinfo/environment/takeback.shtml for more information. Sales and Technical Support To contact Keysight for sales and technical support, refer to the support links on the following Keysight websites: – www.keysight.com/find/dmm-power (product-specific information and support, software and documentation updates) –...

  • Page 9: Table Of Contents

    ....... .24 Stack multiple U3606B units .......26 The U3606B in Brief .
  • Page 10 ........133 Keysight U3606B User’s Guide...
  • Page 11 ........175 Keysight U3606B User’s Guide...
  • Page 12 ........179 Keysight U3606B User’s Guide...
  • Page 13 Single rack mounted U3606B ....24 Figure 1-2 Two U3606B rack mounted side-by-side ..24 Figure 1-3 Rack mount dimensions .
  • Page 14 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U3606B User’s Guide...

  • Page 15: List Of Tables

    ......177 Table 6-4 List of query errors ......177 Keysight U3606B User’s Guide...
  • Page 16 ......178 Table 6-7 List of calibration errors ..... . . 179 Keysight U3606B User’s Guide...

  • Page 17: Introduction

    Keysight U3606B Multimeter|DC Power Supply User’s Guide Introduction About This Manual Preparing the U3606B The U3606B in Brief This chapter teaches you how to set up the U3606B for the first time. A summary of all the features of the U3606B is also given.

  • Page 18: About This Manual

    Introduction About This Manual The descriptions and instructions in this manual apply to the Keysight U3606B Multimeter|DC Power Supply (hereafter referred to as the U3606B or the instrument). Documentation map The following manuals are available for your instrument. For the latest version, please visit our website at: http://www.keysight.com/find/U3606B.

  • Page 19: Preparing The U3606B

    3 For any question or problems, refer to the Keysight contact numbers on the back of this manual. Standard shipped items Verify that you have received the following items in the shipment of the U3606B. If anything is found missing or damaged, please contact your nearest Keysight Sales Office.
  • Page 20 Introduction Keysight U3606B Multimeter|DC Power Supply Power cord USB Standard-A to Type-B U8201A combo test lead kit interface cable Keysight Keysight U3606B Product Certificate of Calibration Keysight U3606B Automation-Ready Reference CD-ROM Quick Start Guide CD-ROM Keysight U3606B User’s Guide...

  • Page 21: Connect Power To The Instrument

    Introduction Connect power to the instrument The U3606B is shipped from the factory with a power-line cord that has a plug NOTE appropriate for your location. The U3606B is equipped with a three-wire grounding type power cord; the third conductor being the ground.
  • Page 22 – DC voltage measurement function with autoranging enabled, and – Constant voltage (CV) operation with the output disabled (on standby). – For subsequent power cycles, the U3606B returns to the last power-off state NOTE by default. You can change this behavior in the Utility menu.

  • Page 23: Adjust The Carry Handle

    Introduction Adjust the carry handle Keysight U3606B User’s Guide...

  • Page 24: Rack Mount The Instrument

    Introduction Rack mount the instrument You can mount the U3606B in a standard 19-inch rack cabinet using one of the two optional kits available. Instructions and mounting hardware are included with each rack-mounting kit. To rack mount a single instrument, order 34190A.

  • Page 25: Rack Mount Dimensions

    Introduction Figure 1-3 Rack mount dimensions Keysight U3606B User’s Guide...

  • Page 26: Stack Multiple U3606B Units

    Introduction Stack multiple U3606B units You may stack multiple U3606B units on top of each other. The rubber bumpers are uniquely designed to secure firmly the units stacked above it, preventing any unwanted movements. Ensure that the Stackable Direction arrow points up.

  • Page 27: The U3606B In Brief

    Introduction The U3606B in Brief Dimensions 105 mm 334 mm 226 mm Figure 1-4 U3606B dimensions Keysight U3606B User’s Guide...

  • Page 28: Overview

    Introduction Overview Front panel The front panel parts of the U3606B are described in this section. Figure 1-5 The front panel at a glance Table 1-1 Front panel descriptions Legend Description Output terminals Positive and negative terminals for output connections...

  • Page 29: The Rear Panel At A Glance

    Selects a manual range or enables autoranging for multimeter operation Keys for source operation Function keys for source operation Rear panel The rear panel parts of the U3606B are described in this section. Figure 1-6 The rear panel at a glance Keysight U3606B User’s Guide...

  • Page 30: Table 1-2 Rear Panel Descriptions

    Positive and negative terminals for remote sense Short bars Shorts the rear output (+ and –) and sense (+S and –S) terminals USB interface connector Type-B USB connector physical interface 10 Serial number Indicated the instrument’s serial number Keysight U3606B User’s Guide...

  • Page 31: Display Screen

    Introduction Display screen The display annunciators of the U3606B are described in this section. Figure 1-7 The VFD display at a glance Table 1-3 VFD display descriptions Legend Description A single reading is taken from the input terminals Trig Single trigger operation is active...
  • Page 32 Voltage unit: V for constant voltage operation Current unit: A for constant current operation Frequency unit: Hz for square-wave output DC symbol AC symbol Limit Limit math operation enabled Auto Autoranging selected DC measurement selected AC measurement selected AC+DC measurement selected Keysight U3606B User’s Guide...
  • Page 33 Voltage units: mV, V Current units: mA, A Capacitance units: nF, μF μnF Output is enabled from the output terminals and remote sense (rear output) terminals Output is on standby (disabled) 10 –1.8.8.8.8.8 Secondary display for source operation Keysight U3606B User’s Guide...

  • Page 34: Keypad

    Current unit: A for over-current protection Keypad Figure 1-8 The keypad at a glance Pressing a key changes the current operation, illuminates a related annunciator NOTE on the display, and generates a key-click sound (a beep). Keysight U3606B User’s Guide...
  • Page 35 – If no key-press is detected 3 seconds after [Shift] is pressed, the instrument will return to normal operation (the Shift annunciator turns off). Table 1-4 Keypad descriptions Legend Description System-related operation Push [Power] to turn on or turn off the U3606B. Keysight U3606B User’s Guide...

  • Page 36: Table 1-4 Keypad Descriptions

    Press [Shift] > [Recall] to recall a previously stored instrument state. Mul timeter operation Press [ ] to cycle between the DC, AC, and AC+DC voltage measurement functions. Press [ ] to cycle between the DC, AC, and AC+DC current measurement functions. Keysight U3606B User’s Guide...
  • Page 37 Press [Shift] > [dBm] > [dB] to convert the measured voltage value to dB. Press [MinMax] to store statistical data for the present readings. Press [Shift] > [Limit] to enable the limit math operation. Press [Hold] to capture and hold a reading within the specified variation and threshold values. Keysight U3606B User’s Guide...
  • Page 38 Press [Sweep] to cycle through the ramp and scan sweep functions, or to disable the sweep operation for the selected output (CV or CC). Keysight U3606B User’s Guide...
  • Page 39 [c] The continuity and diode test functions have a fixed 4½ digit resolution. Capacitance measurement is fixed to 3½ digit resolution. [d] The sweep functions can only be accessed when the U3606B is in constant voltage or constant current operation. You cannot access the sweep functions while the U3606B is in square-wave output operation.

  • Page 40: Input/Output Terminals

    Input/Output terminals Before attempting to connect test leads to the front output terminals, make WARNING sure to disable the U3606B output first to avoid damage to the circuits being connected. To avoid damaging the device, do not connect positive output terminals WARNING ) with negative input terminals (LO);...

  • Page 41: Table 1-5 Input Terminal Connections

    < 0.3 A short circuit Low-resistance (4-wire) measurement 3.15 A/250 V FF fuse DC current measurement AC current measurement 3.15 A/500 V FF fuse Frequency, duty cycle, and pulse width measurements via the current path Keysight U3606B User’s Guide...

  • Page 42: Table 1-6 Output Terminal Connections

    – Number of steps: 1 to 10000 steps – Amplitude: – CV: 0 V to 31.5 V Scan output – CC: 0 A to 3.15 A – Number of steps: 1 to 100 steps – Dwelling time: 1 to 99 s Keysight U3606B User’s Guide...
  • Page 43 [b] Limited by range selected, S1 (30 V/1 A), S1m (30 V/100 mA), S2 (8 V/3 A), or S1S2 (autoranging). [c] Frequency range: 0.5 Hz to 4800 Hz if S1 or S2 is selected, 10 Hz to 4800 Hz (with fixed 50% duty cycle) if S1S2 (autoranging) is selected. Keysight U3606B User’s Guide...
  • Page 44 Introduction THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U3606B User’s Guide...
  • Page 45 Keysight U3606B Multimeter|DC Power Supply User’s Guide Operation and Features Measuring Voltage Measuring Current Measuring Resistance Testing Continuity Measuring Low-Resistance Measuring Capacitance Testing Diodes Measuring Frequency/Pulse Width/Duty Cycle (Voltage Path) Measuring Frequency/Pulse Width/Duty Cycle (Current Path) Selecting a Range Setting the Resolution...

  • Page 46: Operation And Features

    Operation and Features Measuring Voltage WARNING Do not connect positive output terminals ( ) with negative input terminals (LO); or positive input terminals (V, ) with negative output terminals ( Keysight U3606B User’s Guide...
  • Page 47 Operation and Features Connect the test leads Select the voltage measurement function Press [ ] again to cycle between DC, AC, or AC+DC The DC, AC, or AC+DC measurements. annunciator will turn on according to your selection. Keysight U3606B User’s Guide...

  • Page 48: Table 2-1 Voltage Measurement Summary

    19.9999 mV, 100.000 mV, 1.00000 V, 10.0000 V, 100.000 V, 1000.00 V Measurement method Sigma Delta A-to-D converter Input impedance 10 MΩ ± 2% range (typical) in parallel with capacitance < 120 pF 1000 V on all ranges Input protection Keysight U3606B User’s Guide...
  • Page 49 Using the AC+DC function NOTE The U3606B is a true-rms multimeter that returns an accurate rms reading not only for sine waves, but also other AC signals such as square, triangle, and staircase waveforms without any DC offset. However, you may choose to return the measured AC signal with its DC offset by using the AC+DC function.

  • Page 50: Measuring Current

    Measuring Current Connect the test leads Select the current measurement function Press [ ] again to cycle between DC, AC, or AC+DC The DC, AC, or AC+DC measurements. annunciator will turn on according to your selection. Keysight U3606B User’s Guide...

  • Page 51: Table 2-2 Current Measurement Summary

    – < 0.2 V, 1 Ω for 100 mA range Burden voltage and shunt resistance – < 0.3 V, 0.05 Ω for 1 A range – < 0.7 V, 0.05 Ω for 3 A range Input protection Protected with a 3.15 A/500 V, FF fuse Keysight U3606B User’s Guide...
  • Page 52 Using the AC+DC function NOTE The U3606B is a true-rms multimeter that returns an accurate rms reading not only for sine waves, but also other AC signals such as square, triangle, and staircase waveforms without any DC offset. However, you may choose to return the measured AC signal with its DC offset by using the AC+DC function.

  • Page 53: Measuring Resistance

    Operation and Features Measuring Resistance Connect the test leads Select the resistance measurement function Press [ ] to switch between resistance measurements and continuity tests. The Ω annunciator turns on for resistance measurements. Keysight U3606B User’s Guide...
  • Page 54 5½ digit resolution selected by default. Test current Disconnect circuit power and discharge all high-voltage capacitors before CAUTION measuring resistance or conductance, or testing circuit continuity, to avoid damaging the U3606B or the device under test. Keysight U3606B User’s Guide...

  • Page 55: Table 2-3 Resistance Measurement Summary

    100.000 Ω, 1.00000 kΩ, 10.0000 kΩ, 100.000 kΩ, 1.00000 MΩ, 10.0000 MΩ, 100.000 MΩ Measurement method Two-wire, open-circuit voltage limited to < 5 V 1000 V on all ranges, < 0.3 A short circuit Input protection Keysight U3606B User’s Guide...

  • Page 56: Testing Continuity

    Operation and Features Testing Continuity Connect the test leads Select the continuity test function Press [ ] to switch between resistance measurements and continuity tests. annunciator turns on for continuity tests. Keysight U3606B User’s Guide...
  • Page 57 Beeps when a short is detected NOTE The U3606B beeps when the continuity measurement is less than or equal to the continuity threshold. This allows you to quickly determine shorts in the circuit under test without having to look at the display.

  • Page 58: Table 2-4 Continuity Test Summary

    0.83 mA ± 0.2% constant current source, open-circuit voltage limited to < 5 V Audible tone Continuous beep when reading is less than threshold resistance of 10 Ω at 1.0 kΩ range 1000 V on all ranges, < 0.3 A short circuit Input protection Keysight U3606B User’s Guide...

  • Page 59: Measuring Low-Resistance

    Operation and Features Measuring Low-Resistance Connect the test leads Keysight U3606B User’s Guide...
  • Page 60 Probe the test points and read the display In this example, we obtain a resistance measurement of 12.345 mΩ, with autoranging enabled and 5½ digit resolution selected by default. CAUTION: The load wattage must be able to handle the applied current. Test current Keysight U3606B User’s Guide...

  • Page 61: Table 2-5 Low-Resistance Measurement Summary

    Disconnect circuit power and discharge all high-voltage capacitors before CAUTION measuring resistance or conductance, or testing circuit continuity, to avoid damaging the U3606B or the device under test. DC power supply functions are locked NOTE The DC power supply functions are locked when you select the low-resistance (Lo Ω) measurements.

  • Page 62: Table 2-6 Low-Resistance Test Current Values

    X mA [a] When the display shows “OL”, always apply the detection current. [b] Press [Current] to change the test current selected (see page 63). [c] “X” follows the test current setting of 1000 Ω range. Keysight U3606B User’s Guide...
  • Page 63 To exit the ed it mode without saving – Press [ ] or [ ] to select a digit position or range. – Press [ ] or [ ] to increase or decrease the value selected. Keysight U3606B User’s Guide...

  • Page 64: Measuring Capacitance

    Operation and Features Measuring Capacitance Connect the test leads Select the capacitance measurement function Press [ ] to switch between capacitance measurements and diode tests. The F annunciator turns on for capacitance measurements. Keysight U3606B User’s Guide...
  • Page 65 Disconnect circuit power and discharge all high-voltage capacitors before CAUTION measuring capacitance to avoid damaging the U3606B or the device under test. To confirm that a capacitor has fully discharged, use the DC voltage measurement. Keysight U3606B User’s Guide...

  • Page 66: Table 2-7 Capacitance Measurement Summary

    Operation and Features Measuring tips NOTE – The U3606B calculates capacitance by charging a capacitor with a known current for a period of time and then measuring the voltage. – For measuring capacitance values greater than 10000 μF, discharge the capacitor first, then select a suitable range for measurement.

  • Page 67: Testing Diodes

    Operation and Features Testing Diodes Connect the test leads Select the diode test function Press [ ] to switch between capacitance measurements and diode tests. annunciator turns on for diode tests. Keysight U3606B User’s Guide...
  • Page 68 Test current In this example, we obtain a voltage measurement of 0.4321 V from a forward-bias diode. This response indicates that the diode is good. The resolution is fixed at 4½ digit for diode tests. Test current Keysight U3606B User’s Guide...

  • Page 69: Table 2-8 Diode Test Summary

    (cathode). The cathode of a diode is indicated with a band. – The U3606B can display diode forward bias of up to approximately 1.2 V. The forward bias of a typical diode is within the range of 0.3 V to 0.8 V.

  • Page 70: Measuring Frequency/Pulse Width/Duty Cycle (Voltage Path)

    Connect the test leads Select the frequency measurement function Press [Hz ms %] again to cycle between The Hz, ms, or % annunciator frequency, pulse width, will turn on according to your or duty cycle selection. measurements. Keysight U3606B User’s Guide...
  • Page 71 AC voltage or AC current measurement (dependent on the path chosen). – The AC voltage or AC current measurement display will flash briefly before the frequency measurement display is shown. Keysight U3606B User’s Guide...

  • Page 72: Table 2-9 Frequency/Pulse Width/Duty Cycle Measurement (Voltage Path) Summary

    100.000 mV, 1.00000 V, 10.0000 V, 100.000 V, 750.00 V — range is based on the voltage level Available ranges of the signal, not frequency Measurement method Reciprocal counting technique Signal level 10% of range to full scale input on all ranges 750 V on all ranges Input protection Keysight U3606B User’s Guide...

  • Page 73: Measuring Frequency/Pulse Width/Duty Cycle (Current Path)

    Connect the test leads Select the frequency measurement function Press [Hz ms %] again to cycle between The Hz, ms, or % annunciator frequency, pulse width, will turn on according to your or duty cycle selection. measurements. Keysight U3606B User’s Guide...
  • Page 74 AC voltage or AC current measurement (dependent on the path chosen). – The AC voltage or AC current measurement display will flash briefly before the frequency measurement display is shown. Keysight U3606B User’s Guide...

  • Page 75: Table 2-10 Frequency /Pulse Width/Duty Cycle Measurement (Current Path) Summary

    10.0000 mA, 100.000 mA, 1.00000 A, 3.0000 A — range is based on the current level of the Available ranges signal, not frequency Measurement method Reciprocal counting technique Signal level 10% of range to full scale input on all ranges Input protection Protected with a 3.15 A/500 V, FF fuse Keysight U3606B User’s Guide...

  • Page 76: Selecting A Range

    Operation and Features Selecting a Range You can allow the U3606B to automatically select the range using autoranging (default setting), or you can select a fixed range using manual ranging. – Autoranging is convenient because the U3606B automatically selects the NOTE appropriate range for sensing and displaying each measurement.

  • Page 77: Setting The Resolution

    – Continuity and diode tests have a fixed 4½ digit display. – Capacitance measurements have a fixed 3½ digit display. Description Press [Shift] > [4½ 5½] to toggle between 4½ digit and 5½ digit mode. Keysight U3606B User’s Guide...

  • Page 78: Math Operations

    Operation and Features Math Operations The U3606B provides six math operations: null measurements, dB measurements, dBm measurements, statistics (MinMax) for accumulated readings, limit testing, and a hold function. The table below describes the math operations that can be used with each measurement function.

  • Page 79: Null

    – Range changing is allowed for all math operations except for the Hold function. – For remote operation, refer to the CALCulate subsystem in the U3606B Programmer’s Reference. Null When making null measurements, also called relative, each reading is the difference between a stored (selected or measured) null value and the input signal.
  • Page 80 Operation and Features Enable the null function To d isable the null function Keysight U3606B User’s Guide...
  • Page 81 To exit the ed it mode without saving – Press [ ] or [ ] to select a digit position or range. – Press [ ] or [ ] to increase or decrease the value selected. Keysight U3606B User’s Guide...

  • Page 82: Dbm Measurements

    The logarithmic dBm (decibels relative to 1 mW) scale is often used in RF signal measurements. The U3606B takes a measurement and calculates the power delivered to a reference resistance (typically 50 Ω, 75 Ω, or 600 Ω). Voltage measurement is then converted to dBm.

  • Page 83: Db Measurements

    This math operation applies to voltage measurements only. NOTE Enable the dB function Enable the dBm function first. To d isable the dB function The first displayed reading is always precisely 00.000 dB. Keysight U3606B User’s Guide...
  • Page 84 To exit the ed it mode without saving – Press [ ] or [ ] to select a digit position or range. – Press [ ] or [ ] to increase or decrease the value selected. Keysight U3606B User’s Guide...

  • Page 85: Minmax

    Instrument Preset ( command), or after a measurement SYSTem:PRESet function change. – The average function can be restarted by pressing [MinMax] for more than one second. Enable the MinMax function To d isable the MinMax function Keysight U3606B User’s Guide...

  • Page 86: Limit

    Each time a new minimum, maximum, or average value is stored, the instrument NOTE beeps once (if the beeper is enabled). The U3606B calculates the average of all readings and records the number of readings taken since the MinMax function was enabled.
  • Page 87 Each time the input value transitions from PASS to HI or from PASS to LO, or NOTE when transitioning directly from HI to LO or LO to HI, the U3606B beeps once (if the beeper is enabled). Keysight U3606B User’s Guide...
  • Page 88 To exit the ed it mode without saving – Press [ ] or [ ] to select a digit position or range. – Press [ ] or [ ] to increase or decrease the value selected. Keysight U3606B User’s Guide...

  • Page 89: Hold

    Set the variation to “OFF” in the Utility menu to enable data hold. In data hold mode, the reading is not updated even if the input signal value changes. The reading held will remain on the display until you exit the hold mode. Keysight U3606B User’s Guide...
  • Page 90 Operation and Features Enable the Hold function To d isable the Hold function Keysight U3606B User’s Guide...

  • Page 91: Triggering The Multimeter

    2 Specify the U3606B trigger source. The U3606B will accept a software (bus) command or an immediate (continuous) trigger. 3 Ensure that the U3606B is ready to accept a trigger from the specified source (called the “wait-for-trigger” state). page 93 for more information on the software (bus) or immediate triggering source.

  • Page 92: Front Panel Triggering

    Operation and Features Front panel triggering Single triggering The U3606B takes one reading each time you press [Trig]. The single trigger mode is available from the local interface only. NOTE Enable the single trigger function To d isable the Trig function Press [Trig] again to capture another reading.

  • Page 93: Remote Interface Triggering

    “wait-for-trigger” state using the INITiate[:IMMediate] or READ? command. A trigger will not be accepted from the selected trigger source until the instrument is in the “wait-for-trigger” state. Refer to the U3606B Programmer’s Reference for the syntax and complete descriptions for these commands. Software (bus) triggering...
  • Page 94 Remote interface operation: – The TRIGger:SOURce BUS command selects the bus trigger source. – The MEASure? command overwrites the bus trigger and triggers the U3606B and returns a measurement. – The READ? command does not overwrite the bus trigger, and if selected, generates an error.
  • Page 95 Keysight U3606B Multimeter|DC Power Supply User’s Guide DC Power Supply Operation Constant Voltage Operation Constant Current Operation Protection Functions Square-Wave Operation Sweep Functions Selecting a Range Enabling the Output Remote Sensing This chapter contains examples on how to operate the DC power supply from the...

  • Page 96: Dc Power Supply Operation

    DC Power Supply Operation Constant Voltage Operation WARNING Do not connect positive output terminals ( ) with negative input terminals (LO); or positive input terminals (V, ) with negative output terminals ( Keysight U3606B User’s Guide...
  • Page 97 DC Power Supply Operation Connect the load LOAD Keysight U3606B User’s Guide...
  • Page 98 DC Power Supply Operation Select the constant voltage function The CV annunciator will turn on according to your selection. LOAD Keysight U3606B User’s Guide...
  • Page 99 ] to increase or decrease the value selected. Note: If the CV annunciator is not flashing, press [Voltage] again. The output voltage can be programmed when the output is enabled (OUT) or disabled (SBY). Enable the output Keysight U3606B User’s Guide...
  • Page 100 You can only select a range when the output is disabled (the SBY annunciator is illuminated). – While adjusting the constant voltage value, you can also press [Voltage] again or [Shift] > [Exit] to exit the edit mode. Keysight U3606B User’s Guide...

  • Page 101: Constant Current Operation

    DC Power Supply Operation Constant Current Operation Connect the load LOAD Keysight U3606B User’s Guide...
  • Page 102 DC Power Supply Operation Select the constant current function The CC annunciator will turn on according to your selection. LOAD Keysight U3606B User’s Guide...
  • Page 103 ] to increase or decrease the value selected. Note: If the CC annunciator is not flashing, press [Current] again. The output current can be programmed when the output is enabled (OUT) or disabled (SBY). Enable the output Keysight U3606B User’s Guide...
  • Page 104 You can only select a range when the output is disabled (the SBY annunciator is illuminated). – While adjusting the constant current value, you can also press [Current] again or [Shift] > [Exit] to exit the edit mode. Keysight U3606B User’s Guide...

  • Page 105: Protection Functions

    Protection Functions Over-voltage protection (OVP) In constant current mode, the U3606B regulates the output current at the selected value, while the voltage varies as required by the load. The over-voltage protection protects against over-voltage conditions on the output. If the load...
  • Page 106 ] to increase or decrease the value selected. Note: The OVP value is set to the maximum protection limits by default. You can recall the OVP value set when you select “LASt” in the P-on Utility menu item (page 162). Keysight U3606B User’s Guide...
  • Page 107 Then very gradually increase the output current using the arrow keys until the OVP circuit trips. This will disable the U3606B output, cause the CC annunciator to flash, and the OV and Error annunciator to illuminate.

  • Page 108: Over-Current Protection (Ocp)

    OVP circuit will turn the output off again. – When the OVP circuit trips, the U3606B will immediately prompt you to change the OVP trip level. Use the arrow keys to select a higher OVP trip level and press [Shift] >...
  • Page 109 Setting the OCP trip level will not activate the OCP feature. To activate the OCP NOTE feature, you will need to enable the output protection state from the Utility menu. Select the constant voltage function The CV annunciator will turn on according to your selection. Keysight U3606B User’s Guide...
  • Page 110 ] to increase or decrease the value selected. Note: The OCP value is set to the maximum protection limits by default. You can recall the OCP value set when you select “LASt” in the P-on Utility menu item (page 162). Keysight U3606B User’s Guide...
  • Page 111 Then very gradually increase the output current using the arrow keys until the OCP circuit trips. This will disable the U3606B output, cause the CC annunciator to flash, and the OC and Error annunciator to illuminate.

  • Page 112: Over-Voltage Limit (Ov)

    OCP circuit will turn the output off again. – When the OCP circuit trips, the U3606B will immediately prompt you to change the OCP trip level. Use the arrow keys to select a higher OCP trip level and press [Shift] >...
  • Page 113 DC Power Supply Operation Select the constant current function The CC annunciator will turn on according to your selection. Keysight U3606B User’s Guide...
  • Page 114 ] to increase or decrease the value selected. Note: The OV value is set to the maximum protection limits by default. You can recall the OV value set when you select “LASt” in the P-on Utility menu item (page 162). Keysight U3606B User’s Guide...

  • Page 115: Table 3-1 Cc Mode Over-Voltage Protection Range And Values 107 Table 3-2 Cv Mode Over-Current Protection Range And Values .111 Table 3-3 Cc Mode Over-Voltage Range And Values

    S1 (30 V/1 A) 31.5 V S1m (30 V/100 mA) 31.5 V S2 (8 V/3 A) 8.4 V S1S2 (autoranging) [a] If the S1S2 (autoranging) range is selected, you will not be able to adjust the OV value. Keysight U3606B User’s Guide...

  • Page 116: Over-Current Limit (Oc)

    The combination of the OC and OCP features create a closed loop circuit protection for sensitive load behaviors. Select the constant current function The CV annunciator will turn on according to your selection. Keysight U3606B User’s Guide...
  • Page 117 ] to increase or decrease the value selected. Note: The OC value is set to the maximum protection limits by default. You can recall the OC value set when you select “LASt” in the P-on Utility menu item (page 162). Keysight U3606B User’s Guide...

  • Page 118: Table 3-4 Cv Mode Over-Current Range And Values

    S1 (30 V/1 A) 1.05 A S2 (8 V/3 A) 3.15 A S2m (1000 mV/3 A) 3.15 A S1S2 (autoranging) [a] If the S1S2 (autoranging) range is selected, you will not be able to adjust the OC value. Keysight U3606B User’s Guide...

  • Page 119: Square-Wave Operation

    (PWM) output, adjustable voltage control, and synchronous clock (baud rate generator). You can also use this function to check and calibrate flow-meter displays, counters, tachometers, oscilloscopes, frequency converter, frequency transmitter, and other frequency input devices. Connect the load LOAD Keysight U3606B User’s Guide...
  • Page 120 DC Power Supply Operation Select the square wave function annunciator will turn on according to your selection. LOAD Keysight U3606B User’s Guide...
  • Page 121 DC Power Supply Operation View the amplitude, duty cycle, and pulse width values Press [ ] again to cycle between amplitude, duty cycle, or pulse width values. Enable the output Keysight U3606B User’s Guide...
  • Page 122 – Press [ ] or [ ] to select a digit position or range. – Press [ ] or [ ] to increase or decrease the value selected. Note: If the annunciator is not flashing, press [ ] again. Keysight U3606B User’s Guide...
  • Page 123 [Shift] > [Range] to select an appropriate range. You can only select a range when the output is disabled (the SBY annunciator is illuminated). – Changing the square-wave frequency value will affect the square-wave duty cycle and pulse wid th values as they are inter-related. Keysight U3606B User’s Guide...

  • Page 124: Table 3-5 Square-Wave Amplitude Minimum And Maximum Values

    – The pulse width can be stepped through 256 steps, where each step is 1/ (256 × frequency) more than the previous step. The display will automatically adjust to a 5 digit resolution (ranging from 9.9999 ms to 999.99 ms) Keysight U3606B User’s Guide...

  • Page 125: Sweep Functions

    DC Power Supply Operation Sweep Functions The U3606B is equipped with ramp and scan capability. Use the ramp function to generate a ramp signal with its end amplitude position and number of steps based on the preset input parameters and the scan function to generate a scan signal with its end amplitude position, step dwelling time, and number of steps based on the preset input parameters.
  • Page 126 DC Power Supply Operation Connect the load LOAD Keysight U3606B User’s Guide...
  • Page 127 The CV or CC annunciator will turn on according to your selection. Select the ramp function and enable the output Press [Sweep] to switch the between ramp and scan functions. The Ramp annunciator will turn on according to your selection. Keysight U3606B User’s Guide...

  • Page 128: Scan Signal

    DC Power Supply Operation – The typical ramp dwelling time per step in the U3606B is measured at NOTE 100 ms. A longer delay time should be expected if a high number of steps is programmed. As an example, a 1000 step ramp signal will yield a 200 seconds (1000 ×...
  • Page 129 DC Power Supply Operation Connect the load LOAD Keysight U3606B User’s Guide...
  • Page 130 The CV or CC annunciator will turn on according to your selection. Select the scan function and enable the output Press [Sweep] to switch the between ramp and scan functions. The Scan annunciator will turn on according to your selection. Keysight U3606B User’s Guide...
  • Page 131 – If you want to adjust the scan signal parameters, press [Shift] > [Utility] to access the Utility menu. – The maximum amplitude end position will be limited by the range and function (CV or CC) selected. Keysight U3606B User’s Guide...

  • Page 132: Selecting A Range

    DC Power Supply Operation Selecting a Range You can allow the U3606B to automatically select the range using autoranging or you can select a fixed range using manual ranging. Description Press [Shift] > [Range] to toggle between the available ranges.

  • Page 133: Enabling The Output

    O U T ] to turn the U3606B output on or off. With the output off, adjustments can be made to the U3606B or the load without shutting off power to the instrument. – When the output is disabled, the output voltage and current go to zero, and the SBY annunciator is illuminated.

  • Page 134: Remote Sensing

    By connecting the power supply for remote voltage sensing, voltage is sensed at the load rather than at the U3606B output terminals (+ FORCE –). This will allow the U3606B to automatically compensate for the voltage drop in applications with long lead lengths as well as to accurately read back the voltage across the load.

  • Page 135: Remote Sensing Connections

    Rear output terminals Shielded two-wire cable LO AD Figure 3-1 Remote sensing connections Rear output terminals Short bar LO AD Short bar Figure 3-2 Local sensing connections Keysight U3606B User’s Guide...
  • Page 136 Remove any metal shorting bars connected to the rear output terminals. 2 Loosen the two captive screws in the rear output terminal block with a slotted screwdriver. 3 Gently pull the rear output terminal block out. Keysight U3606B User’s Guide...
  • Page 137 Do not use the shield as one of the sensing conductors. Ground the shield at the U3606B end only. The other end of the shield should be left unconnected. Observe the polarity when connecting the sensing leads to the load. You can connect the output leads to either one of the two + or –...
  • Page 138 Avoid connecting the load leads from the rear terminal block to the load as CAUTION shown above. Loosening the top screws at an inclined angle will damage the terminal block screws. Keysight U3606B User’s Guide...
  • Page 139 4 Press [Voltage] to select the constant voltage mode. Use the arrow keys to select the appropriate constant voltage value. 5 Press [Shift] > [EXT] to enable remote sensing. When the U3606B is operating in remote sensing mode, the EXT annunciator on the front panel is illuminated.

  • Page 140: Output Rating

    Output noise Any noise picked up on the sense leads also appears at the output of the U3606B and may adversely affect the voltage load regulation. Twist the sense leads to minimize external noise pickup and run them parallel and close to the load leads.

  • Page 141: System-Related Operation

    Keysight U3606B Multimeter|DC Power Supply User’s Guide System-Related Operation Using the Utility Menu Utility Menu Summary Utility Menu Items Reading error messages Storing and Recalling Instrument States Remote Operation This chapter lists the various items in the Utility menu as well as other...

  • Page 142: Using The Utility Menu

    ] to switch between two values, to select a value from the list, or to decrease or increase a value. Press [Shift] > [Save] to save a setting. Press [Shift] > [Exit] to exit the edit mode without saving or to exit the Utility menu. Keysight U3606B User’s Guide...
  • Page 143 Press [Shift] > [Exit] to exit the Utility menu. The U3606B resumes normal operation. The saved settings are store in the U3606B’s non-volatile memory. Keysight U3606B User’s Guide...

  • Page 144: Utility Menu Summary

    149 – Set the refresh hold threshold (nH - N.N %) in percentage for voltage, current, and capacitance measurements. The reading value will not be updated when the reading falls below the threshold value. Keysight U3606B User’s Guide...
  • Page 145 (typically ~100 ms per step). – Select “YES” to enable the output protection or “no” to disable the output protection. triP page 158 – The factory default for the output protection state is “YES”. Keysight U3606B User’s Guide...
  • Page 146 – Select “iob” to view interface board program code revision. – Select “Sb” to view source board program P.CodE NN.NN iob NN.NN Sb NN.NN Mb page 163 code revision. – Select “Mb” to view measurement board program code revision. Keysight U3606B User’s Guide...

  • Page 147: Utility Menu Items

    “(–)Er.NNN”, where “NNN” is the actual error number. Press [ ] again to read the remaining errors. The error queue is automatically cleared when all errors have been read (primary display shows “nonE”). Keysight U3606B User’s Guide...

  • Page 148: Configuring The Data Logging Parameters

    The data logging function provides you the convenience of recording test data for future review or analysis. Since data is stored in the non-volatile memory, the data remains saved even when the U3606B is turned OFF. The data logging feature collects measurement information over a user-specified duration.

  • Page 149: Enabling Refresh Hold

    – The data logging operation will stop automatically when it is completed or when the U3606B’s memory is full. – To download the stored data, you will need to connect a PC to the U3606B via remote operation. See the U3606B Programmer’s Reference for more details.
  • Page 150 – If the variation of the measured value exceeds the preset percentage, the NOTE refresh hold will be ready to trigger. – For voltage, current, and capacitance measurements, the reading value will not be updated when the reading falls below the threshold value. Keysight U3606B User’s Guide...

  • Page 151: Setting The Smooth Function

    The smooth function calculation can be restarted by pressing [MinMax] for more NOTE than one second. Press [ ] or [ ] to enable or disable the smooth function (“on” or “oF”). Number of points Fluctuation count Keysight U3606B User’s Guide...
  • Page 152 To set the number of points, press [ ] until the cursor position is on the number of points on the primary display. Press [ ] or [ ] to change the cursor position and [ ] or [ ] to change the values for the number of points (2 to 1999). Keysight U3606B User’s Guide...
  • Page 153 … = [(V * 9) + r ]/10 = [r + … + r ]/(x–1) x–1 x–2 x–1 x–1 x–2 x–1 = [(V * 9) + r ]/10 = [r + … + r x–1 x–1 Keysight U3606B User’s Guide...

  • Page 154: Configuring The Scan Signal Parameters

    1 step to 100 steps Dwelling time 1 s to 99 s [a] Range S1S2 (autoranging) is not supported for the Scan function. [b] Amplitude start position is fixed at 0 (V or A) by default. Keysight U3606B User’s Guide...
  • Page 155 100 steps gives an increment of 0.15 V per step. – The scan signal will “dwell” in the present step for the length of time stated in the scan dwelling time before incrementing to the next step. Keysight U3606B User’s Guide...

  • Page 156: Configuring The Ramp Signal Parameters

    Fastest of the instrument output capability [a] Range S1S2 (autoranging) is not supported for the Ramp function. [b] Amplitude start position is fixed at 0 (V or A) by default. [c] Typically ~100 ms per step. Keysight U3606B User’s Guide...
  • Page 157 For example, a 15 V amplitude end position divided by 100 steps gives an increment of 0.15 V per step. – The ramp dwelling time selected will be fastest of the instrument output capability. (Typically ~100 ms per step.) Keysight U3606B User’s Guide...

  • Page 158: Setting The Output Protection State

    – In the event that there is a large current over the system protection values (Table 4-4), the U3606B will trip to protect itself even if the triP option in Utility menu is set to “no”. Table 4-4 System protection values Range System protection (approx.)

  • Page 159: Adjusting The Soft Start Output

    “no” to disable the output protection state. Adjusting the soft start output The U3606B allows you the option of soft starting the DC power supply output. You can select a value from 1 to 10000 steps for the soft start output. This feature is useful to start a DC motor.

  • Page 160: Performing A Self-Test

    Press [ ] or [ ] to select “YES” and then press [Shift] > [Save] to save. The instrument will automatically exit the Utility menu and execute the self-test. If the self-test is successful, the U3606B will return to normal operation. If the power-on or complete self-test fails, the Error annunciator illuminates, and an error is stored in the error queue.

  • Page 161: Connecting To A Remote Interface

    Configuring the beeper Normally, the U3606B beeps whenever certain conditions are met (for example, the U3606B beeps when a stable reading is captured in reading hold mode). The beep driving frequency is set to “3840 Hz” by default, but may be disabled through the front panel.

  • Page 162: Changing The Power-On State

    The following procedure shows you how to enable or disable the automatic recall of the power-off state when the power is turned on. For remote interface operation, refer to the MEMory:STATe:RECall:AUTO command in the U3606B Programmer’s Reference. Press [ ] or [ ] to change the power-on state.

  • Page 163: Adjusting The Display Brightness

    – ramp, scan, and protection and limitation functions [a] Although the U3606B does not store the power-off protection and limitation of the source, it can recall your saved settings by remote or local operation when you select “LASt”. Adjusting the display brightness Press [ ] or [ ] to cycle between the available brightness levels (L-01, L-02, or L-03).

  • Page 164: Storing And Recalling Instrument States

    0, is managed by the instrument and stores the last power-down state. The instrument automatically saves the complete instrument configuration to state 00 whenever a power-down event occurs. For remote operation, refer to the MEMory:STATe:RECall:AUTO, *SAV, and *RCL commands in the U3606B Programmer’s Reference. Keysight U3606B User’s Guide...

  • Page 165: Storing A State

    To store to the selected state Press until the state number (01 to 16) you want to store to is shown on the primary display. You can also press [Shift] > [Save] to store the selected state. NOTE Keysight U3606B User’s Guide...

  • Page 166: Recalling A Stored State

    (00 to 16) you want to recall from is shown on the primary display. – You can also press [Shift] > [Save] to recall the selected state. NOTE – Select state 00 to recall the instrument last power-down state. Keysight U3606B User’s Guide...

  • Page 167: Remote Operation

    System-Related Operation Remote Operation The U3606B is shipped with both a GPIB (IEEE-488) interface and a USB 2.0 interface on the rear panel. Only one interface can be enabled at a time. The GPIB interface is selected by default when the U3606B is shipped from the factory.

  • Page 168: Configuring And Connecting The Gpib Interface

    Each device on the GPIB interface must have a unique address. You can set the U3606B address to any value between 1 and 30. The current address is displayed on the secondary display at the bottom left. The address is set to “01” when the U3606B is shipped from the factory.

  • Page 169: Configuring And Connecting The Usb Interface

    The U3606B complies with the syntax rules and conventions of SCPI (Standard Commands for Programmable Instruments). For a complete discussion of all the U3606B SCPI syntax available, refer to the NOTE U3606B Programmer’s Reference. This document is provided on the U3606B Product Reference CD-ROM that comes with your instrument.
  • Page 170 (default value is 5000 milliseconds). Some measurements may result in a delayed response time in the U3606B. It is recommended that you increase the SCPI query time-out to 15000 milliseconds or longer to avoid SCPI query time-out errors.

  • Page 171: Characteristics And Specifications

    Keysight U3606B Multimeter|DC Power Supply User’s Guide Characteristics and Specifications For the characteristics and specifications of the U3606B Multimeter|DC Power Supply, refer to the datasheet at http://literature.cdn.keysight.com/litweb/pdf/5991-2849EN.pdf...

  • Page 172: 5 Characteristics And Specifications

    Characteristics and Specifications THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U3606B User’s Guide...

  • Page 173: List Of Error Messages

    Keysight U3606B Multimeter|DC Power Supply User’s Guide List of Error Messages Error Messages The U3606B error messages are summarized in this chapter.

  • Page 174: Error Messages

    The interface-specific and global error queues are cleared by the clear status (*CLS) command and when the instrument power is cycled. The error queue will not be cleared by a Factory Reset (*RST command) or an Instrument Preset (SYSTem:PRESet command). Keysight U3606B User’s Guide...

  • Page 175: Command Errors

    Numeric data not allowed –130 Suffix error –131 Invalid suffix –134 Suffix too long –138 Suffix not allowed –141 Invalid character data –144 Character data too long –148 Character data not allowed –150 String data error Keysight U3606B User’s Guide...

  • Page 176: Execution Errors

    Error code Error message –200 Execution error –211 Trigger ignored –213 Init ignored –214 Trigger deadlock –220 Parameter error –221 Settings conflict –222 Data out of range –223 Too much data –230 Data corrupt or stale Keysight U3606B User’s Guide...

  • Page 177: Internal Errors

    Standard Event Status register bit 3. Table 6-5 List of device specific errors Error code Error message Voltage output over protection Current output over protection Voltage output over limit setting Current output over limit setting Input buffer overflow Keysight U3606B User’s Guide...

  • Page 178: Self-Test Errors

    Source Processor Failed Self-Test DC Path error AC Path attenuated error AC Path attenuated 10 error AC Path attenuated 100 or amplified 10 error Frequency measurement path failed Constant Current 0.2V/1kohm error Constant Current 0.2V/10kohm or amplified 11 error Keysight U3606B User’s Guide...

  • Page 179: Calibration Errors

    Cal DCI offset out of range Cal RES offset out of range Cal CAP offset out of range Cal RES open out of range Cal checksum failed, DCV corrections Cal checksum failed, DCI corrections Cal checksum failed, RES corrections Keysight U3606B User’s Guide...
  • Page 180 List of calibration errors (continued) Error code Error message Cal checksum failed, ACV corrections Cal checksum failed, ACI corrections Cal checksum failed, FREQ correction Cal checksum failed, CAP corrections Source board failed on reading Source board failed on sense Keysight U3606B User’s Guide...
