Define Instruments TEX-BAR Manual page 11

D You should now be able to remove
the back plate. If it does not unclip
easily, you may need to disengage
the two remaining tabs by repeat-
ing steps 5.2B–C on the other side
of the meter.

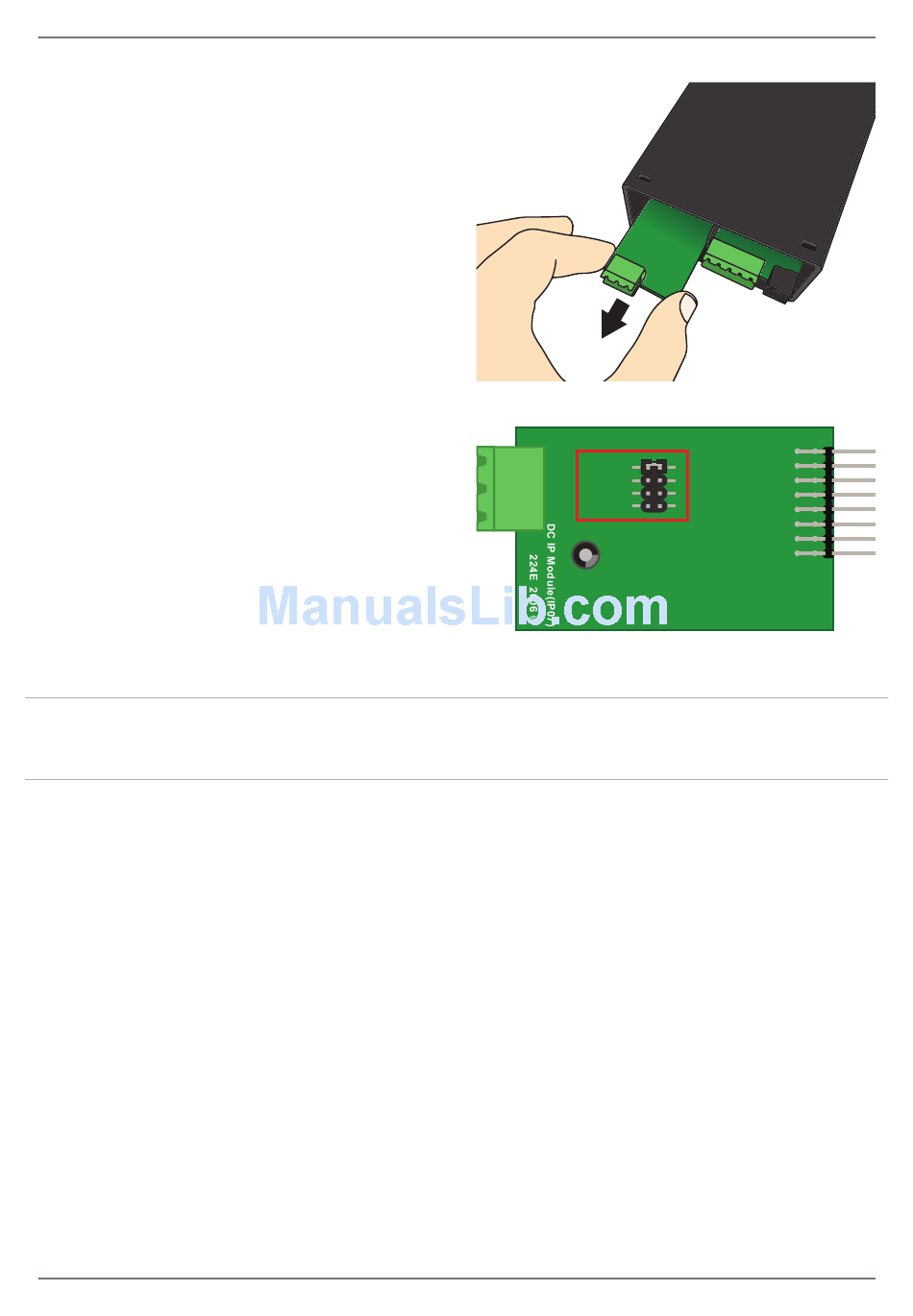

E Slide the analog input module out
of the meter case. (See 3.1A to
identify the input module.)
F Position the header on the input
module as required for your input
type and range:
› 20mA
› Custom Not used
› 2V
› 10V
Note that you will also need to change the Input Mode in soft ware from the front
panel - see 6.2C.
G Slide the input module back into the meter case.
Make sure that it is sitting in the tracks on the left and right. Press fi rmly until the input module
is fully inserted and sits fl ush with the other boards that are visible from the back of the meter.
H Replace the back plate.
Begin by inserting the two lower tabs into the slots, and then position the upper tabs so that
they will not catch on the top lip of the meter case. Apply fi rm pressure until the back plate
clicks into place.
I Reconnect the plugs and return the meter to the panel installation.
Don't forget that once the unit is connected and powered up, you will need to
enter the Input Setup menu (6.2) and confi rm that the correct Input Mode is
also selected (see 6.2C).
Copyright © 2015 Defi ne Instruments
0–20mA & 4–20mA
0–2V
0–10V
20mA
Custom
2V
10V
TEX-BAR-MAN-15V05 (0903)
11
