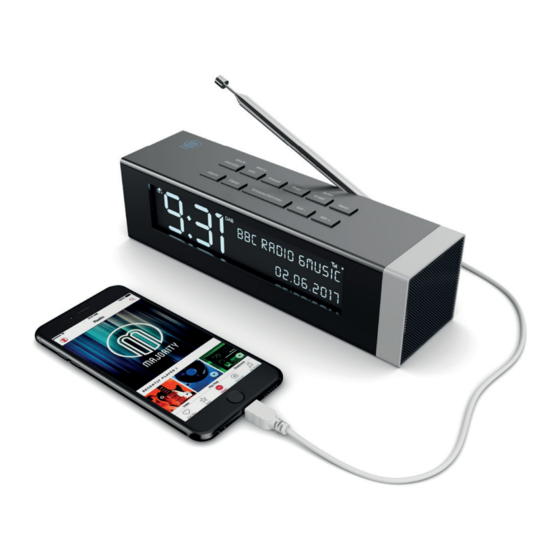

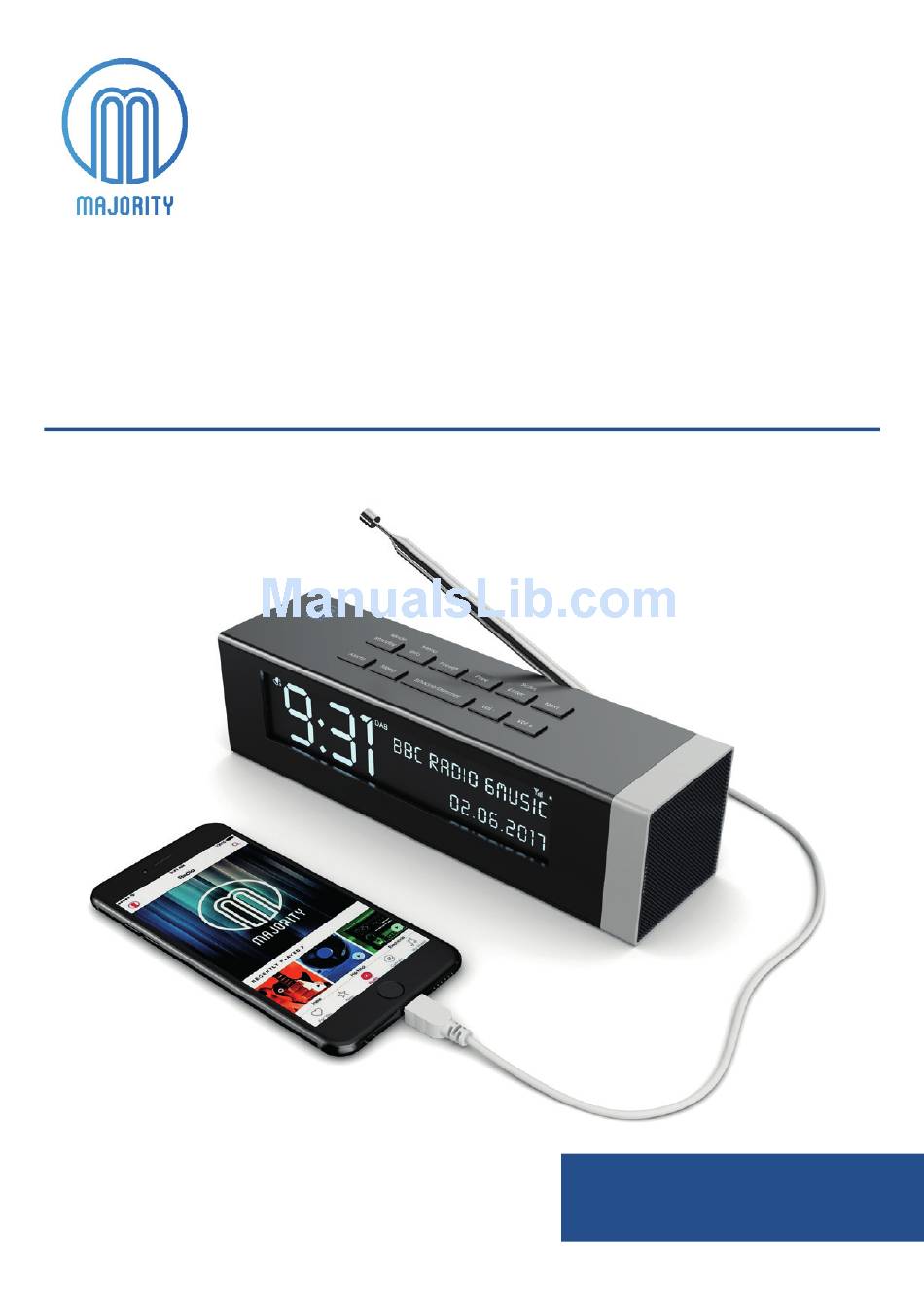

- Page 1 Majority Longstanton DAB / DAB+ / FM Radio LNG-DAB-BLK User Guide...
-
Page 2: Table Of Contents
Contents Controls and Functions ............. What’s in the box? ................. Instruction Guide ................Basic Operation ................DAB Radio ..................Set Up of the DAB Radio Preset Stations ......FM Radio ................... Set Up of the FM Radio Preset Stations ... -
Page 3: Controls And Functions
Controls and Functions Top View 1. Standby/Mode 7. Alarm 2. Info/Menu 8. Sleep 3. Preset 9. Snooze 4. Previous 10. Dimmer 5. Enter/Scan 11. Volume- 6. Next 12. Volume+... -
Page 4: Back View
Controls and Functions Back View 13. Antenna 15. DC 5V In 14. Headphone Input 16. USB Output Front View 17. Display Screen... -
Page 5: What's In The Box
What’s in the box? Majority Longstanton DAB / DAB+ /FM Radio Clock UK Standard Plug DC5V 2A Power Supply User Guide... -
Page 6: Instruction Guide
Instructions Guide Please note all (Ref.) refer to Page 1 Controls and Functions mapping guide. Basic Operation Plug the connector into the back of the system labelled DC 5V (Ref.15) and the power supply into the mains. Ensure the antenna (Ref.13) is extended as far as possible so that you can rotate it. -
Page 7: Dab Radio
Instructions Guide DAB / DAB+ Radio Press the ‘Standy/Mode’ button (Ref.1) to switch to DAB Radio. On first use it will automatically scan all stations and save them. Fully extend the antenna (Ref.13). To auto scan, press and hold the ‘Enter/Scan’ button (Ref.5) and then release. -
Page 8: Set Up Of The Dab Radio Preset Stations
Instructions Guide How to store a preset station Up to 10 stations can be set. To store a station that you are currently playing: Press and hold ‘Preset’ button (Ref.3). “<1: (Empty)” will show on the display. Use the ‘Previous’ or ‘Next’ buttons (Ref.4/6) to change the “<1” to the number you want to store the station as. -
Page 9: Fm Radio
Instructions Guide FM Radio Press the ‘Stanby/Mode’ button (Ref.1) multiple times to switch between DAB and FM. The first time you do this, the FM frequency “87.5 MHz” will be displayed on the screen. Fully extend the antenna (Ref.13). To auto scan, press and hold then release the ‘Next’ button (Ref.6). - Page 10 Instructions Guide To tune a specific frequency manually To listen to a specific frequency use the ‘Previous’ or ‘Next’ buttons (Ref.4/6) to search forward or back. Mono and Stereo In working mode, press the ‘Enter/Scan’ button (Ref.5), press mutiple times to switch between ‘Set to Mono’ or ‘Set to Stereo.
-
Page 11: Set Up Of The Fm Radio Preset Stations
Instructions Guide How to store a preset radio station Up to 10 stations can be set. To store a station that you are currently playing: Press and hold ‘Preset’ button (Ref.3). “<1: (Empty)” will show on the display. Use the ‘Previous’ or ‘Next’ buttons (Ref.4/6) to change the “<1” to the number you want to store the station as. -
Page 12: Station Information For Dab And Fm Radio
Instructions Guide Station information for DAB and FM Radio DAB / DAB+ Radio Press the ‘Info/Menu’ button (Ref.2) repeatedly to show the different programme information. Signal Strength: Displays a signal bar with the strength of the current station. Bit Error Rate: Provides details of the signal error rate. Channel and Frequency: Displays the station’s transmission channel number and frequency. - Page 13 Instructions Guide FM Radio Press the ‘Info/Menu’ button (Ref.2) repeatedly to show the different programme information. Programme Type: Displays a description of the type of programme provided by the broadcaster. Signal Strength: Displays a signal bar with the strength of the current station.
-
Page 14: Clock And Date Setting
Instructions Guide Manually Setting the Time The time will automatically update after the first use of DAB Radio. However, you can still set the time manually. Ensure the unit is turned on. Press and hold the ‘Info/Menu’ button (Ref.2). To make your selection, use the ‘Previous’ or ‘Next’ buttons (Ref.4/6) to choose your option. - Page 15 Instructions Guide Manually Setting the Date The date can be changed after changing the time. The year will flash on the display screen. Use the ‘Previous’ or ‘Next’ buttons (Ref.4/6), press until the required year is displayed. To confirm the year, press the ‘Enter/Scan’ button (Ref.5). The month will flash on the display screen.
-
Page 16: Dual Alarm Setting And Alarm Snooze
Instructions Guide Dual Alarm Setting Press and hold the ‘Alarm’ button (Ref.7). To make your selection, use the ‘Previous’ or ‘Next’ buttons (Ref.4/6) to choose your option. Select “Alarm 1 Set” and press the ‘Enter/Scan’ button (Ref.5). To turn the Alarm on or off, use the ‘Previous’ or ‘Next’ buttons (Ref.4/6) to select “ON”... - Page 17 Instructions Guide To turn off Alarm 1 or Alarm 2 Press and hold the ‘Info/Menu’ button (Ref.2). To make your selection, use the ‘Previous’ or ‘Next’ buttons (Ref.4/6) to choose your option. Select “Alarm 1 Set/Alarm 2 Set” and press the ‘Enter/Scan’ button (Ref.5).
-
Page 18: Other Functions
Instructions Guide Other Functions Sleep Setting This enables you to programme the radio to switch off at a specific time, up to 120 minutes from activation. Press and hold the ‘Sleep’ button (Ref.8). To make your selection, use the ‘Previous’ or ‘Next’ buttons (Ref.4/6) to choose your option. -
Page 19: System Reset
Instructions Guide System Reset Press and hold the ‘Info/Menu’ button (Ref.2). Use the ‘Previous’ or ‘Next’ buttons (Ref.4/6) to select “Factory reset” and press the ‘Enter/Scan’ button (Ref.5). The display screen will show “Factory reset”. Use the ‘Previous’ or ‘Next’ button (Ref.4/6) to select “Yes” or “No”. Press the ‘Enter/Scan’... - Page 20 Instructions Guide Mobile devices can be charged via the USB Port (Ref.16) on the back of the unit (USB lead not supplied). Brightness In working mode, press the ‘Snooze/Dimmer’ button (Ref.9/10) multiple times to change between three different brightness levels or Off. NOTE: If you set the display to Off please note that when you switch into standby and then switch on again the screen will be off but the radio will still be functioning.
-
Page 21: Technical Specifications
Instructions Guide Technical Specifications DC 5V 2A Power Supply: FM(87.5MHz – 108MHz Mode: DAB/DAB+ 174-240MHz Earphone jack Output Connector: Integral telescopic aerial Aerial: Power Supply and Batteries The unit is powered and charged by UK Standard Plug. Warranty All products come with a standard 12 month warranty. All www.majorityradios.co.uk items must be registered on the warranty to be valid. -
Page 22: Troubleshooting Guide
Troubleshooting Guide Observation Potential cause/solution No sound The station is not tuned in. Fine tune the station. The volume is set to a low position. Increase the volume. Headphones may be connected. Disconnect the headphones. Buttons are not Turn off the unit and turn on after a few seconds. working FM: Static sound Signal reception is low. -
Page 23: Important Safety Information
Safety Information ADDITIONAL WARNINGS 1. Read these instructions. 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping or available for download at www.majorityradios.co.uk splashing and no objects filled with liquid, such as 3. Heed all Warnings vases, shall be places on the apparatus. - Page 24 ffiAJORITY www.majorityradios.co.uk...
