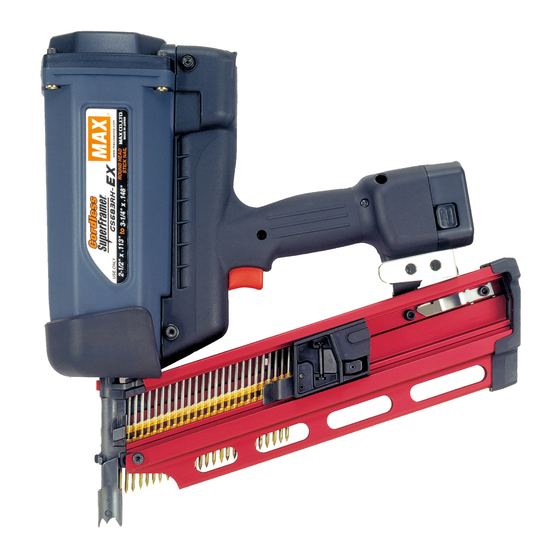

  • Page 1 GS683RH-EX GS683CH-EX MAX CORDLESS FASTENING SYSTEM SYSTÈME DE FIXATION SANS CORDON MAX SISTEMA DE FIJACIÓN SIN CORDÓN MAX OPERATING and MAINTENANCE MANUAL MANUEL D’UTILISATION et D’ENTRETIEN MANUAL DE OPERACIONES Y MANTENIMIENTO BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING: WARNING AND INSTRUCTIONS.
  • Page 2 INDEX INDEX INDICE ENGLISH Page 3 to 24 Page FRANÇAIS Page 25 to 46 Page ESPAÑOL Page 47 to 68 Page DEFINITIONS OF SIGNAL WORDS WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 3: Table Of Contents

    ENGLISH GS683RH-EX / GS683CH-EX MAX CORDLESS FASTENING SYSTEM INDEX 1. SAFETY INSTRUCTIONS ……………4 2. SPECIFICATIONS & TECHNICAL DATA …………………11 3. SAFETY DEVICE ……………………12 4. HOW TO USE THE BATTERY AND THE CHARGER ……………………13 5. HANDLING OF FUEL CELL ………17 6. INSTRUCTIONS FOR OPERATION …19 7.

  • Page 4: Safety Instructions

    Contains flammable gases wlich are under pressure. Failure to follow instructions may result in explosion or fire. q Be sure to use only MAX Fuel Cells. w Do not store the Fuel Cell in an ill-ventilated place. e Do not expose the Fuel Cell to the direct sunshine.
  • Page 5 CAUTIONS FOR CHARGING METHOD, THE CHARGER AND THE BATTERY q Be sure to use MAX JP606H. Be sure to use MAX JP606H for the tool. Never connect the tool to a power source or other rechargeable battery, dry cells or storage battery for automobiles.
  • Page 6 t Never use a transformer such as a booster for the power source of the charger. Failure to do will cause a problem or burnout of the charger this causes a trouble or burnout of the charger. y Never use an engine generator or DC power source to charge the Battery. Failure to do will cause a problem or burnout of the charger this causes a trouble or burnout of the charger.
  • Page 7 If the tool is activated, generates the heat or emits abnormal smell or sound, it is an indication of trouble. Using the tool in that condition results in an accident. If any abnormality is found, contact your nearest MAX authorized distributor. UNPLUG THE CHARGER WHEN IT IS NOT USED DO NOT USE THE TOOL IN AN ILL-VENTILATED PLACE If used in an ill-ventilated place, you could suffer from oxygen starvation.
  • Page 8 11. NEVER USE THE TOOL NEAR THE VOLATILE COMBUSTIBLE SUBSTANCES Never use the tool near gasoline, thinner, gas, paint or adhesive agent, because it could ignite or explode. 12. DO NOT BRING THE TOOL CLOSE TO FIRE 13. BE SURE TO USE THE TOOL IN THE WORKING ENVIRONMENT OF -5°C (23°F) TO 49°C 49°...
  • Page 9 21. NEVER POINT THE DISCHARGE OUTLET TOWARD YOURSELF AND OTHER PERSONNEL If the discharge outlet is pointed toward people, serious accidents may be caused when misfiring. Be sure the discharge outlet is not pointed toward people when the Fuel Cell and the Battery are inserted or not, loading and unloading the fasteners or similar operations.
  • Page 10 • Keep the tool, the Fuel Cell and the Battery in a dry place out of reach of children when not in use. • Do not use the tool without Safety Warning label. • Do not modify the tool from original design or function without approval by MAX CO., LTD.

  • Page 11: Specifications

    BATTERY HEAD Full round head Clipped head MAX Cordless Fastening System BATTERY CAPACITY 6V DC, 1.5 Ah Charger JC610M for MAX gas CHARGER nailer (AC adapter included) POWER SOURCE 100-240V AC, 50 or 60 Hz POWER CONSUMPTION 8VA (10V 800mA)

  • Page 12: Safety Device

    2. The tool starts dry-fire operation by simply applying the contact arm to the object. ※ A fan running sound is heard, but this is not a fault. If any abnormality is found, contact your nearest MAX authorized distributor for inspection/repairing.

  • Page 13: How To Use The Battery And The Charger

    4. HOW TO USE THE BATTERY AND THE CHARGER ● Be sure to charge MAX JP606H for the tool with MAX JC610M. If charged with other charger, WARNING: the Battery could fail to be properly charged as well as get broken, ignited or generate the heat.
  • Page 14 HOW TO USE THE CHARGER The special purpose charger JC610M has the LEDs (green, red) which indicate the status of the charger and Battery. Green LED Red LED Status Description The charger has been plugged in. (Power-on status: ○ ON ●...
  • Page 15 HOW TO CHARGE ● Charge the Battery at the specified voltage. WARNING: Be sure to charge from a 100-240 V AC (for household use) plug socket. Use of the non- specified voltage not only causes a trouble, but also is dangerous. ●...
  • Page 16 Preventing the Battery Pack from becoming inactive In the following cases the Battery Pack must be charged for 12 HOURS to reach top performance: ・ Upon purchasing the tool. ・ When the tool has not been used for 1 month or longer. ・...

  • Page 17: Handling Of Fuel Cell

    Therefore, utmost care should be taken when disposing the empty Fuel Cell. ● Be sure to use the Fuel Cell exclusively designed for the MAX Cordless Fastening System. WARNING: ●...
  • Page 18 SETTING THE FUEL CELL ● Be sure to release your finger from the Trigger. WARNING: ● Do not press the Contact Arm against the object. q Push up and pull the Fuel Cover to this side to open it. Fuel Cover w Directing the Jet Nozzle of the Metering Valve forward (toward the Air Filter Cover), set the Fuel Cell.

  • Page 19: Instructions For Operation

    DISPOSING OF THE USED FUEL CELL Combustible propellant gas still remains in the used Fuel Cell. ● Do not throw the used Fuel Cell into a fire. WARNING: ● Never smoke a cigarette. ● Never breathe in the gas. Dipose of all empty Fuel Cells. Remember to dispose of these cells where they will not be found by children, crushed, puncfured, or burned.
  • Page 20 ● If the tool is used for a long time, it could be heated and burn you. If any abnormality is found, contact your nearest MAX authorized distributor for inspection and repairing. ※ The fan keeps running for approx. 10 seconds even after driving the nails.
  • Page 21 DRIVING DEPTH ADJUSTMENT WARNING: Deeper Shallower ● ALWAYS remove Fuel Cell and Battery before making adjustment. ● Pay attention for heating-up of the Adjustment Dial. ● The adjustment Dial may become hot when the tool has been used constantly. Adjustment Dial The driving depth adjustment is made by adjusting the Adjustment Dial.
  • Page 22 REPLACING THE FUEL CELL Fuel Cover If the Fuel Gas is running out, the nails cannot be driven. WARNING: ● Be sure to release the Trigger. ● Do not press the Contact Arm against the object. q Push up and pull the Fuel Cover to this side to open it. w Nip the Metering Valve and remove the used Fuel Cell.

  • Page 23: Maintain For Performance

    INSPECT THE TOOL PERIODICALLY In order to maintain the performance of the tool, clean and inspect the tool periodically. To have it inspected, contact MAX authorised dealers. CLEAN THE AIR FILTER Clean the Air Filter every other day. Open the Air Filter Cover with a regular screwdriver, remove the Air Filter from the inside and clean it with an air gun, and so on.

  • Page 24: Troubleshooting/Repairs

    9. TROUBLE SHOOTING/REPAIRS q The repairs shall be carried out only by the MAX authorised dealers. w Removing Jammed Nail ● Remove the Fuel Cell and Battery. WARNING: Procedure q Take out the nails from the inside of the Magazine.
  • Page 25 • El contenido de este manual puede ser cambiado sin noticia previa para mejoramiento. 〔 〕 6-6 NIHONBASHI-HAKOZAKI-CHO, CHUO-KU, TOKYO, JAPAN Tel: (03) 3669-8131 Telefax: (03) 3669-7104 www.maxusacorp.com (USA Site) www.max-ltd.co.jp/int/ (GLOBAL Site) 4006043 140421-00/04 PRINTED IN JAPAN IMPRIMÉ AU JAPON IMPRESO EN JAPÓN...
