Max NF550/15-65 Operating And Maintenance Manual

Max NF550/15-65 Operating And Maintenance Manual

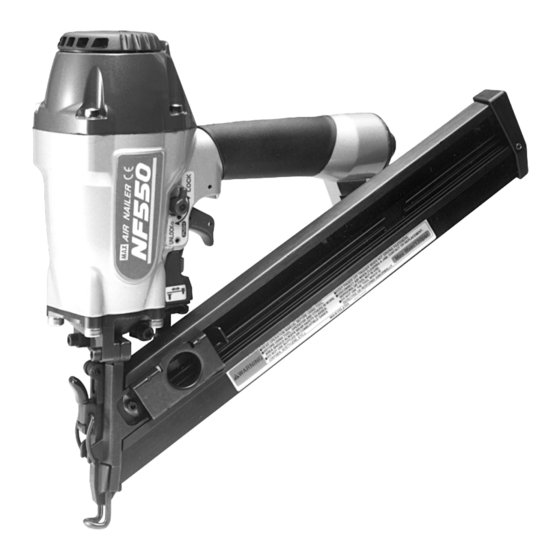

15 ga. angled finish nailer

Advertisement

Quick Links

NF550/15-65
15 GA. ANGLED FINISH NAILER
OPERATING and MAINTENANCE MANUAL
WARNING:
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING
AND INSTRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.

Advertisement

loading
Need help?

Need help?

Do you have a question about the NF550/15-65 and is the answer not in the manual?

Questions and answers

Summary of Contents for Max NF550/15-65

  • Page 1 NF550/15-65 15 GA. ANGLED FINISH NAILER OPERATING and MAINTENANCE MANUAL WARNING: BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
  • Page 2 INDEX ENGLISH Page 3 to 16 Page DEFINITIONS OF SIGNAL WORDS WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
  • Page 3: Table Of Contents

    ENGLISH NF550/15-65 15 GA. ANGLED FINISH NAILER INDEX 1. SAFETY INSTRUCTIONS ……………4 2. SPECIFICATIONS & TECHNICAL DATA……………………7 3. AIR SUPPLY AND CONNECTIONS …8 4. INSTRUCTIONS FOR OPERATION …9 5. MAINTAIN FOR PERFORMANCE …16 6. STORING ……………………………16 7. TROUBLESHOOTING/REPAIRS……16 OPERATING and MAINTENANCE MANUAL...
  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS WARNING: TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE BEFORE USING THE TOOL, READ CAREFULLY AND UNDERSTAND THE FOLLOWING “SAFETY INSTRUCTIONS”. FAILURE TO FOLLOW WARNINGS COULD RESULT IN DEATH OR SERIOUS INJURY. PRECAUTIONS ON USING THE TOOL WEAR SAFETY GLASSES OR GOGGLES Danger to the eyes always exists due to the possibility of dust being blown up by the exhausted air or of a fastener flying up due to the improper handling of the tool.
  • Page 5 INSPECT SCREW TIGHTNESS Loose or improperly installed screws or bolts cause accidents and tool damage when the tool is put into operation. Inspect to confirm that all screws and bolts are tight and properly installed prior to operating the tool. DO NOT TOUCH THE TRIGGER UNLESS YOU INTEND TO DRIVE A FASTENER Whenever the air supply is connected to the tool, never touch the trigger unless you intend to drive a fastener into the work.
  • Page 6 • Keep the tool in a dry place out of reach of children when not in use. • Do not use the tool without Safety Warning label. • Do not modify the tool from original design or function without approval by MAX CO., LTD.
  • Page 7: Specifications

    2. SPECIFICATIONS AND TECHNICAL DATA 1. NAME OF PARTS q Frame w Cylinder Cap e Driver Guide r Magazine t Trigger 2. TOOL SPECIFICATIONS 3. FASTENER SPECIFICATIONS PRODUCT NO. NF550/15-65 Brad nails HEIGHT 12-1/2˝ (317 mm) 1-1/4" WIDTH 3-1/4˝ (84 mm) (32mm) 1-1/2" LENGTH 13-5/8˝...
  • Page 8: Air Supply And Connections

    Air compressor Air filter Oiler HOSES: Hose has a min. ID of 1/4˝ (6 mm) and max. length of no more than 17˝ (5 Air hose meters). The supply hose should contain a fitting that will provide “quick disconnecting” from the male plug on the tool.
  • Page 9: Instructions For Operation

    4. INSTRUCTIONS FOR OPERATION Read section titled “SAFETY INSTRUCTIONS”. BEFORE OPERATION q Wear Safety Glasses or Goggles. w Do not connect the air supply. e Inspect screw tightness. r Check operation of the contact arm & trigger if moving smoothly. t Connect the air supply.
  • Page 10 e Release and return the pusher. TEST OPERATION q Adjust the air pressure at 78 p.s.i. (5.5 bar) and connect the air supply. w Without touching the trigger, depress the contact arm against the work-piece. Pull the trigger. (The tool must fire the fastener.) e With the tool off the work-piece, pull the trigger.
  • Page 11 DRIVING FASTENERS NOTE: This tool is shipped with SINGLE ACTUATION selected. WARNING: ● To avoid double firing or accidental firing, pull the trigger rapidly and firmly. ● SINGLE ACTUATION is different from SEQUENTIAL TRIP. ● The tool with SINGLE ACTUATION drives a nail each time both when depressing the Contact Arm while keeping the Trigger pulled, and when pullimg the Trigger and keeping it pulled after the Contact Arm depressed.
  • Page 12 WARNING: ● Use sintering steel grey metallic color Switching Lever Confirm and use the designated original Switching Lever when carrying out the switching back procedure. The use of Switching Lever other than the designated original one will cause serious accidents. (e.g., firing fasteners just pulling trigger, etc.) Color Shape (1/1 scale)
  • Page 13 CONTACT TRIP MODEL with ANTI-DOUBLE FIRE MECHANISM The anti-double fire mechanism (US patent 5597106, UK patent 2286790) is installed on this tool. The common operating procedure on “Contact Trip” tools is for the operator to contact the work to actuate the trip mechanism while keeping the trigger pulled, thus driving a fastener each time the work is contacted.
  • Page 14 SEQUENTIAL TRIP The Sequential Trip requires the operator to hold the tool against the work before pulling the trigger. This makes accurate fastener placement easier, for instance on framing, toe nailing and crating applications. The Sequential Trip allows exact fastener location without the possibility of driving a second fastener on recoil, as described under “Contact Trip”.
  • Page 15 DIRECTIONAL EXHAUST COVER WARNING: ALWAYS disconnect air supply before rotating the exhaust cover. Direction of the exhaust air is changeable by rotating exhaust cover by hand. TRIGGER LOCK MECHANISM The tool is equipped with a trigger lock mechanism. Push and rotate the trigger LOCK Trigger lock dial to the trigger UNLOCK position before driving nails.
  • Page 16: Maintain For Performance

    All quality tools will eventually require servicing or replacement of parts because of wear from the normal use. 7. TROUBLE SHOOTING/REPAIRS The troubleshooting and/or repairs shall be carried out only by the MAX CO., LTD. authorised distributors or by other specialists. Supplement to the operating instruction According to the European Norm EN 792-13 the regulation is valid from 01.01.2001 that all fastener...
  • Page 17 Recycled paper is used for this manual and its recyclable. • The content of this manual might be changed without notice for improvement. 〔 〕 6-6 NIHONBASHI-HAKOZAKI-CHO, CHUO-KU, TOKYO, JAPAN Tel: (03) 3669-8131 Telefax: (03) 3669-7104 www.maxusacorp.com (USA Site) www.max-ltd.co.jp/int/ (GLOBAL Site) www.max-europe.com ★ 071205-00/00 PRINTED IN JAPAN...
