CN650M

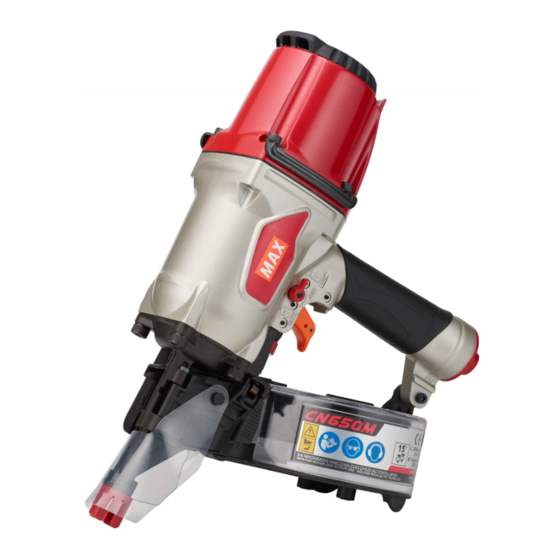

PNEUMATIC COIL NAILER
DRUCKLUFT-COIL-NAGLER
CLOUEUSES PNEUMATIQUES
A BOBINES
SPARACHIODI AD ARIA COMPRESSA
CON CARICAMENTO A ROTOLO
CLAVADORAS NEUMATICAS PARA
ROLLOS DE CLAVOS
OPERATING and MAINTENANCE MANUAL
MANUEL D'UTILISATION et D'ENTRETIEN
MANUALE DI FUNZIONAMENTO E MANUTENZIONE
MANUAL DE OPERACIONES Y MANTENIMIENTO
WARNING:
ACHTUNG!
AVERTISSEMENT:
ATTENZIONE:
ATENCIÓN:
BETRIEBSANLEITUNG
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND
INSTRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
LESEN SIE VOR INBETRIEBNAHME DES GERÄTES DIE GEBRAUCHS- UND SICHERHEITS-
HINWEISE. BITTE BEWAHREN SIE DIE GEBRAUCHS- UND SICHERHEITSHINWEISE AUF,
DAMIT SIE AUCH SPÄTER EINGESEHEN WERDEN KÖNNEN.
AVANT D'UTILISER CET OUTIL, LIRE CE MANUEL ET LES CONSIGNES DE SECURITE
AFIN DE GARANTIR UN FONCTIONNEMENT SUR.
CONSERVER CE MANUEL EN LIEU SUR AVEC L'OUTIL AFIN DE POUVOIR LE CONSULTER
ULTERIEUREMENT.
PRIMA DI USARE QUESTA MACCHINA, STUDIARE IL MANUALE PER PRENDERE ATTO
DEGLI AVVERTIMENTI E DELLE ISTRUZIONIPER LA SICUREZZA.
TENERE QUESTE ISTRUZIONI INSIEME ALLO STRUMENTO PER CONSULTAZIONI FUTURE
PARA EVITAR GRAVES DAÑOS PERSONALES O EN LA PROPIEDAD.
ANTES DE EMPLEAR LA HERRAMIENTA, LEER CON ATENCIÓN Y COMPRENDER LOS
SIGUIENTES INSTRUCCIONES DE SEGURIDAD.
Advertisement
Table of Contents
Related Manuals for Max CN650M
Summary of Contents for Max CN650M
- Page 1 CN650M PNEUMATIC COIL NAILER DRUCKLUFT-COIL-NAGLER CLOUEUSES PNEUMATIQUES A BOBINES SPARACHIODI AD ARIA COMPRESSA CON CARICAMENTO A ROTOLO CLAVADORAS NEUMATICAS PARA ROLLOS DE CLAVOS OPERATING and MAINTENANCE MANUAL BETRIEBSANLEITUNG MANUEL D’UTILISATION et D’ENTRETIEN MANUALE DI FUNZIONAMENTO E MANUTENZIONE MANUAL DE OPERACIONES Y MANTENIMIENTO...
- Page 2 INDEX INHALTSVERZEICHNIS INDEX INDICE INDICE ENGLISH Page 3 to 15 Page DEUTSCH Page 17 to 29 Page FRANÇAIS Page 31 to 43 Page ITALIANO Page 45 to 57 Page ESPAÑOL Page 59 to 71 Page DEFINITIONS OF SIGNAL WORDS WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
-
Page 3: Table Of Contents
ENGLISH CN650M PNEUMATIC COIL NAILER INDEX 1. SAFETY INSTRUCTIONS ……………4 2. SPECIFICATIONS & TECHNICAL DATA……………………6 3. AIR SUPPLY AND CONNECTIONS …8 4. INSTRUCTIONS FOR OPERATION …9 5. ABOUT VERTICAL DRIVIN STAND (Optional)……………………………13 6. WHEN USING THE METAL PLATE NAILS ………………………………14 7. -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING: TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE BEFORE USING THE TOOL, READ CAREFULLY AND UNDERSTAND THE FOLLOWING “SAFETY INSTRUCTIONS”: PRECAUTIONS ON USING THE TOOL WEAR SAFETY GLASSES OR GOGGLES Danger to the eyes always exists due to the possibility of dust being blown up by the exhausted air or of a fastener flying up due to the improper handling of the tool. - Page 5 • Keep the tool in a dry place out of reach of children when not in use. • Do not use the tool without Safety Warning label. • Do not modify the tool from original design or function without approval by MAX CO., LTD.
-
Page 6: Specifications & Technical Data
Nose t Magazine y Trigger u Grip i Exhaust Cover o Trigger Lock Dial !0 Holder 2. TOOL SPECIFICATIONS PRODUCT NO. CN650M HEIGHT 15˝ (381 mm) WIDTH 5-1/4˝ (133 mm) LENGTH 13˝ (330 mm) WEIGHT 6.8 lbs. (3.1 kg) RECOMMENDED 70 to 100 p.s.i. - Page 7 4. TECHNICAL DATA q NOISE A-weighted single-event ------ LWA, 1s, d 96.3 dB sound power level A-weighted single-event ------ L p A , 1s, d 86.1 dB emission sound pressure level at work station These values are determined and documented in accordance to EN12549 : 1999. w VIBRATION Vibration characteristic value ＝...
-
Page 8: Air Supply And Connections
Air compressor Air filter Oiler HOSES: Hose has a min. ID of 1/4˝ (6 mm) and max. length of no more than 17˝ (5 Air hose meters). The supply hose should contain a fitting that will provide “quick disconnecting” from the male plug on the tool. -
Page 9: Instructions For Operation
4. INSTRUCTIONS FOR OPERATION Read section titled “SAFETY INSTRUCTIONS”. BEFORE OPERATION q Wear Safety Glasses or Goggles. w Do not connect the air supply. e Inspect screw tightness. r Check operation of the contact arm & trigger if moving smoothly. t Connect the air supply. - Page 10 e Nail loading: Place a coil of nails in the magazine. Uncoil enough nails to reach the feed pawl, and place the second nail between the teeth on the feed pawl. The nail heads fit in slot Feed pawl on nose. Nail r Swing cover closed.
- Page 11 SEQUENTIAL TRIP The Sequential Trip requires the operator to hold the tool against the work before pulling the trigger. This makes accurate fastener placement easier, for instance on framing, toe nailing and crating applications. The Sequential Trip allows exact fastener location without the possibility of driving a second fastener on recoil, as described under “Contact Trip”.
- Page 12 DRIVING DEPTH ADJUSTMENT DIAL WARNING: ALWAYS disconnect air supply before adjustment dial. Adjustment dial q With air pressure set, drive nails into a representative material sample to determine if adjustment is necessary. w If adjustment is required, disconnect air supply. Deeper Shallow e Refer to the mark on the contact arm for direction to turn the adjustment dial.
-
Page 13: About Vertical Drivin Stand
5. ABOUT VERTICAL DRIVING STAND (Optional) The vertical driving stand is optionally available. The following describes how to mount and use it. MOUNTING THE VERTICAL DRIVING STAND Hexagon wrench key The vertical driving stand comes with 5×10 hexagon socket head bolts (2 pieces) and a hexagon wrench key-4. -
Page 14: When Using The Metal Plate Nails
6. WHEN USING THE METAL PLATE NAILS WARNING: Carry out construction work based on the Construction Standards. ● When there are no construction criteria specified, see a reference construction example. ● Never use for the ceiling (ceiling groundwork included) and roof (roof groundwork ●... - Page 16 • El contenido de este manual puede ser cambiado sin noticia previa para mejoramiento. 〔 〕 6-6 NIHONBASHI-HAKOZAKI-CHO, CHUO-KU, TOKYO, JAPAN Tel: (03) 3669-8131 Telefax: (03) 3669-7104 http://www.maxusacorp.com (USA Site) http://www.max-ltd.co.jp/int/ (GLOBAL Site) PRINTED IN JAPAN GEDRUCKT IN JAPAN IMPRIMÉ AU JAPON STAMPATO IN GIAPPONE IMPRESO EN JAPÓN...
