Correct operation of VISULAS 532s is imperative for safe
functioning. Please familiarize yourself thoroughly with the
contents of the user manual for VISULAS 532s before using the
VISULAS 532s.
To operate the VISULAS YAG III in combination with the
VISULAS 532s, the two laser consoles must be connected by a
special interface cable (Combi cable).
As soon as this cable is connected, the buttons on the YAG III laser
console control panel will be deactivated and combination mode
will be selected.

VISULAS 532s power-up mode

• When the instrument is switched on using the key switch on the
VISULAS 532s laser console (see VISULAS 532s user manual) the start-up
screen is displayed on the control panel (Fig. 31).
• The system automatically performs a self-test.
• The user interface includes a progress bar, which shows the progress of
the system test.
• When the system test has been successfully completed, the program
switches automatically to the main menu (see VISULAS 532s user
manual).
• You can switch directly into Diagnosis mode during the system test.
• To do so, touch the eco button.

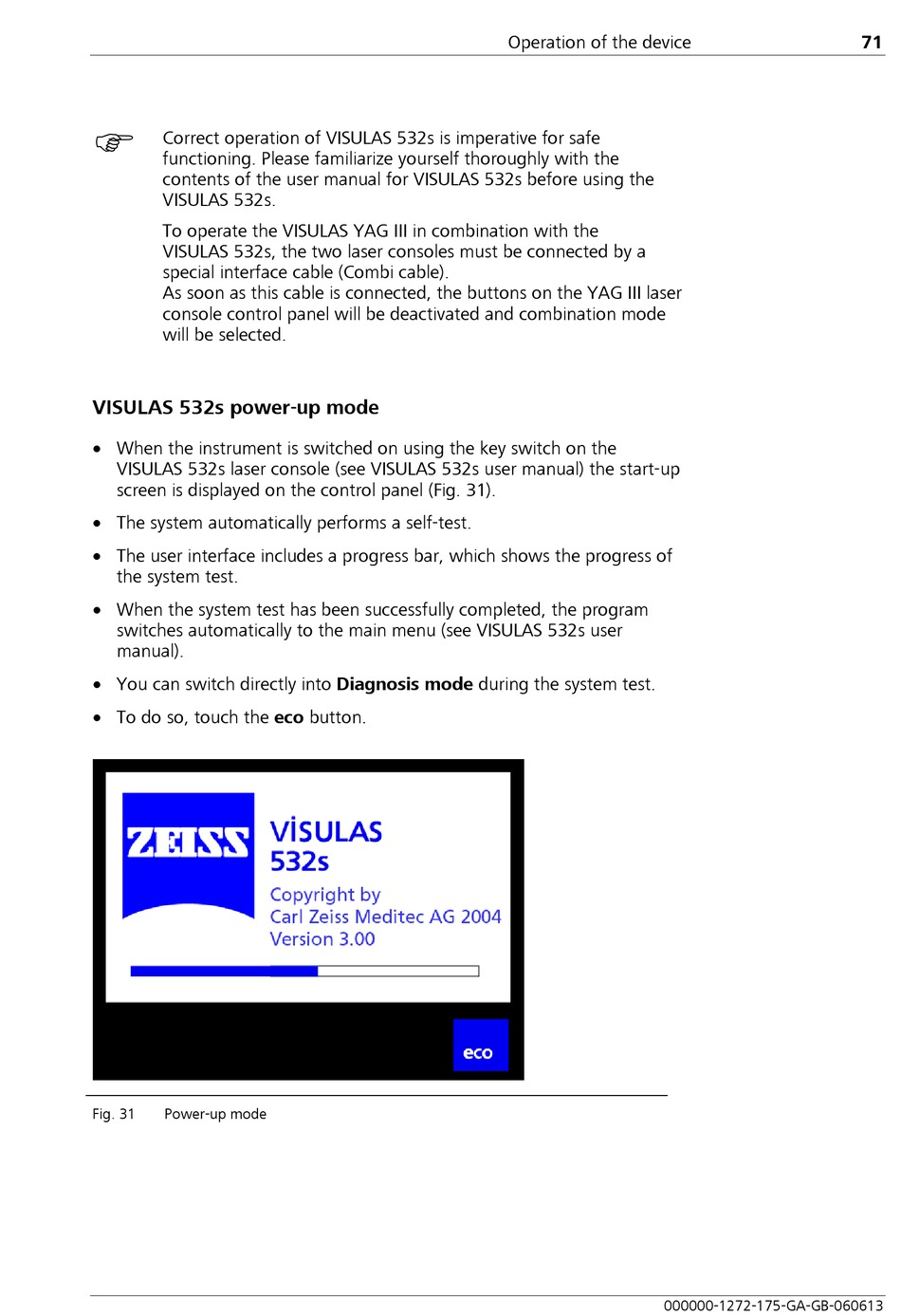

Fig. 31 Power-up mode
