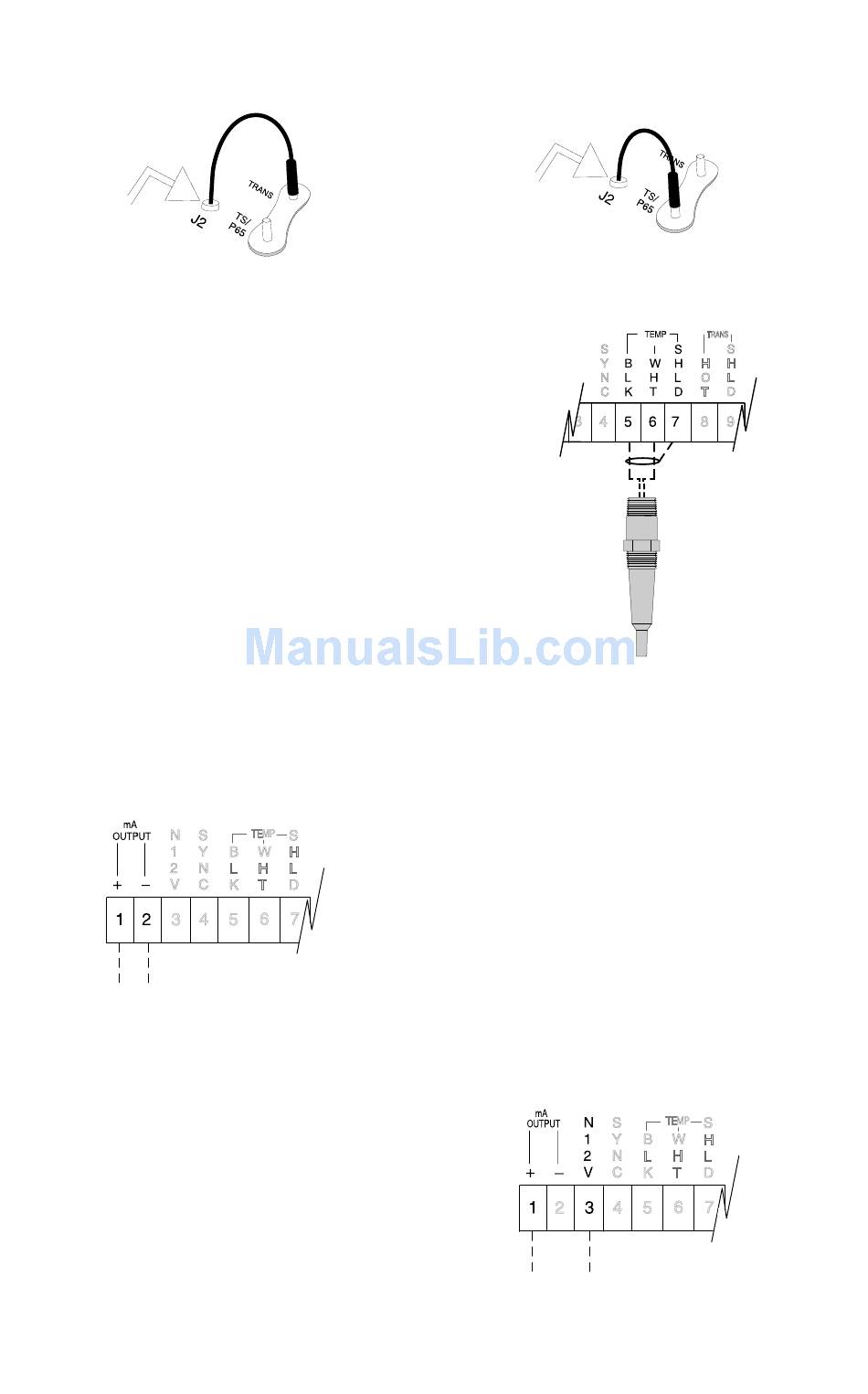

SELECTING TEMPERATURE SOURCE
Integral Sensor (transducer)
board 'B'
CURRENT OUTPUT
mA Output - GROUNDED
(additional to basic wiring)
to customer's equipment
maximum loading 350 Ω
PL-443
Note : TB1-2 is internally
connected to electrical
ground TB1-28.
mA output wiring into floating input ONLY.
750 Ω max. Do Not Ground!
3 – 4
TS-3 or Program
board 'B'
mA Output - FLOATING
(additional to basic wiring)
