Removal and Installation Procedures
6- - 18
T-15 TORX
drive screw (2)
Cable
restraint
T-15
TORX
drive
screw (4)
Printer
cable

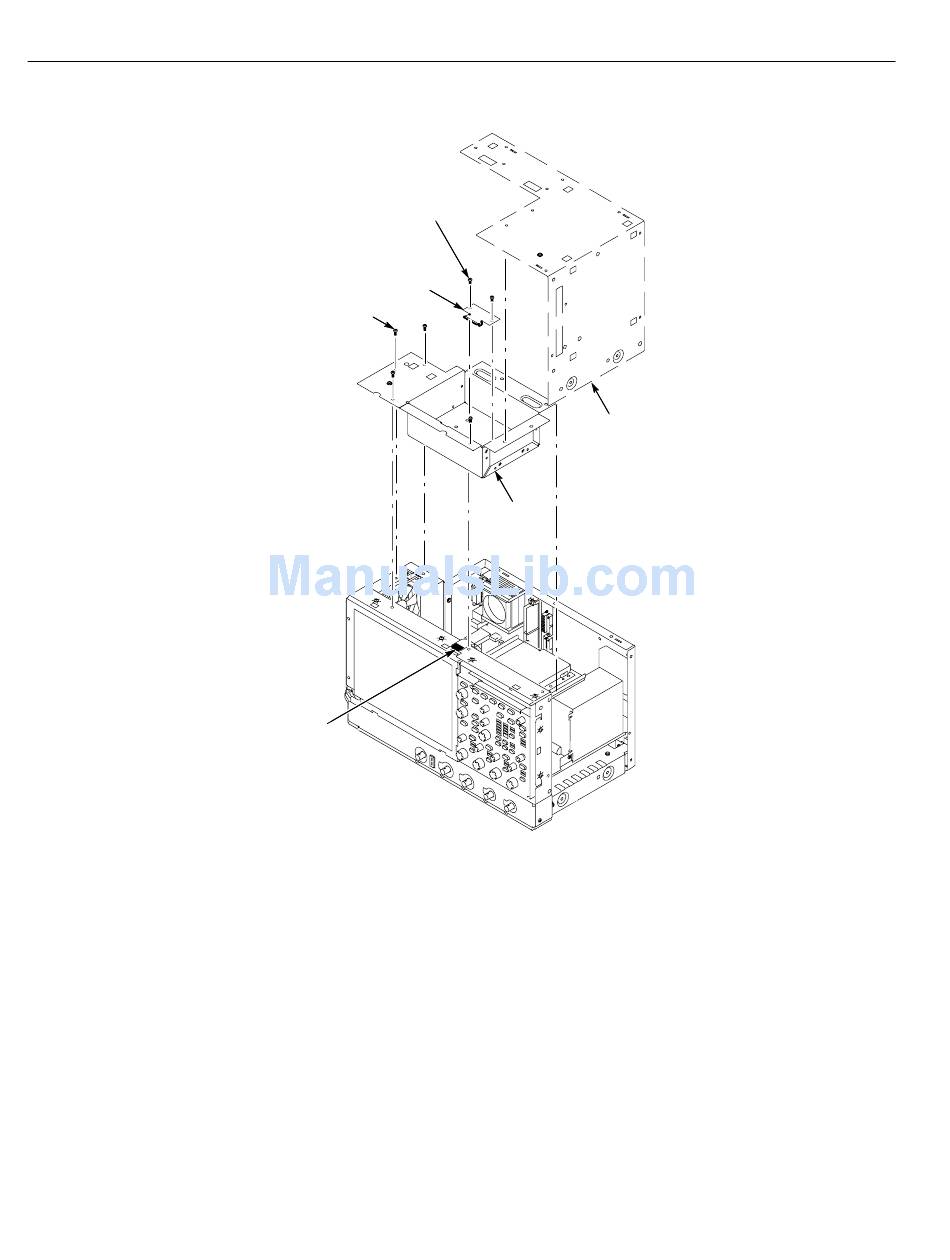

Figure 6- - 6: Printer frame removal
4. Reverse the procedure to reinstall.
Right side
cover
Printer
frame
TDS5000B Series Service Manual
