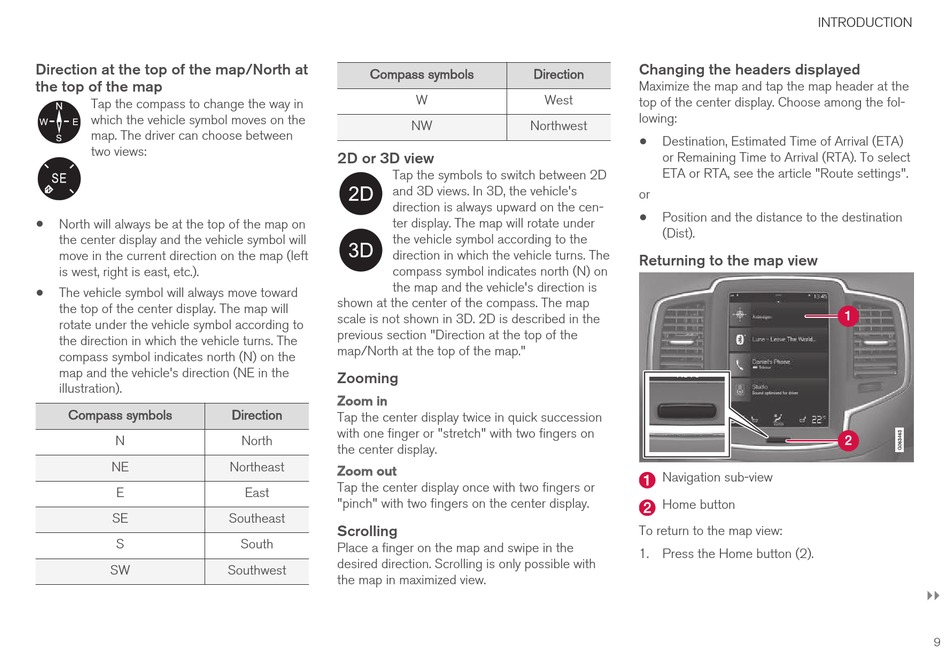

Volvo SENSUS NAVIGATION Manual page 11

Direction at the top of the map/North at
the top of the map
Tap the compass to change the way in
which the vehicle symbol moves on the
map. The driver can choose between
two views:
•
North will always be at the top of the map on
the center display and the vehicle symbol will
move in the current direction on the map (left
is west, right is east, etc.).
•
The vehicle symbol will always move toward
the top of the center display. The map will
rotate under the vehicle symbol according to
the direction in which the vehicle turns. The
compass symbol indicates north (N) on the
map and the vehicle's direction (NE in the
illustration).
Compass symbols
N
NE
E
SE
S
SW
Compass symbols
2D or 3D view
Tap the symbols to switch between 2D
and 3D views. In 3D, the vehicle's
direction is always upward on the cen-
ter display. The map will rotate under
the vehicle symbol according to the
direction in which the vehicle turns. The
compass symbol indicates north (N) on
the map and the vehicle's direction is
shown at the center of the compass. The map
scale is not shown in 3D. 2D is described in the
previous section "Direction at the top of the
map/North at the top of the map."
Zooming
Zoom in
Direction
Tap the center display twice in quick succession
with one finger or "stretch" with two fingers on
North
the center display.
Northeast
Zoom out
Tap the center display once with two fingers or
East
"pinch" with two fingers on the center display.
Southeast
Scrolling
South
Place a finger on the map and swipe in the
desired direction. Scrolling is only possible with
Southwest
the map in maximized view.
Direction
W West
NW Northwest
INTRODUCTION
Changing the headers displayed
Maximize the map and tap the map header at the
top of the center display. Choose among the fol-
lowing:
•
Destination, Estimated Time of Arrival (ETA)
or Remaining Time to Arrival (RTA). To select
ETA or RTA, see the article "Route settings".
or
•
Position and the distance to the destination
(Dist).
Returning to the map view
Navigation sub-view
Home button
To return to the map view:
1. Press the Home button (2).
}}
9
