King Canada 9999 ITM Instruction Manual

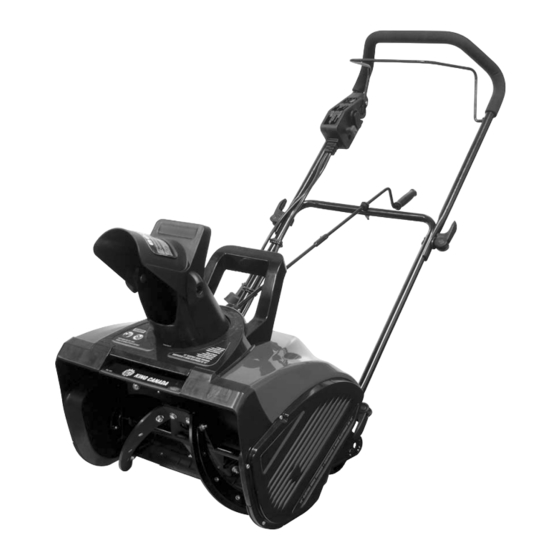

45.7 cm (18 in.) electric snow thrower
Hide thumbs

Advertisement

Table of Contents

KING CANADA
45.7 cm (18 in.) ELECTRIC SNOW THROWER
MODEL: 9999 ITM./ART. 362885

INSTRUCTION MANUAL

COPYRIGHT © 2013 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

Advertisement

Table of Contents
loading

Related Manuals for King Canada 9999 ITM

Summary of Contents for King Canada 9999 ITM

  • Page 1: Instruction Manual

    KING CANADA 45.7 cm (18 in.) ELECTRIC SNOW THROWER MODEL: 9999 ITM./ART. 362885 INSTRUCTION MANUAL COPYRIGHT © 2013 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

  • Page 2: Warranty Information

    LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials.
  • Page 3 GENERAL SAFETY INSTRUCTIONS FOR ELECTRIC SNOW THROWERS GENERAL SAFETY INSTRUCTIONS 1. KNOW YOUR TOOL. 13. MAINTAIN TOOL WITH CARE. Read and understand the owner’s manual and labels affixed to the tool. Keep tools sharp and clean for best and safest performance. Follow Learn its application and limitations as well as its specific potential instructions for lubricating and changing accessories.

  • Page 4: Specific Safety Instructions

    SPECIFIC SAFETY INSTRUCTIONS FOR ELECTRIC SNOW THROWERS SPECIFIC SAFETY INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, operate or install the product. Work Area Snow thrower Use and Care Do not operate snow thrower in an explosive atmosphere, such as in 1.
  • Page 5 GETTING TO KNOW YOUR ELECTRIC SNOW THROWER 1. Removable safety key. 9. Rubber-tipped auger blades. 2. Push start button. 10. Rear scraper. 3. Handle bar. 11. 180 adjustable chute. 4. Adjustable chute crank handle. 12. Chute deflector. 5. Top frame/handle assembly. 13.

  • Page 6: Electrical Information

    ELECTRICAL INFORMATION WARNING! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THIS POWER TOOL DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! GENERAL INFORMATION- 120V single phase operation This snow thrower comes with a 13 Amp. 120V single phase motor. WARNING! YOUR SNOW THROWER MUST BE CONNECTED TO A 110V-120V, 15 AMP.
  • Page 7 ASSEMBLY ASSEMBLY INSTRUCTIONS 1. Hold the middle frame (A) Fig.4 so that the screw holes align with the holes on the lower frame (B). Note: Make sure the middle frame is held upright, positioning the middle frame in the reverse direction will prevent proper assembly. FIGURE 4 2.
  • Page 8 ASSEMBLY ASSEMBLY INSTRUCTIONS 7. Locate the three cable clips (A) Fig.8 in the parts bag. Secure the power cord to the frame of the unit by clipping them onto the frame at evenly spaced intervals. FIGURE 8 8. Loosen the two knobs on the chute deflector (A) Fig.9. Lift the chute deflector (A) so that it snaps and locks securely onto the discharge chute (B).
  • Page 9 ASSEMBLY ASSEMBLY INSTRUCTIONS 11. Slide the upper chute crank (A) Fig.12 into the lower chute crank (B), aligning the screw holes. FIGURE 12 12. Tighten the screw (A) Fig.13 into the aligned holes using a Phillips screwdriver (B). Fasten the nut (C) with an open wrench. FIGURE 13 13.

  • Page 10: Assembly And Operation

    ASSEMBLY & OPERATION ASSEMBLY INSTRUCTIONS 15. Remove the washer (A) Fig.16 and nut (B) from the eye bolt with rubber grommet (C) found on the upper chute crank (D). FIGURE 16 16. Position the chute crank (A) Fig.17 so that the eye bolt with rubber grommet (B) inserts into the centre hole of the middle frame (C).

  • Page 11: Operation

    OPERATION OPERATING INSTRUCTIONS WARNING! Damaged electrical cords present risk of fire, electric shock, and serious bodily injury. Before operating the snow thrower, carefully examine the electrical cord. If the cord is damaged, do not use the snow thrower. Replace or repair the damaged cord immediately.

  • Page 12: Operation And Maintenance

    • Store the unit in a locked and dry or high and dry place to prevent unauthorized use/damage and keep out of the reach of children. Store the instruction manual along with unit for future use. WARNING! All repairs, electrical or mechanical, should be attempted only by trained repairmen. Contact the nearest King Canada Service Centre. Use only identical replacement parts, any other may create a hazard.
