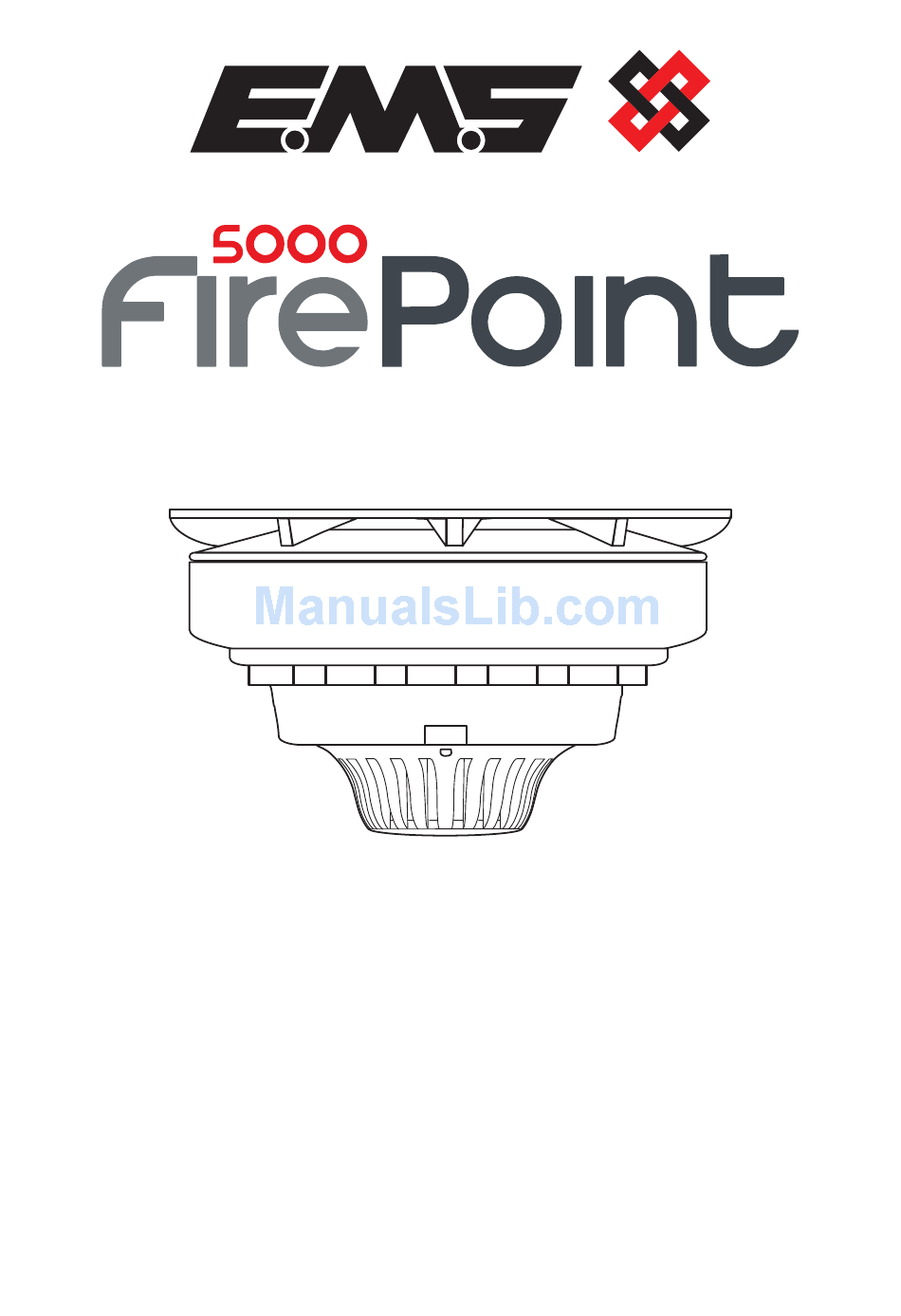

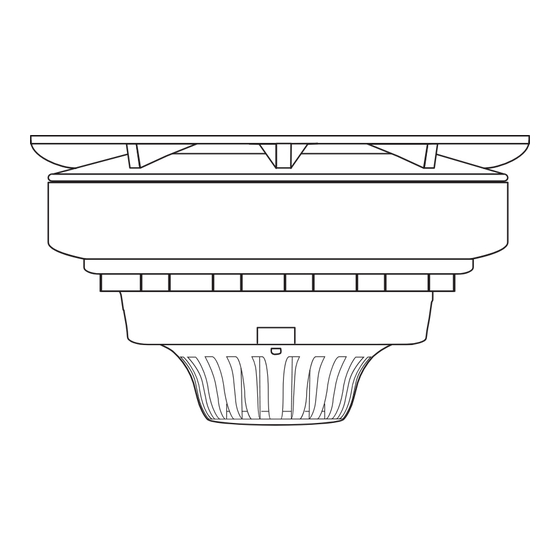

COMBINED SOUNDER / SENSOR INSTALLATION MANUAL MK235 Iss 4 20/12/2016 AJM... -
Page 2: Mounting Plate
Logging the device to the system If the installation has been ordered as a complete system the devices and panel will be supplied already “pre-programmed”. The process of adding radio devices (Callpoints, Detectors, Sounders, Input / Output Units and Transponders) to the System 5000 Control Panel, is largely carried out automatically, by the Panel’s own operating system. -
Page 3: Setting Sensitivity
Setting Sensitivity The device is able to detect either smoke or heat by simply changing the sensor’s switch con guration. This allows easy interchanging between heat and smoke modes without having to purchase a new sensor. The sensitivity switch location is shown in Figure 3. L744-4 L946-5 Placed on the market by... - Page 4 Con guration Switch Settings The device is dispatched with con guration switches set as per Figure 6. Figure 6 Switch 1: Tamper = disabled Switch 2: Self sound = disabled Switches 3/4: Volume = high Tamper Disablement Feature The device has a tilt operated tamper switch for removal detection. This feature can be enabled or disabled using Switch 1.
- Page 5 Optional device locking It is possible to lock the sensor into the wireless base. Locking is made possible by removing the cut out section as shown in Figure 8. Cut out section (shaded area) Figure 8 To remove the sensor once locked, insert a at blade screw driver into the lock release slot (shown in Figure 9) and push the screw driver down into the device to release the mechanism.
