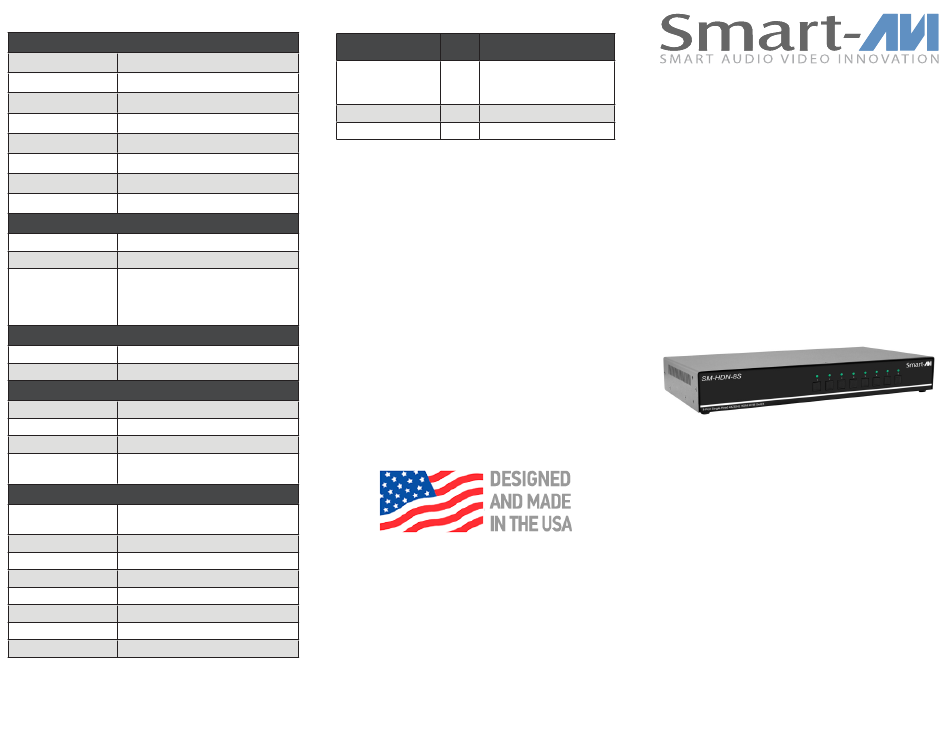

SMART-AVI SM-HDN-8S Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO
Format HDMI
Input Interface (8) HDMI 19-pin
Output Interface (1) HDMI 19-pin
Resolution Up to 4K (3840x2160 @30Hz)
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
Signal Type USB 2.0, 1.1 and 1.0 w/ internal hub
Input Interface (8) USB Type B (female)
(2) USB Type-A for KM
connection only
Output Interface
(2) USB Type-A for USB 2.0
transparent
AUDIO
Input Interface (8) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
CONTROL
Front Panel Buttons
RS-232 Via control @ 115200 bps
Hot Keys Via keyboard
PASS Technology and Mouse
Mouse
Gesture Switching
OTHER
External 100-240 VAC/12VDC3A
Power
@ 24W
Dimensions 17" W x 1.76" H x 8.69" D
Weight 6.3 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
Emulation Keyboard and mouse
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
8-Port HDMI KVM Switch
SM-HDN-8S 1 with Audio and USB 2.0
Support
PS12VD3A 1 PS12VD3A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
888.994.7427, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

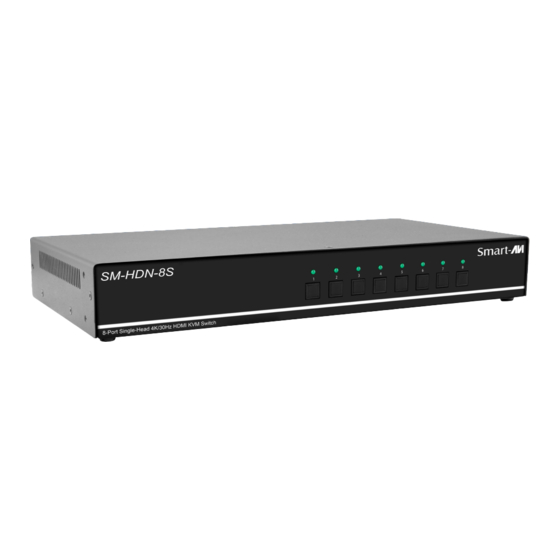

SM-HDN-8S
8-Port HDMI KVM Switch
with USB 2.0 Sharing
ACCESS AND CONTROL
UP TO 8 HDMI COMPUTERS
FROM A SINGLE USB
KEYBOARD/MOUSE
AND MONITOR
Quick Start Guide
