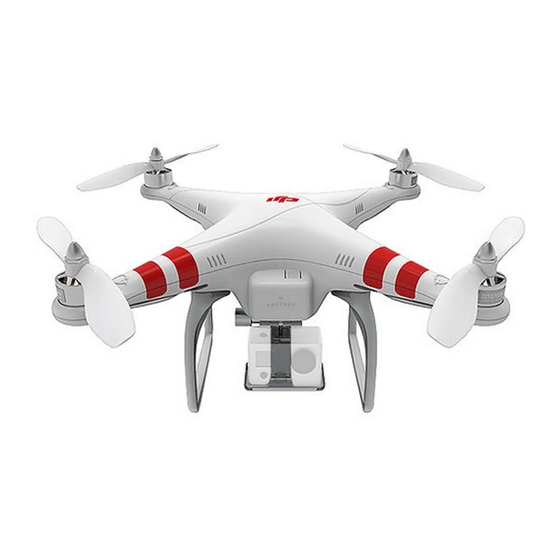

PHANTOM
Quick Start Manual
2013.01.15 Revised
Thank you for purchasing our product. Please visit the DJI website, PHANTOM section to confirm if the printed
manual is the latest one according to the manual version. If not, please download and refer to the latest manual.
Please read the entire manual strictly and follow these steps to use you product. The manual will get you ready to
fly by doing simple operations. You can get an advanced manual from DJI website to learn more about
PHANTOM, for example, configuring parameters by connecting to assistant software, changing the transmitter to
Mode1, matching frequency between the transmitter and the receiver, etc.
Make sure to use the NAZA-M assistant software of 2.0 version (or above 2.0) to carry out firmware upgrade and
parameter configuration. DO NOT use the NAZA-M assistant software bellow 2.0 version.
©2012
DJI Innovations. All Rights Reserved.
V1.2
www.dji-innovations.com
1 |
Content
CAUTIONS FOR PRODUCT USE .......................................................................................... 4
TRADEMARKS ........................................................................................................................ 4
IN THE BOX . ............................................................................................................................. 6
REQUIRED ITEMS .................................................................................................................. 6
INTRODUCTION ..................................................................................................................... 7
BEFORE FLYING . ..................................................................................................................... 9
FLIGHT TEST . ........................................................................................................................13
ENHANCED FAIL-SAFE . .......................................................................................................14
LOW-VOLTAGE ALERT . ........................................................................................................14
LED & SOUND INDICATOR DESCRIPTION ....................................................................15
