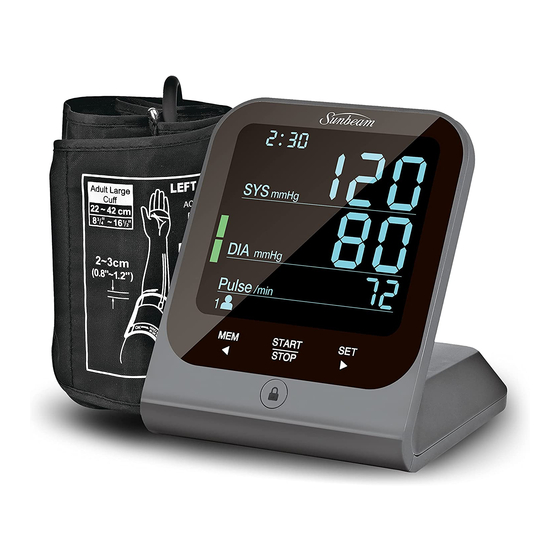

User Manual
Blood Pressure Monitor
Thank you very much for selecting TRANSTEK Blood Pressure Monitor
TMB-1583-BT.
Please do read the user manual carefully and thoroughtly so as to ensure
the safe usage of this product, and keep the manual well for further
reference in case you have problems.
version:1.0
TMB-1583-BT
Arm Type
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TRANSTEK TMB-1583-BT
Summary of Contents for TRANSTEK TMB-1583-BT
- Page 1 User Manual Blood Pressure Monitor TMB-1583-BT Arm Type Thank you very much for selecting TRANSTEK Blood Pressure Monitor Guangdong Transtek Medical Electronics Co., Ltd. Zone A, No.105 ,Dongli Road, Torch Development District, TMB-1583-BT. Zhongshan,528437,Guangdong,China Please do read the user manual carefully and thoroughtly so as to ensure the safe usage of this product, and keep the manual well for further reference in case you have problems.
-
Page 2: Table Of Contents
CATALOGUE CATALOGUE Table of Contents INTRODUCTION........................2 General Description Indications for Use Safety Information LCD Display Signal Monitor Components BEFORE YOU START......................8 The Choice of Power Supply Installing and Replacing the Batteries Measurement Principle Setting Date, Time, Measurement Unit and Clock Mode Select the User Pair-up the Blood Pressure Monitor with Your Device MEASUREMENT........................14... -
Page 3: Introduction
Symbol for “TYPE BF APPLIED GUIDE MUST BE READ” PARTS” two years of reliable service. Readings taken by the TMB-1583-BT are equivalent to those obtained by Symbol for “ENVIRONMENT Symbol for “MANUFACTURER” PROTECTION - Electrical waste a trained observer using the cuff and stethoscope auscultation method. - Page 4 INTRODUCTION INTRODUCTION CAUTION LCD display signal This device is intended only for adult use in homes. This device is intended for non-invasive measuring and monitoring of arterial blood pressure. It is not intended for use on extremities other than arm or for functions other than obtaining a blood pressure measurement.
-
Page 5: Monitor Components
DC POWER SOCKET AIR CONNECTOR PLUG 2.Cuff (Type BF applied part) 1.Blood Pressure Monitor (22cm~32cm or 22cm~42cm) (TMB-1583-BT) (Please use TRANSTEK authorized cuff. The size of the actual cuff please refer to the label on the attached cuff.) 3. 4×AAA alkaline batteries 4.User manual... -
Page 6: Before You Start
BEFORE YOU START BEFORE YOU START The Choice of Power Supply Measurement Principle 1.Battery powered mode: This product uses the Oscillometric Measuring method to detect blood pressure. Before 6VDC 4×AAA alkaline batteries every measurement, the unit establishes a “zero pressure” equivalent to the air pressure. 2.AC adaptor powered mode: Then it starts inflating the arm cuff, meanwhile, the unit detects pressure oscillations generated by beat-to-beat pulsatile, which is used to determine the systolic and diastolic... - Page 7 BEFORE YOU START BEFORE YOU START 3.When you get the right 6.Repeat steps 2 and 3 to set the [UNIT]. year, press “SET” button to set down and turn to next step to set the date format between “M/D” or “D/M”.
-
Page 8: Select The User
BEFORE YOU START BEFORE YOU START Pair-up the Blood Pressure Monitor Select the User with Your Device 1.When the monitor is off , press and hold the MEM button to enter user setting mode. The user ID will blink. 1.Turn on Bluetooth and the app. Make sure both are ON when pair-up is proceeding. 2.When the monitor is OFF, press and hold the START/STOP button to start pair-up. -
Page 9: Measurement
MEASUREMENT MEASUREMENT Tie the cuff Start the Measurement 1.When the monitor is off, press the “START/STOP” button to turn 1.Tie the cuff on your upper arm, on the monitor, and it will finish the whole measurement. then position the tube off-center (Take User 1 for example.) toward the inner side of arm in line with the little finger. - Page 10 MEASUREMENT DATA MEASUREMENT .This device will proceed Recall the Records to data transmission after measurement. 1. When the monitor is off, please press “MEM” button The Bluetooth symbol to show the average value of blinks on the LCD the latest three records. indicates data is (Take User 1 for example.) transmitting.
-
Page 11: Data Management
DATA MANAGEMENT SPECIAL FUNCTION About the Clock mode Delete the Records If you did not get the correct measurement, you can delete all If you set the clock mode on in the results by following steps below.(Take User 1 for example) setting mode, when you turn off the blood pressure monitor, the backlight of the LCD will turn off, the LCD will... -
Page 12: Information For User
INFORMATION FOR USER INFORMATION FOR USER Tips for Measurement Maintenance Measurements may be inaccurate if taken in the following In order to get the best performance, please follow the circumstances. instructions below. Avoid touching water, Put in a dry place and avoid the sunshine clean it with a dry cloth in case. -
Page 13: About Blood Pressure
ABOUT BLOOD PRESSURE ABOUT BLOOD PRESSURE Why does my blood pressure What are systolic pressure and diastolic pressure? fluctuate throughout the When ventricles contract and pump blood out of the Systolic Diastolic heart, the blood pressure reaches its maximum value day? blood discharging blood entering... -
Page 14: Troubleshooting
TROUBLESHOOTING SPECIFICATIONS This section includes a list of error messages and frequently Battery powered mode: asked questions for problems you may encounter with your blood 6VDC 4×AAA alkaline batteries pressure monitor. If the products not operating as you think it AC adaptor powered mode: Power supply should, check here before arranging for servicing. -
Page 15: Authorized Component
Part 1-2: General requirements for basic safety and compatibility essential performance - Collateral For more information about our products, please visit www.transtek.cn.you can get customer standard:Electromagnetic compatibility - Requirements service, usual problems and customer download, transtek will serve you anytime. -
Page 16: Fcc Statement
FCC STATEMENT EMC GUIDANCE FCC Statement EMC Guidance FCC ID: OU9TMB1583-B 1) This equipment needs to be installed and put into service in accordance This device complies with Part 15 of the FCC Rules. Operation is with the information provided in the user manual; subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any 2) Wireless communications equipment such as wireless home network...
