Pitco SG14R Specifications

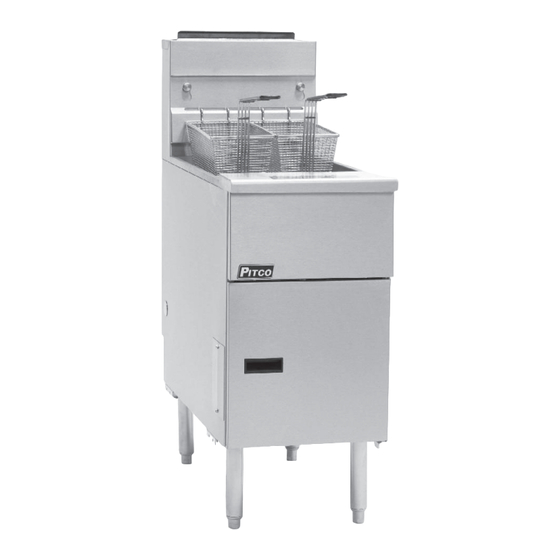

Model SG14R
Tube Fired Gas Fryer

STANDARD ACCESSORIES

Choice of basket options
Two nickel-plated, oblong, wire mesh baskets
One nickel-plated, square, wire mesh basket
One nickel-plated tube rack
One drain extension
One drain line clean-out rod
Fryer cleaner sample
Rear gas connection
Manual gas shutoff
1 " (3.2 cm) full port drain valve
1/4
Built-in integrated flue deflector
Removable basket hanger for easy cleaning
9" (22.9 cm) adjustable legs
Cabinet - stainless steel front, door, and sides
Tank - mild steel
AVAILABLE OPTIONS & ACCESSORIES
Stainless steel tank
Stainless steel back
9" (22.9 cm) adjustable casters
Triple baskets
Covers
Pitco Frialator, Inc., P.O. Box 501, Concord, NH 03302-0501 •1509 Route 3A, Bow NH 03304, USA
Phone (603) 225-6684 • Fax (603) 225-8472 • www.pitco.com
L10-128 Rev 03 (02/07)
Project __________________________
Item number _____________________
Quantity _________________________

STANDARD SPECIFICATIONS

CONSTRUCTION

Welded tank with an extra smooth peened finish ensures
easy cleaning.
Long-lasting, high-temperature alloy stainless steel heat
baffles are mounted in the heat exchanger tubes to provide
maximum heating and combustion efficiency.
Standing pilot light design provides a ready flame when heat
is required.
Stainless steel front, door, side, and splashback.
Heavy duty 3/16" (.48 cm) door hinge.

CONTROLS

Millivolt thermostat maintains selected temperature
automatically between 200°F (93°C) and 400°F (190°C-CE).
Integrated gas control valve acts as a manual and pilot valve,
automatic pilot valve, gas filter, pressure regulator, and
automatic main valve.
Gas control valve prevents gas flow to the main burner until
pilot is established and shuts off all gas flow automatically if
the pilot flame goes out.
Temperature limit switch safely shuts off all gas flow if the
fryer temperature exceeds the upper limit.
New Solstice burner/baffle design.***
-Increases cooking production.
-Lowers flue temperature.
-Improves working environment.
-Generates more production per BTU.
***Compared to previous models.

OPERATIONS

Front 1 (3.2 cm) full port drain for quick draining.
1/4"
9" (22.9 cm) clearance allows for ease of cleaning.
APPROVALS
CSA Certified
(AGA, CGA)
NSF Listed
MEA Approved
CE Certified
Australian Gas Assoc.
Certified (AuGA)
Patent Pending
