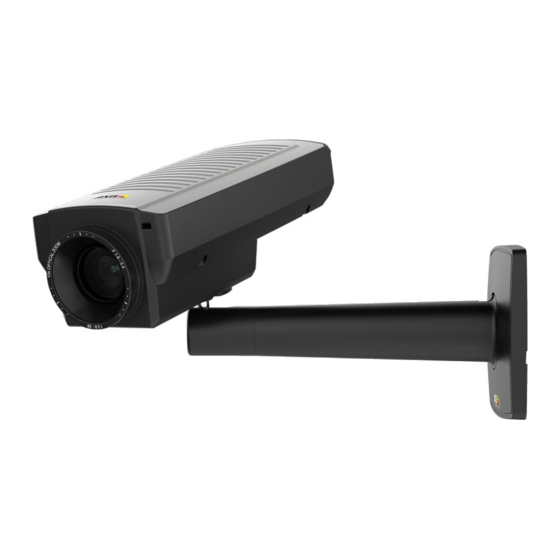

AXIS Q17 Network Camera Series AXIS Q1775 Network Camera AXIS Q1775–E Network Camera User Manual... -
Page 2: Table Of Contents
Housing Q1775-E ........ -
Page 3: System Overview
AXIS Q17 Network Camera Series System overview System overview... -
Page 4: Product Overview
Do not point the camera lens toward the sun or other high-intensity radiation sources because this could cause damage to the camera. Status LED 1/4” screw mount for wall/ceiling stand Power connector (blocked in AXIS Q1775-E) RS485/422 connector I/O connector Control button... -
Page 5: Housing Q1775-E
AXIS Q17 Network Camera Series Product overview 11 Audio out 12 CVBS button 13 Network connector (PoE) 14 Video out Y/Pb/Pr 15 Part number (P/N) & Serial number (S/N). The serial number may be required during the installation. 16 Microphone... -
Page 6: How To Access The Product
If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For information about how to discover and assign an IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at axis.com/support... - Page 7 AXIS Q17 Network Camera Series How to access the product The default root account has full privileges and should be reserved for administrative tasks. Always create a user account with limited privileges for daily use. This reduces the exposure of the administrative account.
-
Page 8: Setup
AXIS Q17 Network Camera Series Setup Setup About the product's built-in help You can access the built-in help through your product’s web page. The help provides more detailed information on the product’s features and their settings. Image quality How to reduce noise in low-light conditions... -
Page 9: Streaming And Storage
H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard. -
Page 10: Events
AXIS Q17 Network Camera Series Setup Find out more at axis.com/compression-formats How to reduce bandwidth and storage Important If you reduce the bandwidth it can result in less details in the picture. 1. Go to live view and select H.264. - Page 11 10. Click OK. How to record video when a PIR detector senses motion This example explains how to connect an Axis PIR detector to the camera, and set up the camera to start recording when the detector senses motion. Required hardware •...
-
Page 12: Applications
Applications About applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications To find the user manuals for Axis applications, go to axis.com Note •... -
Page 13: Troubleshooting
To find the latest firmware and the release notes, go to axis.com/support/firmware 1. Download the latest firmware file to your computer, available free of charge at axis.com/support/firmware 2. Log in to the product as an administrator. -
Page 14: Technical Issues, Clues And Solutions
Axis product. Check all cabling and reinstall the product. Possible IP address conflict The static IP address in the Axis product is used before the DHCP server sets a dynamic address. with another device on the... -
Page 15: Performance Considerations
Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. -
Page 16: Specifications
AXIS Q17 Network Camera Series Specifications Specifications To find the latest version of the product’s datasheet, go to axis.com > [product] > Support & Documentation. LED indicators Note • The Status LED can be configured to flash while an event is active. -
Page 17: Buttons
The status LED and buzzer signal (see page 16) assist leveling of the camera. The camera is level when the buzzer beeps continuously. • Connecting to an AXIS Video Hosting System service. See . To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •... - Page 18 AXIS Q17 Network Camera Series Specifications 4-pin terminal block Function Notes Specifications DC ground 0 V DC 0 V DC (-) DC output Can be used to power auxiliary equipment. 12 V DC Note: This pin can only be used as power out.
- Page 19 AXIS Q17 Network Camera Series Specifications RS485/RS422 connector Two 2-pin terminal blocks for RS485/RS422 serial interface used to control auxiliary equipment such as pan-tilt devices. The serial port can be configured to support: • Two-wire RS485 half duplex • Four-wire RS485 full duplex •...
