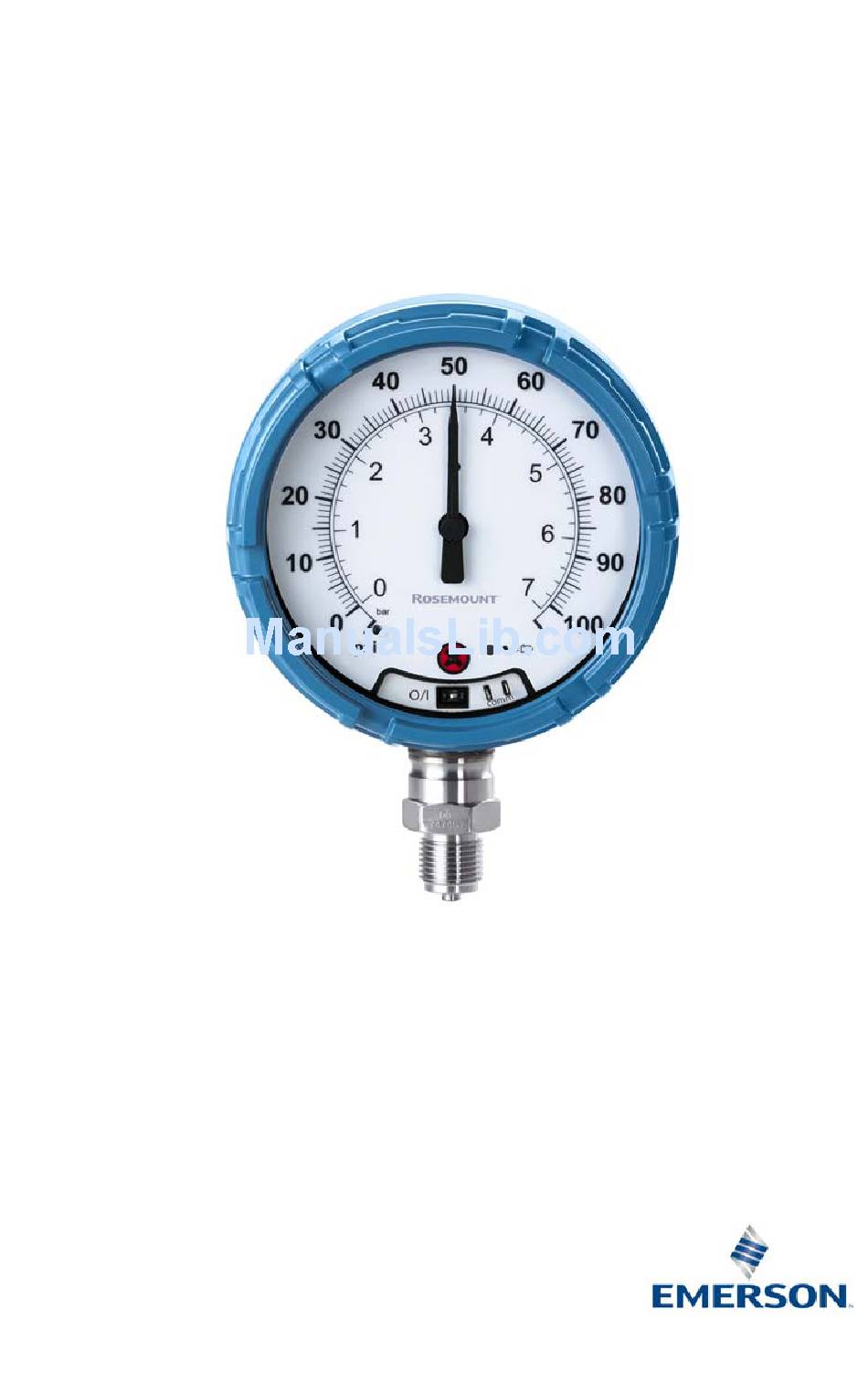

- Page 1 Quick Start Guide 00825-0100-4045, Rev AE June 2017 ™ Rosemount Wireless Pressure Gauge ® with WirelessHART Protocol...
-
Page 2: Table Of Contents
June 2017 Quick Start Guide NOTICE This guide provides basic guidelines for Rosemount Wireless Pressure Gauges. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting or intrinsically safe (I.S.) installations. Refer to the Rosemount Wireless Pressure Gauge Reference Manual for more instruction. -
Page 3: What's In The Box
June 2017 What’s in the box Wireless Pressure Gauge Quick Start Guide The following options are also available and will ship with the Rosemount Wireless Pressure Gauge if ordered. Rosemount 306 Integral Manifold (Model Code S5) B4 Bracket (Model Code B4) - Page 4 June 2017 Quick Start Guide 1.0 Seal and protect threads 2.0 Mount device Note Use wrench on flats, not on housing. 2.1 Mounting orientation The low side pressure port (atmospheric reference) on the process pressure gauge is located in the neck of the device behind the housing. The vent path is between the housing and sensor (see Figure Keep the vent path free of any obstruction, including but not limited to paint, dust, and lubrication by...
-
Page 5: Connect To Device
Quick Start Guide June 2017 3.0 Turn on device Check to ensure the device and battery are working properly. 1. Twist the cover counterclockwise to remove it. 2. Slide the OFF/ON switch to the ON position to initiate the power sequence. Note During the power sequence, the dial tests full range of motion and LED flashes amber. -
Page 6: Eliminate Mounting Effects
Devices are factory-calibrated. Once installed, it is recommended to perform this step to eliminate potential error caused by mounting position or static pressure. Instructions for using a Field Communicator are listed below. Note See the Rosemount Wireless Pressure Gauge Reference Manual for the following: ... -
Page 7: Troubleshooting
Quick Start Guide June 2017 7.0 Troubleshooting This section provides information for basic troubleshooting. See the reference manual (document number 00809-0100-4045) for advanced troubleshooting . 7.1 Device status The flashing LED indicates device status using the colors descibed in Table Table 1. -
Page 8: Product Certifications
A copy of the EC Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EC Declaration of Conformity can be found at EmersonProcess.com\Rosemount. 8.2 Telecommunication compliance All wireless devices require certification to ensure that they adhere to regulations regarding the use of the RF spectrum. - Page 9 Markings: IS CL I, DIV 1, GP A, B, C, D T4; Class 1, Zone 0, AEx ia IIC T4 Ga; T4 (-40 °C ≤ Ta ≤ +70 °C) when installed per Rosemount drawing 00G45-1020; Type 4X; IP66/67; Special Conditions for Safe Use (X): 1.
- Page 10 4.7pF. This must be considered only when the WPG is integrated into a system where the process connection is not grounded. 3. Do not change the battery when an explosive atmosphere is present. 4. Only replace battery with Rosemount Part No. 00G45-9000-0001. 8.9 International I7 IECEx Intrinsic Safety Certificate: IECEx BAS 16.0012X...
-
Page 11: Eu Declaration Of Conformity
Quick Start Guide June 2017 Figure 2. Rosemount Wireless Pressure Gauge Declaration of Conformity EU Declaration of Conformity No: RMD 1108 Rev. C Rosemount, Inc. 8200 Market Boulevard Chanhassen, MN 55317-9685 declare under our sole responsibility that the product, Model WPG: Wireless Pressure Gauge manufactured by, Rosemount, Inc. - Page 12 June 2017 Quick Start Guide EU Declaration of Conformity No: RMD 1108 Rev. C EMC Directive (2014/30/EU) Model WPG Wireless Pressure Gauge Harmonized Standards: EN 61326-1: 2013 Radio Equipment Directive (RED) (2014/53/EU) Model WPG Wireless Pressure Gauge Harmonized Standards: EN 300 328 V2.1.1 EN 301 489-1 V2.2.0...
- Page 13 Quick Start Guide June 2017 EU Declaration of Conformity No: RMD 1108 Rev. C ATEX Notified Bodies Baseefa [Notified Body Number: 1180] Rockhead Business Park Staden Lane Buxton, Derbyshire SK17 9RZ United Kingdom ATEX Notified Body for Quality Assurance Baseefa [Notified Body Number: 1180] Rockhead Business Park Staden Lane Buxton, Derbyshire...
- Page 14 June 2017 Quick Start Guide Rosemount WPG China RoHS List of Rosemount WPG Parts with China RoHS Concentration above MCVs / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6)
- Page 15 Quick Start Guide June 2017...
- Page 16 The Emerson logo is a trademark and service mark of Emerson Emerson FZE P.O. Box 17033 Electric Co. Jebel Ali Free Zone - South 2 Rosemount and Rosemount logotype are trademarks of Emerson. Dubai, United Arab Emirates HART and WirelessHART are registered trademarks of the +971 4 8118100 FieldComm Group.
