N3
Satellite
INSTALLATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N3 Satellite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ketra N3 Satellite

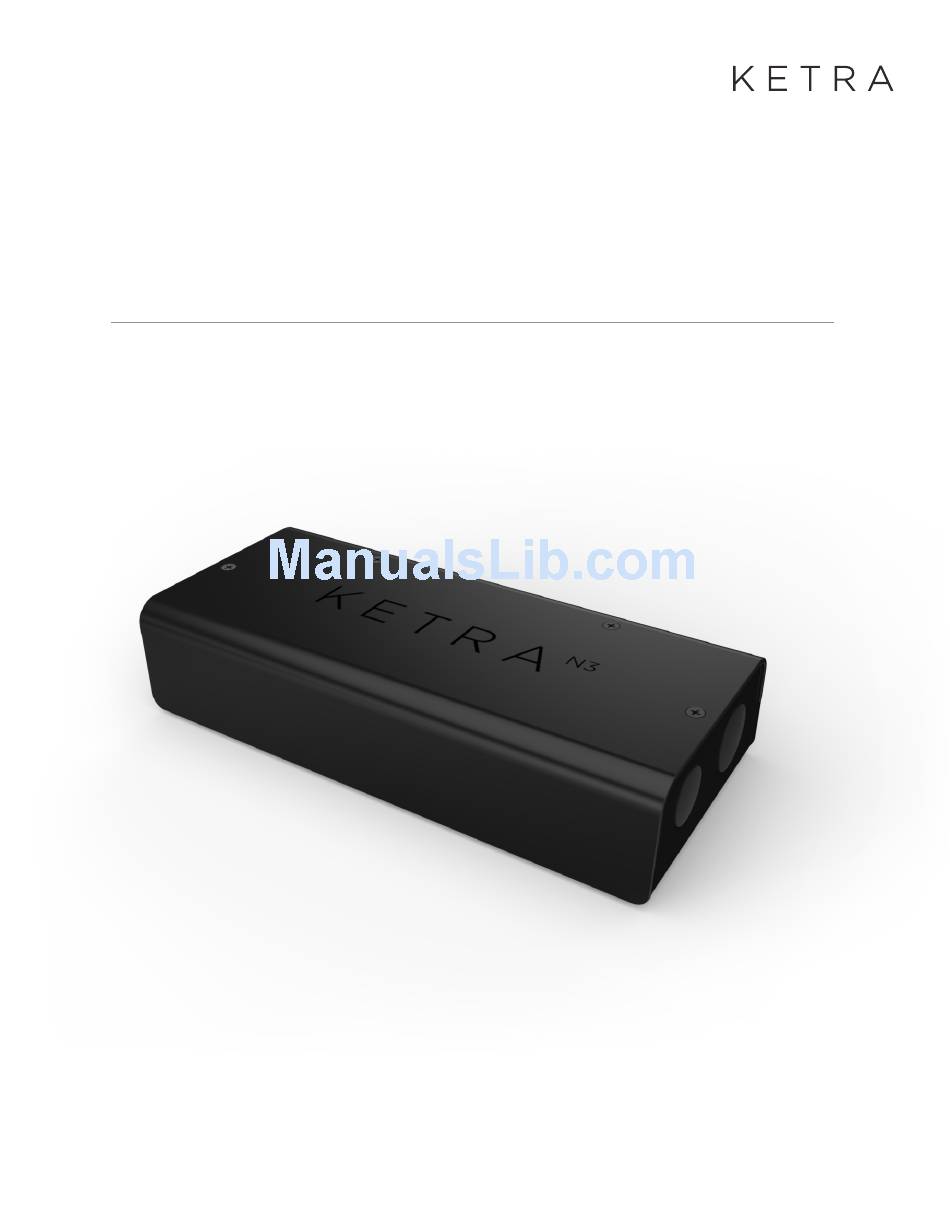

  • Page 1 Satellite INSTALLATION GUIDE...
  • Page 2 WAR N I N G Shock Hazard. May result in serious injury or death. Turn power OFF at circuit breaker or remove fuse. Damage to this product caused by wiring with power on voids the warranty. Due to risk of electric shock, a licensed electrician should install this luminaire in strict compliance with the National Electrical Code and any state or local code which may apply.
  • Page 3: Table Of Contents

    CONTENTS Product Overview ............... 4 Components/ Specifications .
  • Page 4: Product Overview

    PRODUCT OVERVIEW Ketra’s N3 satellite provides several vital system functions: control of luminaires, integration of third party control and lighting products, and on-board memory and astronomical time clock functionality. The N3’s wireless connectivity enables its installation in multiple, convenient locations. To simplify the integration of third party control systems, it includes multiple inputs and outputs.
  • Page 5: Components/ Specifications

    COMPONENTS/ SPECIFICATIONS N3 SATELLITE UNIT SPECIFICATIONS ENVIRONMENTAL ENCLOSURE/ CONNECTIONS Operating Temperature -20 to 50˚C Connections (Class 2) Storage Temperature -20 - 80°C AC Power In (3 Conductor 10-16AWG (Line Neutral, 120-277VAC 60Hz) Ground) Humidity 0 - 95%, Non-condensing AC Power Out (4 Line )
  • Page 6: Pre-Installation

    PRE-INSTALLATION Warning: Turn OFF electrical power to all circuit breakers feeding into the panel before installing or servicing this product. Warning: Improper use or installation can cause SERIOUS INJURY, DEATH, OR LOSS/DAMAGE OF PROPERTY. This device should be protected by a 20amp circuit breaker. This device includes a two-way radio.
  • Page 7: Pre-Installation Instructions

    • Avoid metal obstructions. • Walls may impact communication depending upon construction method and materials. • For complete design specification details, please refer to the Ketra System Specification Guide. G2 Port Specifications The G2 product has a 50 ft (15.24m) leader cable. Product should be within that range for functional control.
  • Page 8: Installation

    INSTALLATION BEFORE PHYSICAL MOUNTING Note the serial number and product location; this information will be useful later in the installation. (The serial number can be found on the top of the control board cover - see fig. Status Monitor Activity DALI TRIAC Power...
  • Page 9: Physical Mounting

    INSTALLATION PHYSICAL MOUNTING Remove the lid. (Note that screws are captive and need not be fully removed from lid - fig. Remove plastic plugs from knock-outs as required. (see fig. Mount box to surface with appropriate fasteners. (Note: inner diameter of hole is 4.76mm (3/16) - see fig.
  • Page 10: Installation

    INSTALLATION INSTALLATION WARNING: DO NOT CONNECT AC SUPPLY TO TERMINALS MARKED “TRIAC CONTROL.” Triac Control feature is not supported. STEP 1 Connect AC supply. I N S TA LL ATI O N Use conduit or NM type cable as appropriate. Note: Acceptable wire is both solid core and stranded.
  • Page 11 INSTALLATION I N S TA LL ATI O N STEP 1 Connect power and signal output to G2 Linear luminaires. Note: Details on G2 linear connections available in G2 Installation Guide. Open appropriate terminals by flipping orange levers into UP position. (see fig.
  • Page 12: Overview Of Third Party Controls

    INSTALLATION OVERVIEW OF THIRD PARTY CONTROLS The class 2 control input/output compartment enables interface with numerous devices. Choose appropriate terminals based upon your application. Sections include: Analog I/O This section contains four ports. Each port can be configured independently to be any of the following control types.
  • Page 13 Optional If data is present at any control port, appropriate LED will indicate status. Disconnect power and install cover. Restore power and configure device using Ketra Design Studio Software. For software download and updates, visit ketra.com. PAGE 13 770-000014-01 r02...
  • Page 14: Warranty/ Tech Support

    WARRANTY/ TECH SUPPORT Limited warranty terms can be found at: www.ketra.com/warranty For questions and technical support please contact: (512) 872 4357 support@ketra.com PAGE 14 770-000014-01 r02 N3 INSTALLATION GUIDE...
  • Page 15 PAGE 15 770-000014-01 r02 N3 INSTALLATION GUIDE...
  • Page 16 3815 S. Capital of Texas Highway Suite 100 ketra.com Austin, TX 78704 (512) 872-4357...
