- Page 1 SAT E L L I T E Installation Guide...
- Page 2 Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: • This device may not cause interference. • This device must accept any interference, including interference that may cause undesired operation of the device. 770-000014-01 r09 2 | N3 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
-
Page 3: Table Of Contents
Contents Product Overview Included Components/Specs Specifications Pre-Installation Pre-Installation Instructions Installation Diagnostic Colors (Requires Emitter) Physical Mounting Installation Overview of Third-Party Controls Warranty & Tech Support 770-000014-01 r09 3 | N3 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved... -
Page 4: Product Overview

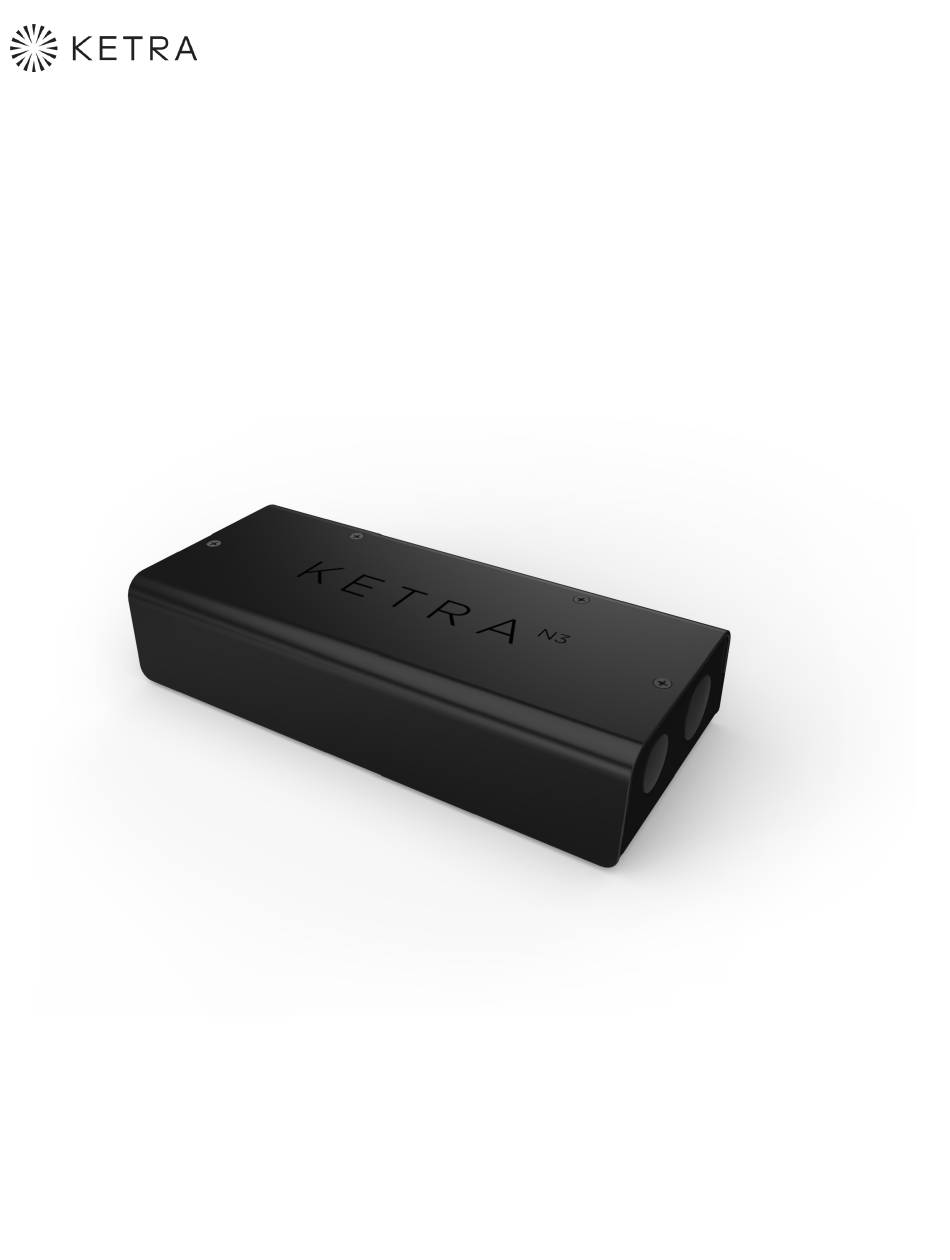

Product Overview Ketra’s N3 satellite provides several vital system functions: control of luminaires, integration of third party control and lighting products, and on-board memory and astronomical time clock functionality. The N3’s wireless connectivity enables its installation in multiple, convenient locations. -
Page 5: Included Components/Specs
2.4 in (60 mm) 1.13 in (28.7 mm) 4 x 29 (0.75 in trade size) 2.76 in (70mm) 11.05 in (280.7 mm) 0.1 in (2 mm) 0.2 in (5 mm) 770-000014-01 r09 5 | N3 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved... -
Page 6: Pre-Installation
MAINTAIN PHYSICAL SEPARATION BOTH INSIDE AND OUTSIDE OF DEVICE IN ACCORDANCE WITH ELECTRICAL CODES. This device must be installed by a licensed electrician in accordance with all national and local codes. 770-000014-01 r09 6 | N3 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved... -
Page 7: Pre-Installation Instructions
Walls may impact communication depending upon construction method and materials. • For complete design specification details, please refer to the Ketra System Specification Guide. C O N T R O L C O N N EC T I O N S Distance limitations for each control topology should be taken into consideration. -
Page 8: Installation
Status Monitor Activity DALIT RIAC Power DC Out Analog I/O DMX OutDM X In DALI 6 in (15.24 cm) fig. 3 * Contact Ketra for thicker ceiling types. 770-000014-01 r09 8 | N3 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved... -
Page 9: Physical Mounting
Mount box to surface with appropriate fasteners. (Note: inner diameter of hole is 3/16 in (4.76 mm) - see fig. 6.) Screws Main Cover Conduit Plugs fig. 5 fig. 4 Mounting Holes 3/16 in (4.76 mm) hole fig. 6 770-000014-01 r09 9 | N3 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved... -
Page 10: Installation
Note: Conductor colors are not always as listed. These colors vary depending on your wiring setup. To ensure the correct wiring, consult a professional electrician. fig. 7 fig. 8 continued on next page 770-000014-01 r09 10 | N3 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved... - Page 11 White conductor goes to “N” terminal (White). Green conductor goes to “ ” terminal (Green). Red/Purple conductor goes to the “S” terminal (Purple). fig. 9 fig. 10 continued on next page 770-000014-01 r09 11 | N3 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved...
-
Page 12: Overview Of Third-Party Controls
Green “Power” LED will illuminate indicating successful installation and product functionality. Optional If data is present at any control port, appropriate LED will indicate status. Disconnect power and install cover. Restore power and configure device using Ketra Design Studio Software. For software download and updates, visit www.ketra.com. 770-000014-01 r09 12 | N3 INSTALLATION GUIDE... -
Page 13: Warranty & Tech Support
For questions and technical support please contact: (844) 588-6445 ketrasupport@lutron.com Ketra and KetraNET are trademarks or registered trademarks of Lutron Ketra LLC, in the US and/ or other countries. 770-000014-01 r09 13 | N3 INSTALLATION GUIDE © 2019 Ketra, Inc. All rights reserved... - Page 14 6231 E. Stassney Ln. ketra.com Bldg. 13, Suite 400 512.872.4349 Austin, TX 78744 770-000014-01 r09...
